vacuum freeze dryer for dryer machine china

FOB Reference Price:Get Latest Price
US $1,700-5,000 / Sets | 1 Set/Sets freeze dryer/dryer machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Vacuum Drying Equipment
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
TOPTION
Model Number:
TOPT-10A
Voltage:
220V
Power(W):
600W
Dimension(L*W*H):
425*615*(370+445) mm
Weight:
40Kg
Certification:
ISO9001-2008
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
NAME:
Laboratory vacuum freeze dryer
Dimensions:
425*615*(370+445) mm
Condensing temperature:
<-55 ℃
Vacuum degree:
<10Pa
Freeze-dried area:
0.03 square meters
Capacity of material tray:
1.2L
Water catching ability:
3-4kg/24h
Material plate:
200mm
Shelf layer:
4
Power Requirements:
220V 50Hz 600W
Supply Ability
Supply Ability:
3000 Set/Sets per Year Vacuum Freeze Drying Equipment
Packaging & Delivery
Packaging Details
Standard exported packaging. industrial dehydrator/freeze dryer
Port
Zhejiang /Tianjin /Shanghai port
Lead Time :
5 daye after payment for industrial dehydrator/freeze dryer

  vacuum freeze dryer for dryer machine china

vacuum freeze dryer for dryer machine china   , suit for freeze  drying experiment in laboratory and a small amount production.

The series include: common type, capping type, branch manifold common type, branch

manifold capping type.

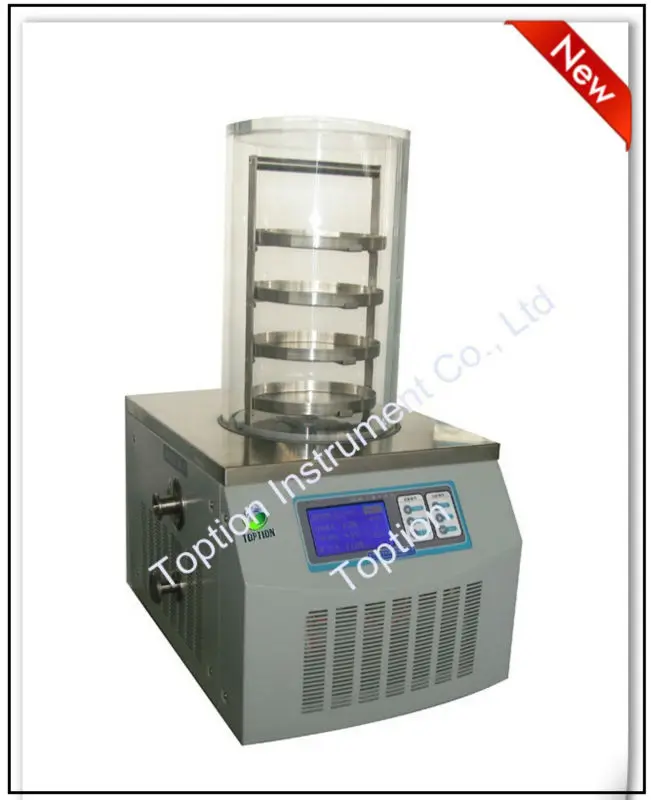

 TOPT-10A (1)_.jpg

vacuum freeze dryer for dryer machine china  :

Name and Model

TOPT -10A Vacuum Freeze Dryer

Freeze Drying Area

0.03 square meters/layer

Cold trap temperature

-55, (optional -80) °C

Vacuum

<10 Pa

Water-capture capacity

3~4 Kg/24h

Material tray

200 mm

Tray number

4 (optional 6) layer

Whole power

600 W

Main frame size

425*615*(370+445) mm

Main frame weight

40 Kg

Liquid capacity

1.2 L

Characteristics of vacuum freeze dryer for dryer machine china

1. Green environment-friendly product to conform to international standard

2. LCD display, Chinese, and English interface, drying curve being displayed;
3. the mouth of cold trap is big, no internal coil, having the function of precooling the samples
4. imported compressor with big capacity of refrigerating, and noise small;

5. Cold trap and Operation panel area all corrosion-resistant stainless steel, bright and

6. The organic glass cover can help you observe the whole freeze drying process.
7. Stainless steel sample shelf, the space of common sample tray can be adjusted;
8. Electric defrost function

  TOPT-10A   _.jpg

 Material Tray of   vacuum freeze dryer for dryer machine china

Common type: specially designed stainless steel sample shelf, the space of common sample

tray can be adjusted, the amount of layers can be designed freely; the diameter of material tray

is 200mm,amouting to 4 layer, the amount of the material on it is about 1000mL(the depth of the material 10 mm) .

Time of freeze drying: when the depth of material under 10mm, the time of drying in general is 24 h

or so.


TOPTION wholeheartedly provides highquality products and reliable aftersales service for research

 institutions, universities and colleges, drug testing, chemical industry, metallurgy, biochemistry and

key food processing project. We sincerely service for you forever!
