Top Quality Lab Bulk Samples Vacuum Freeze Dryer

FOB Reference Price:Get Latest Price
US $1,900-5,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Vacuum Drying Equipment
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
TOPTION
Model Number:
TOPT-10A
Voltage:
220V
Power(W):
970w
Dimension(L*W*H):
425*615*(370+445) mm
Weight:
90Kg
Certification:
ISO9001
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Name and Model:
Top Qualiaty Lab Bulk Samples Vavuum Freeze Dryer
Freeze Drying Area:
0.12 m2
Cold trap temperature:
-55 degree
Vacuum:
<10 Pa
Water-capture capacity:
3~4 Kg/24h
Material tray:
diameter 200 mm
Tray number:
4 (optional 6) layer
Whole power:
970 W
Main frame size:
425*615*(370+445) mm
Liquid capacity:
1.2 L
Supply Ability
Supply Ability:
3000 Set/Sets per Year
Packaging & Delivery
Packaging Details
1. Wooden packing as export for Top Qualiaty Lab Bulk Samples Vavuum Freeze Dryer
2. Base on your requests
Port
Zhejiang / Shanghai / Tianjin Port
Lead Time :
within 7 working days for Lab Bulk Samples Vavuum Freeze Dryer

                                      Top Qualiaty Lab Bulk Samples Vavuum Freeze DryerTOPT-10A  Lyophilizer Parameters.jpgTOPT-10A Vacuum Freeze Dryer 0086-13891867045.jpgOur advantages.jpg

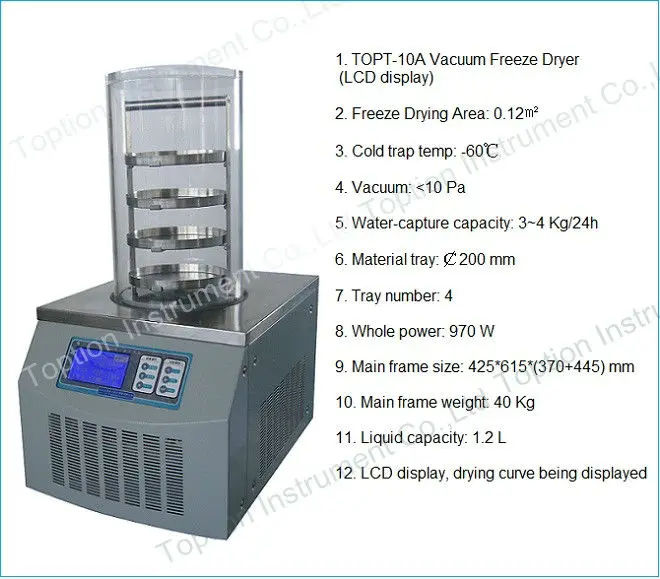

TOPT-10A Top Qualiaty Lab Bulk Samples Vavuum Freeze Dryer  Details:

1. TOPT -10A Vacuum Freeze Dryer (LCD display)

2. Freeze Drying Area: 0.1m2

3. Cold trap temp: -60°C

4. Vacuum: <10 Pa

5. Water-capture capacity: 3~4 Kg/24h

6. Material tray: ¢200 mm

7. Tray number: 4

8. Whole power: 970 W

9. Main frame size: 425*615*(370+445) mm

10. Main frame weight: 40 Kg

11. Liquid capacity: 1.2 L

12. LCD display, drying curve being displayed

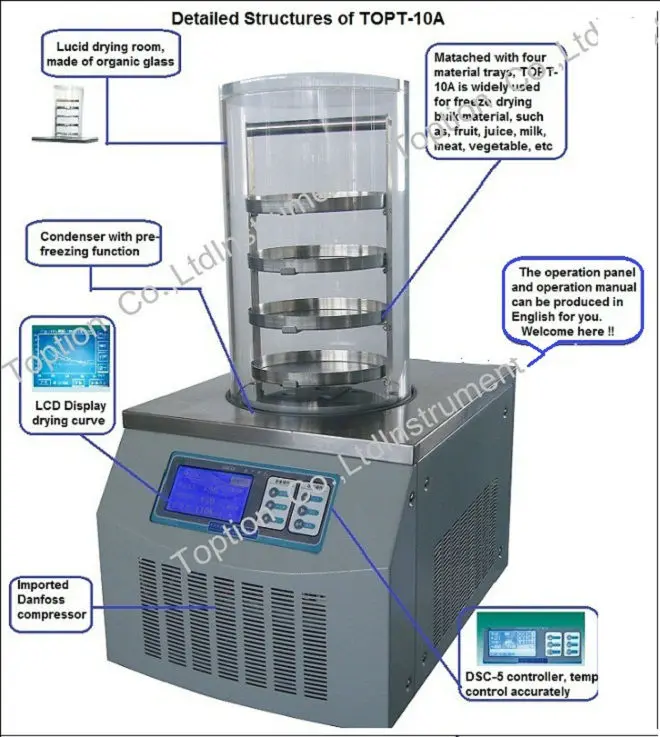

Characteristics of Top Qualiaty Lab Bulk Samples Vavuum Freeze Dryer :

1. Green environment-friendly product to conform to international standard

2. LCD display, Chinese, and English interface, drying curve being displayed;
3. the mouth of cold trap is big, no internal coil, having the function of precooling the samples
4. imported compressor with big capacity of refrigerating, and noise small;

5. Cold trap and Operation panel area all corrosion-resistant stainless steel, bright and

6. The organic glass cover can help you observe the whole freeze drying process.
7. Stainless steel sample shelf, the space of common sample tray can be adjusted;
8. Electric defrost function





Material Tray:

Common type: specially designed stainless steel sample shelf, the space of common sample tray can be adjusted, the amount of layers can be designed freely; the diameter of material tray is 200mm, amouting to 4 layer, the amount of the material on it is about 1000mL(the depth of the material 10 mm) .

Time of freeze-drying:when the depth of material under 10mm, the time of drying in general is 24 h or so.

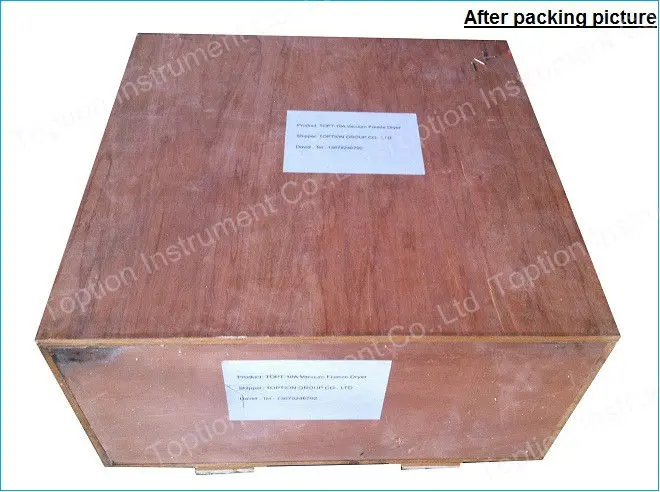

Packing of TOPTION Freeze Dryer:

1. Standard export wooden packing for safe delivery

2. Base on your requests

Application of Lyophilizer.jpgmaterial tray.jpgplastic wrapped lyophilizer.jpgSafe packing of lyophilizer.jpgsafe wooden packing for delivery .jpg
