Hot Vacuum Freeze Dryer TOPT-10B

FOB Reference Price:Get Latest Price
US $1,700-5,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Quick Details
Vacuum Drying Equipment
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
Model Number:
425*615*(370+445) mm
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Name and Model:
Hot Vacuum Freeze Dryer TOPT-10B
Freeze Drying Area:
0.08 m2
Cold trap temperature:
-60 degree
<10 Pa
Water-capture capacity:
3~4 Kg/24h
Material tray:
diameter 180 mm
Tray number:
3 layer
Whole power:
970 W
Main frame size:
425*615*(370+445) mm
Liquid capacity:
0.9 L
Supply Ability
Supply Ability:
3000 Set/Sets per Year
Packaging & Delivery
Packaging Details
1. Exported wooden packing for safe delivery for 2013 Hot Vacuum Freeze Dryer TOPT-10B
2. Base on your requests
Zhejiang / Shanghai / Tianjin Port
Lead Time :
within 7 working days

                                                 2013 Hot Vacuum Freeze Dryer TOPT-10B

TOPT-10B Gland Type Lyophiilzer.jpgTOPT-10B details of Lyophilizer.jpgOur advantages.jpgpenicilline bottles.jpg

material tray.jpg

2013 Hot Vacuum Freeze Dryer TOPT-10B Details:

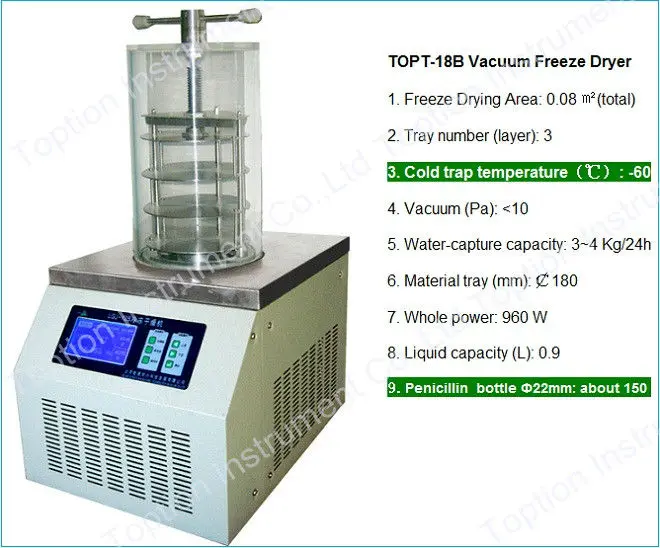

1. TOPT -10B Vacuum Freeze Dryer (LCD display)

2. Freeze Drying Area: 0.08m2

3. Cold trap temp: -60°C

4. Vacuum: <10 Pa

5. Water-capture capacity: 3~4 Kg/24h

6. Material tray: ¢180 mm

7. Tray number: 3

8. Whole power: 970 W

9. Main frame size: 425*615*(370+445) mm

10. Main frame weight: 40 Kg

11. Liquid capacity: 0.9 L

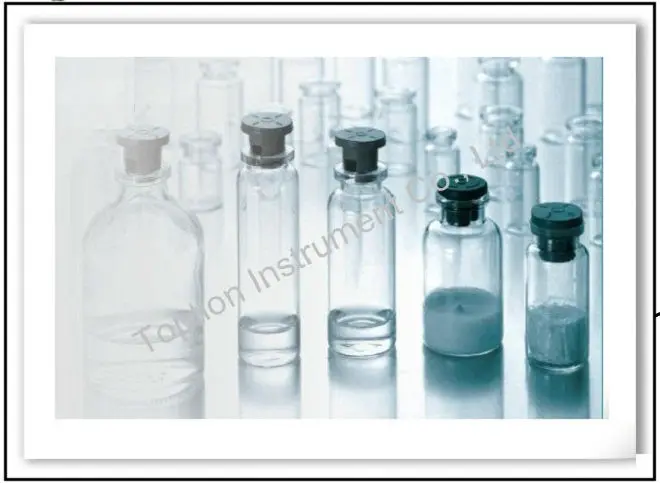

12. Penicillin bottles ¢ 22mm: about 150 pcs (total)

13. LCD display, drying curve being displayed

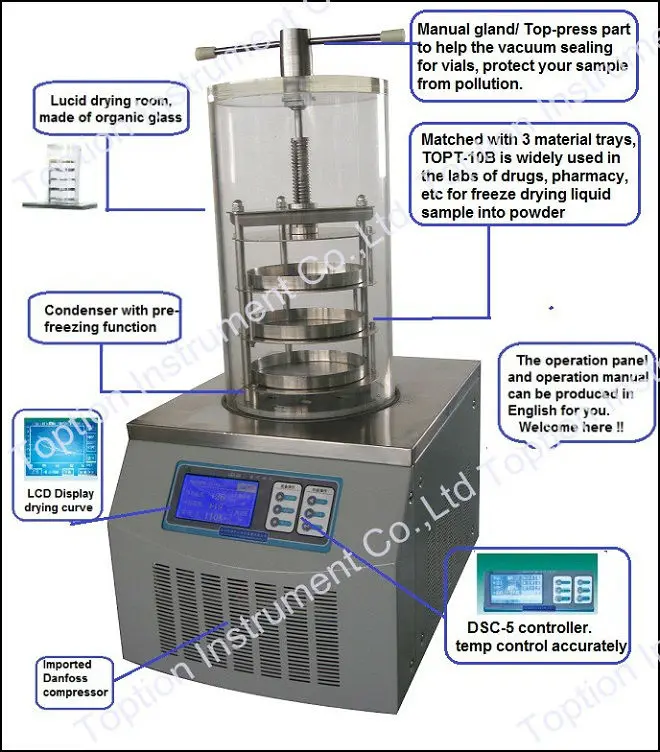

Characteristics of 2013 Hot Vacuum Freeze Dryer TOPT-10B:

1. Green environment-friendly product to conform to international standard

2. LCD display, Chinese, and English interface, drying curve being displayed;
3. the mouth of cold trap is big, no internal coil, having the function of precooling the samples
4. imported compressor with big capacity of refrigerating, and noise small;

5. Cold trap and Operation panel area all corrosion-resistant stainless steel, bright and

6. The organic glass cover can help you observe the whole freeze drying process.
7. Stainless steel sample shelf, the space of common sample tray can be adjusted;
8. Electric defrost function

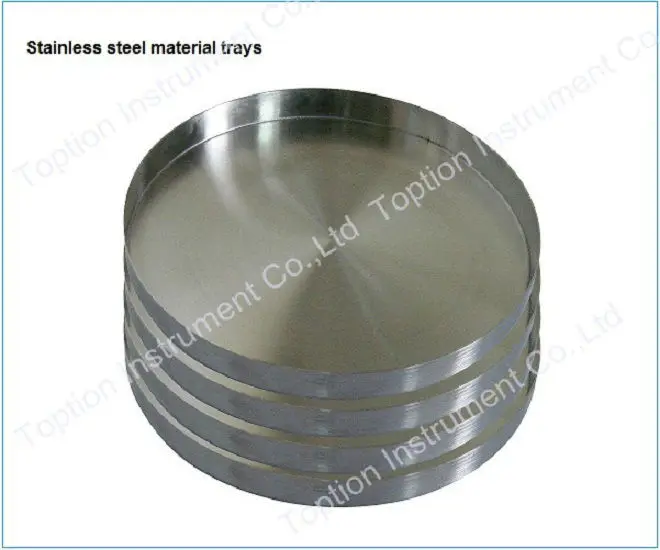

Material Tray:

Top-press: diameter of material-dry tray is diameter 180mm, three layers; material thickness 10mm, or placed 135 bottles with diameter of 22mm.

Freeze dry time: about 24h (material thickness 10 mm)

Time of freeze-drying:when the depth of material under 10mm, the time of drying in general is 24 h or so.

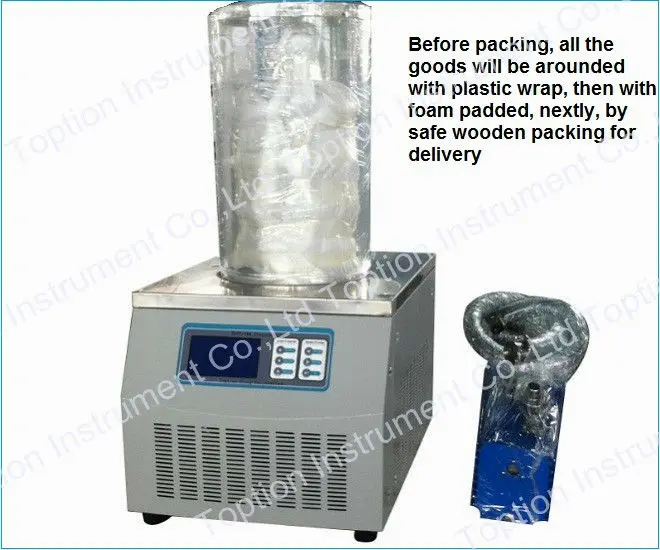

Packing of TOPTION Freeze Dryer:

1. Standard export wooden packing for safe delivery

2. Base on your requests

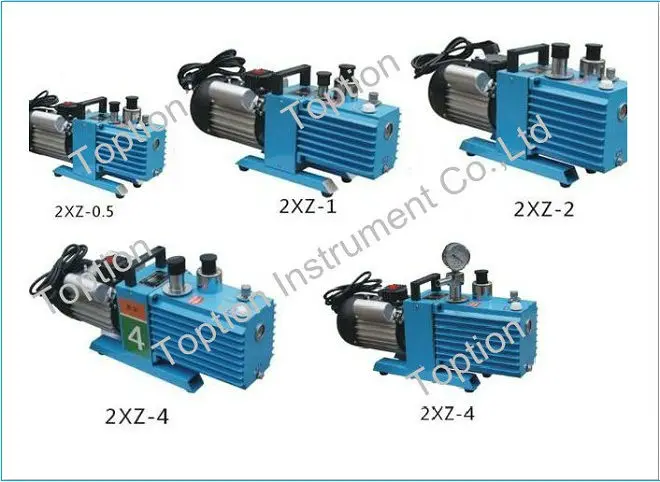

plastic wrapped lyophilizer.jpgRotary Vane Vacuum Pump.jpgSafe packing of lyophilizer.jpgsafe wooden packing for delivery .jpg
