80l jacket glass reactor /biodiesel reactor

FOB Reference Price:Get Latest Price
US $1-300 / Pieces | 1 Piece/Pieces auto-control 80l reactor (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Automatic Grade:
Automatic
Type:
Reaction Kettle
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
TOPTION
Model Number:
TOPT-30L
Voltage:
220V 50HZ
Power(W):
180W
Dimension(L*W*H):
315*360mm
Weight:
58 KG
Certification:
ISO9001;CE
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
auto-control 80l reactor
Other name:
high quality auto-control 80l reactor
Model:
TOPT-30L
Speed:
10-680(r/min)
Volume(L):
30L
Motor power(W):
180W
Shell Material:
High quality stainless steel
Advantages:
Good sealing
Application:
Labs research
Service:
Customized
Supply Ability
Supply Ability:
2500 Piece/Pieces per Year auto-control 80l reactor
Packaging & Delivery
Packaging Details
auto-control 80l reactor packing:standard packing as export requests
Port
Zhejiang /Shanghai /Tianjin Port
Lead Time :
within 7 working days

Fashion high quality auto-control 80l reactor



1. Volume:1L 2L 3L 5L 10L 20L 30L 50L 80L 100L 150L 200L

2. Reacting tem:-80~300

3. GG17, SS,PTFE sealing,TOPTION Brand

4. University brands designated

5. Explosion-prood device is optional

6. Ac motor,brushless,no sparkle

7. Constant rotationg speed

8. Reflow and distillation system

9.chemical laboratory use

10.reaction mixing vessel



auto-control 80l reactor description

Double glass reactor main sealing parts pure PTFE material, guarantee absolute vacuum system.
Double glass reactor double glass design, inner into reaction menstruum do stirring reaction, interlayer can pass different cold sources (cryoprotectants, hot water or hot oil) do cycle heating or cooling reaction. Setting thermostat conditions, in confined glass reactor, can use require atmospheric or negative pressure conditions conducted stirring response and do reaction solution reflux and distillation is modern Fine Chemical Factory, biopharmaceuticals and new materials synthesized ideal test production equipment.



auto-control 80l reactor Key Features

1. Double glass reactor using VVVF, AC Induction Motor. Speed constant, no brush, no sparks, security staTOPTe, continuous working.
2. Complete glass reactor adopts GG17 high borosilicate glass production good chemical, physical properties.
3. Glass interlayer Interface communication on hot oil through cycle do Heating Reaction, Tung on cryoprotectants can be hypothermia reaction.
4. Can normal temperature reaction, pass last tap namely quickly will reflect heat away.
5. Decentralization material mouth with flange mouth and PTFE valve, container no dead corner detachaTOPTe easy solid materials outfeed.
6. 5 reactor lid, large mouth design easy clean standard mouth socket selectaTOP Te assem TOPT reflux, distillation synthesis device





auto-control 80l reactor Technical parameters

type



volume

(L)

Motor power

(W)

Speed

(r/min)



Stirring torque(1300r/min)

Inside/outside tube diameter

(mm)

Reactor vessel cover relevant opening size

center

left

right

later

before

TOPT-150L

150

370

10-680



28000g.cm

600*550

50#

40#

34#

34#

29#

TOPT-100L

100

250

22000g.cm

460*500

50#

40#

34#

34#

29#

TOPT-80L

80

250

22000g.cm

460*500

50#

40#

34#

34#

29#

TOPT-50L

50

180

15000g.cm

360*405

50#

40#

34#

34#

29#

TOPT-30L

30

180

15000g.cm

315*360

50#

40#

34#

34#

29#

TOPT-20L

20

120

12000g.cm

315*360

50#

40#

34#

34#

29#

TOPT-10L

10

120

12000.g.cm

245*260

50#

40#

34#

34#

29#

TOPT-5L

5

90

9000.g.cm

200*230

50#

29#

24#

24#

19#

TOPT-3L

3

60

5000.g.cm

200*230

50#

29#

24#

----

19#

TOPT-2L

2

60

5000.g.cm

150*180

50#

29#

24#

----

19#

TOPT-1L

1

40

2400.g.cm

150*180

50#

29#

24#

----

14#

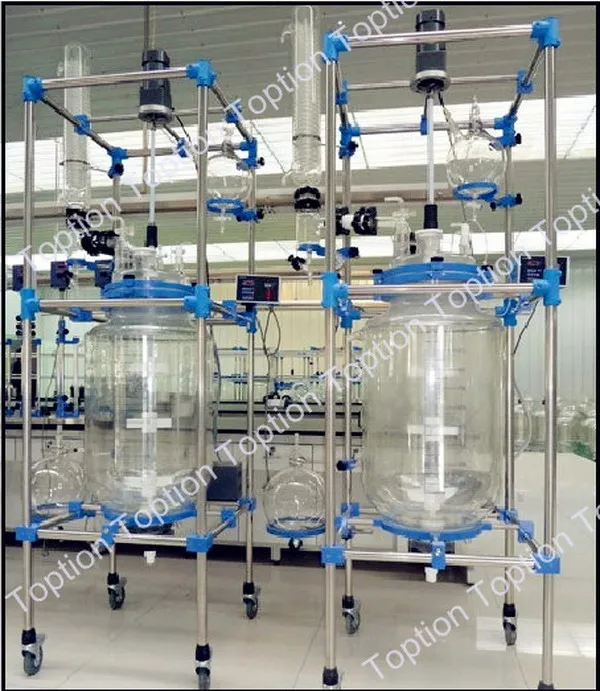

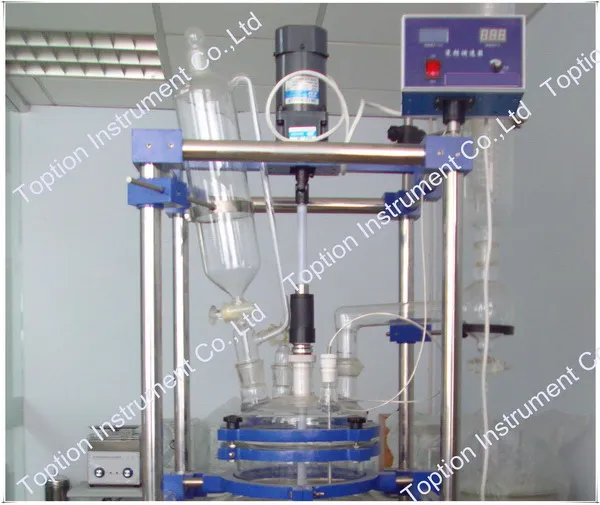

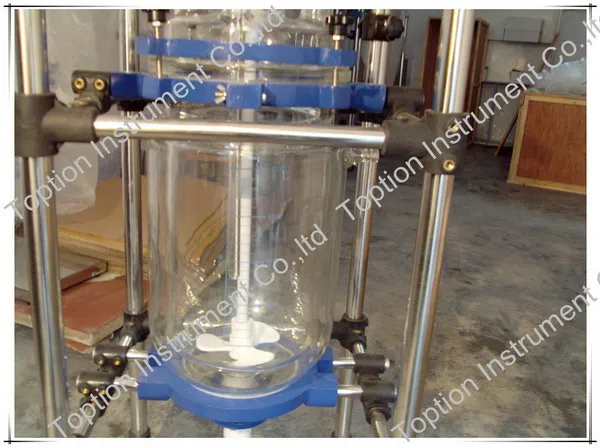

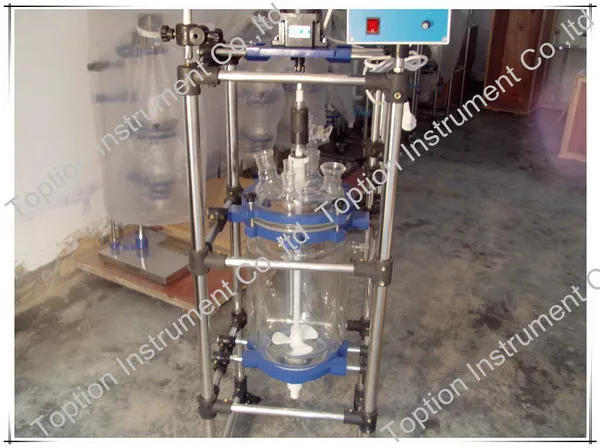

auto-control 80l reactor pictures



1. Chemical synthesis reactor series%1.2 10-150L@xjt#4

1. Chemical synthesis reactor series%1.2 10-150L@xjt#7

1. Chemical synthesis reactor series%1.2 10-150L@xjt#3

1. Chemical synthesis reactor series%1.2 10-150L@xjt#6

1. Chemical synthesis reactor series%1.2 10-150L@zt#1

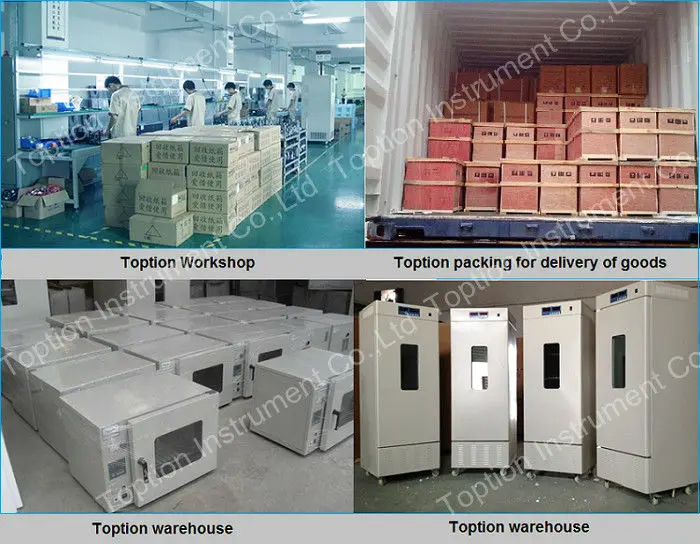

auto-control 80l reactor producing process

about Toption.jpg



auto-control 80l reactor packing

TOPTION  Introduction.jpg



Service

Toption service.jpg



Our team

 .jpg

auto-control 80l reactor
