DL-1510 High Efficiency Low Temperature Cooling Water Liquid Circulating Pump for glass reactor

FOB Reference Price:Get Latest Price
US $1,000-2,000 / Sets | 1 Set/Sets Low Temperature Cooling Pump (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
TOPTION
Model Number:
DL-1510
Structure:
Low Temperature Cooling Pump
Usage:
Air Pump
Application:
Low Temperature Cooling Pump
Power:
Electric
Fuel:
electric
Pressure:
Low Pressure
Minimum temperature(℃):
-15℃
volume(L):
10L
Cooling capacity:
600W
accuracy(℃):
±0.5℃
Circular flow (L/min):
15L/min
Standard or Nonstandard:
Standard
Theory:
Low Temperature Cooling Pump
Supply Ability
Supply Ability:
200 Set/Sets per Month Low Temperature Cooling Pump
Packaging & Delivery
Packaging Details
standard export packing
Port
shanghai/tianjin/ningbo port
Lead Time :
within 7 working days
Product Description

   DL-1510 High Efficiency Low Temperature Cooling Water Liquid Circulating Pump for glass reactor







Description of low-temperature circulating pump:

 TOPTION Brand DL series low-temperature coolant circulation pump is totally enclosed air-cooled refrigeration compressor and microprocessor based control system to provide low-temperature cooling water (liquid) flow or low temperature water (liquid) flow, in order to satisfy the cooling water and low-temperature liquid to temperature or constant temperature equipment, such as evaporation, fermentation, electron microscopy, low temperature chemical reactors, electron spectroscopy, mass spectrometry, densitometer, freeze-drying apparatus, vacuum coating apparatus, the reactor so. Can also make a variety of low temperature volume directly in the tank experiment.





The main features of low-temperature circulating pump:
1. Air-cooled completely closed refrigeration compressor, refrigeration system, intelligent control computer automatically open, refrigeration systems with delays, overheating, over-current protection devices such as multiple
2. Circulating pump liquid output can be cold tank, cooling or constant temperature machine outside the experimental container or a second temperature field
3. Microcomputer equipped with timer off function, this feature can be turned from 0 to 100 hours to set the time off any time
4. Uses the double window, red, green and two color LED display temperature settings and temperature measurement, digital resolution of 0.1 , the temperature measurements may be amended computer error, so the number was 0.1  accuracy
5. With computer software lock function, lock the system parameter setting, independent of staff can not change the configuration parameters
6. All of the above operations were based intelligent controller on the completion of pressing the touch pad, easy to operate
7. Products easy to use, can work.





Technical parameters of low-temperature circulating pump:



Product model

Minimum temperature()

Volume

(L)

Cooling capacity
(W)

Accuracy

()

Circular flow (L/min)

DL-1005

-10

5

350



±0.5







 15







DL-1015

15

800

DL-1020

20

1000

DL-1030

30

1500

DL-1050

50

3000

DL-1505

-15

5

300

±0.5

15

DL-1510

10

600

DL-2005

-20

5

180



±0.5









15







DL-2010

10

500

DL-2020

20

1300

DL-2030

30

1600

DL-2050

50

3500

DL-3005

-30

5

150



±0.5









15







DL-3010

10

300

DL-3020

20

1400

DL-3030

30

1700

DL-3050

50

3800

DL-4005

-40

5

200

±0.5

15

DL-4020

20

1700

DL-4030

30

4200

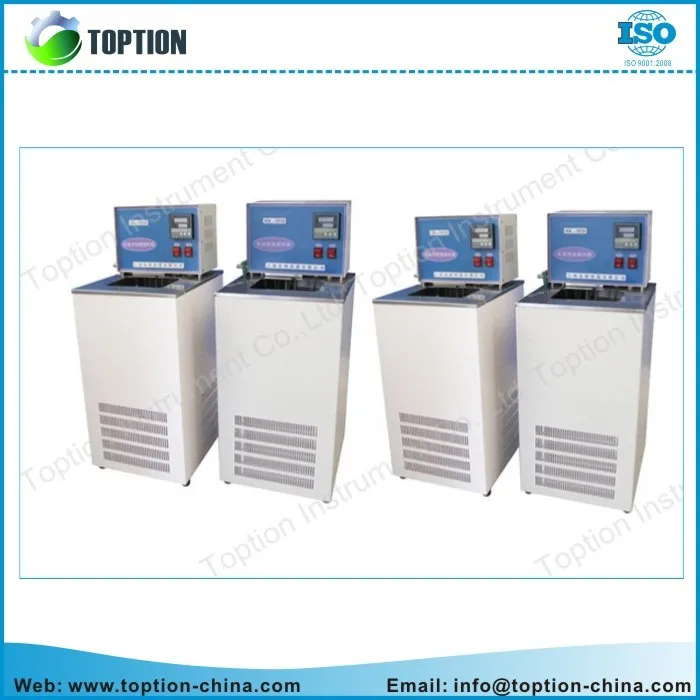

Product pictures:
