Best price Fruit and Vegetable Vacuum Freeze Dryer/lyophilizer price

FOB Reference Price:Get Latest Price
US $20,000-39,999 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
300 Set/Sets per Month
Port:
Shanghai,Shenzhen,Ningbo
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Vacuum Drying Equipment
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
TOPTION
Model Number:
TPV-300F
Voltage:
Customized
Power(W):
15kw
Dimension(L*W*H):
1200x2300x1700
Weight:
1500kg
Certification:
ISO CE
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
heath care products,fruits,vegetables, herbal medicien freeze-dried
Freeze Drying Area( square meter):
3.15 ㎡
Condenser temperature:
<-75℃
Vaccum degree:
<5Pa
Water-capture capablility:
60Kg/24h
Shelf size:
500x900mm*7+1
Bulk capacity Thickness: 10mm:
30L
Defrosting method:
water soaking
Packaging & Delivery
Packaging Details
1. Standard wooden case
2. Base on your needs
Delivery Time
In 7-10days after the order
Product Description

Best price Fruit and Vegetable Vacuum Freeze Dryer/lyophilizer price

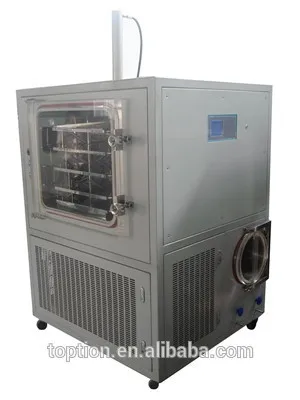

 TOPTION  TPV-300F best price  vacuum freeze dryer is which freeze dried in situ, also called  situ freeze dryer(lyophilizer),  it can prevents the pollution of the material. The vaccum freeze dryer adopts  silicone oil heating  ,which can realize the high effient dry sublimation automation of materials.  And it  has passed CE ceertification.

Equiped with organic glass observation window,temperature  adjustable and controllable partition board  and LCD display ,is suitable for freeze drying all kinds of materials  such as biomedical test samples, food, fruit and all kinds of vegetables.Tt is widely used in the field of pharmacy,laboratory,home, medicine, biology research, chemical industry and food production.

We have standard type and top press type to meet your different requirements.

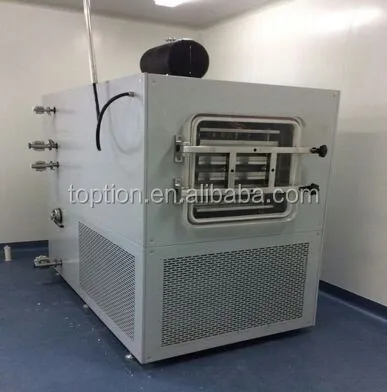

Detailed Images

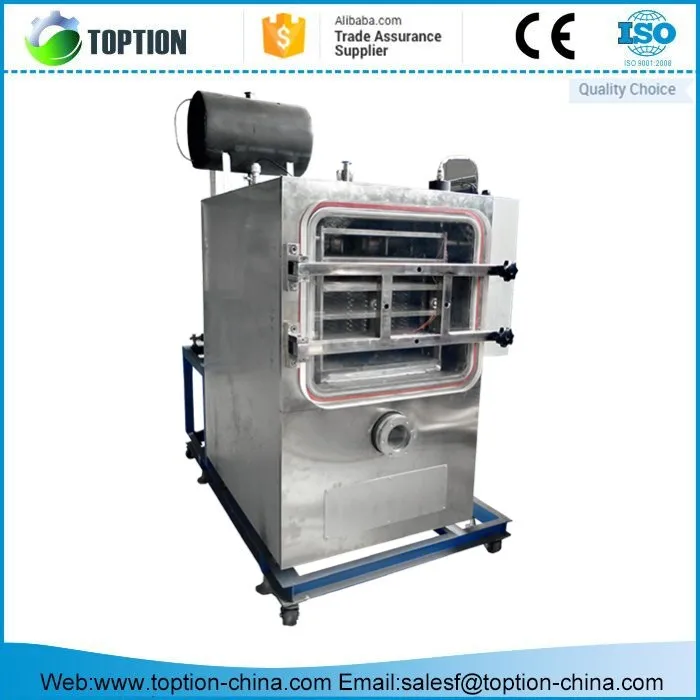

Features of Toption TPV-300F Vacuum freeze dryer:

1. TPV-200F/300F freeze dryer use double color touch screen and PLC as control center ,control system stable and reliable. it can store 33groups of freeze drying program , and each program can be set up 36 segments. It can display freeze drying curve and automatically records data.Freeze drying data can be output by USB flask disk. This model is suitable for pilot scale and small scale production.

2. TPV-200F/300F model freeze dryer, with two compressors as cascade refrigeration , condenser temperature can reach <-75℃ .

3. Samples can be frozen and drying on shelf directly. With air cooling unit, easy to install and operate.It has two types:standard type and top press type.

Application

               Vaccum freeze drying Cordyceps

            Vaccum freeze drying all kinds of fruit

   Vaccum freeze-dried xeraphium

  Vaccum freeze drying sea cucumber

              Vaccum freeze drying beef

Vaccum freeze drying plant distilling liquid

Vaccum freeze drying gene

Vaccum freeze drying collagen

The features of goods after vacuum freeze drying:

1.After vacuum freeze drying  goods are easier for long-term preservation.

2.After freezing-drying processing, goods can be restored to the original state.

3. Maintain goods's chemical and biological characteristics after being watered.

Technical prameter

TPV-200F
TPV-300F
Condenser temperature
<-75℃
Vacuum degree
<5Pa
Water capture capacity
30Kg/24h
60Kg/24h
Cooling method
Air cooling,draughty, ambient temperature ≤ 25℃
Defrosting method
water soaking
Shelf size
500x900mm*5+1
500x900mm*7+1
Power
15kw
Weight
1200kg
1500kg
Dimension (mm)
1200x2100x1700
1200x2300x1700
Bulk capacity Thickness:10mm
22L
30L

Note:
The green font part is the Techincal Parameters of TPV-300F, the other are the homologous products's parameters , you can refer to this table to choose the suitable product for you.

Certifications

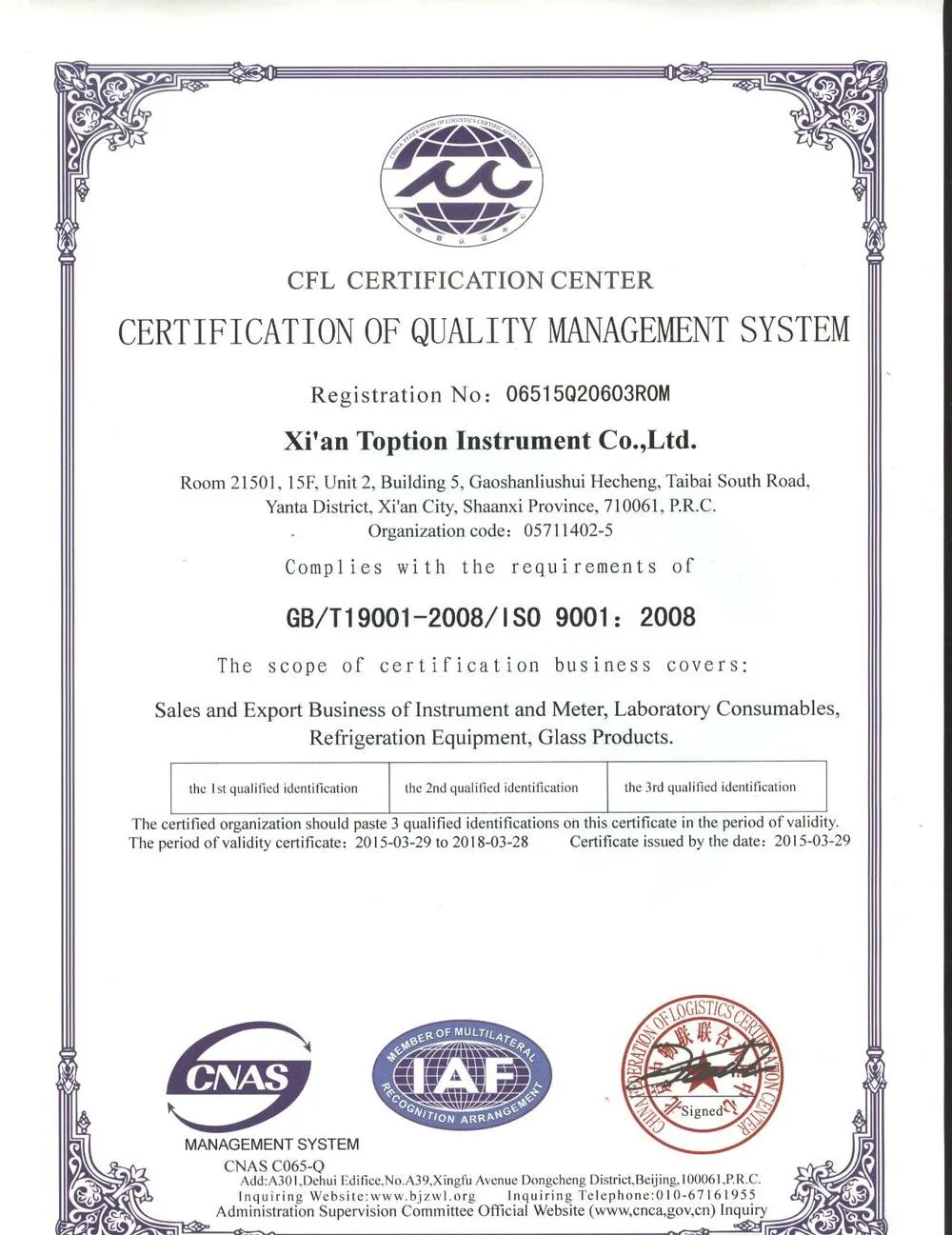

TOPTION has passed the “ISO9001:2008 Quality Management System”certification and our freeze dryer have passed CE certification,the quality can be assured.

Packing & Delivery

Packing:
-Standard wooden case.
-Both neutral and customized packaging can be available.

Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own forward.

Our Service

Pre-Sales Service:
1. Inquiry and consulting support.
2. Quick response with detailed quotation
3.Confirm price, quantity, shipment, lead time and payment terms)
4.Make order and sealed PI. (Trade assuranceorder is recommend to new clients for securing payment)

After-Sales Service:
1. One year warranty for the products described here.
2. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
3.Reliable quality and thoughtful after-sale service: If you encounter problems when using our products, please contact us by telephone or e-mail, we will be ready to provide consulting, maintenance and other services immediately.

Contact us
FAQ

Q: What is your MOQ?
A:1 set.

Q: How long is your delivery time?
A: Generally it is within 3 working days after receiving the payment if the goods are in stock. Or it is 5-10 working days if the goods are not in stock, depending on order quantity.

Q: How to choose suitable equipment ?
A:tell us your work flow and requirements ,then we will recommend you suitable equipment according to yourrequirements, application experience and feedback from our clients.

Q: How to solve the equipment trouble during using ?
A: Please email us about problem with pictures or a small video will be better,we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.


For more details about lab instruments, please feel free to contact us~
