GZVF-12 Best price Fruit and Vegetable Vacuum Freeze Dryer& drying machine for fruit&lyophilizer

FOB Reference Price:Get Latest Price
US $10,000-80,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Vacuum Drying Equipment
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
TOPTION
Model Number:
GZVF-12
Voltage:
Customized
Power(W):
25KW
Dimension(L*W*H):
4x2.2m
Weight:
4 ton
Certification:
ISO CE
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
food industries
Freeze Drying Area( square meter):
12 ㎡
Drying chamber size:
1.4 X 1.5m
Shelf layers:
12+1
Shelf size:
1200 X 800mm
Shelf spacing:
70mm
Trolley number(set):
1
Tray size:
400X600mm
Trays number:
96pcs
Heating way:
heat conductive oil circulation
SupplyAbility
SupplyAbility:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
1. Standard wooden case
2. Base on your needs
Port
Shanghai,Shenzhen,Ningbo
Lead Time :
In 7-10days after the order
Product Description

GZVF-12 Best price Fruit and Vegetable Vacuum Freeze Dryer& drying machine for fruit&lyophilizer

GZVF series freeze dryers use double color touch screen and PLC as control center ,control system stable and reliable. it can store 33groups of freeze drying program , and each program can be set up 36 segments. It can display freeze drying curve and automatically records data.Freeze drying data can be output by USB flask disk.

GZVF series freeze dryers use Bitzer refrigeration unit,condenser temperature can reach < -75℃ , performance stable .This model is suitable for production.

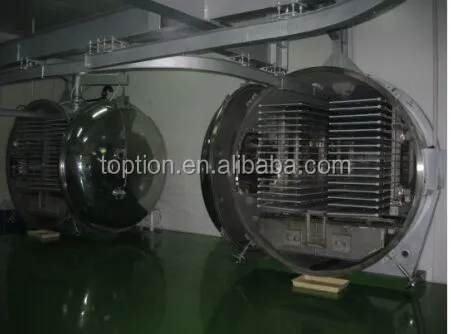

Detailed Images

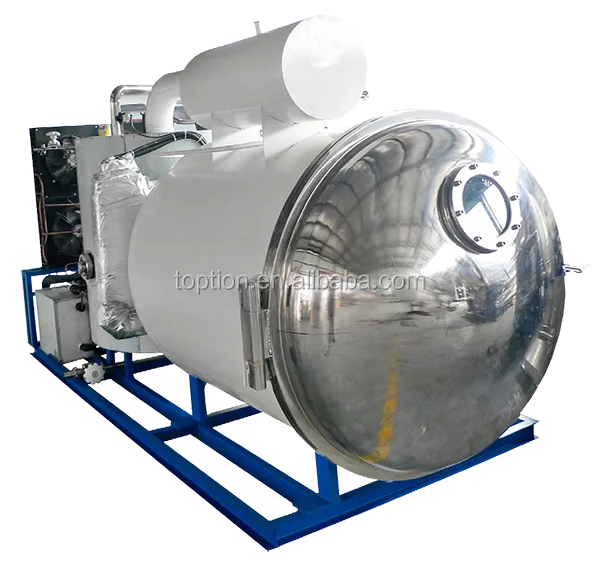

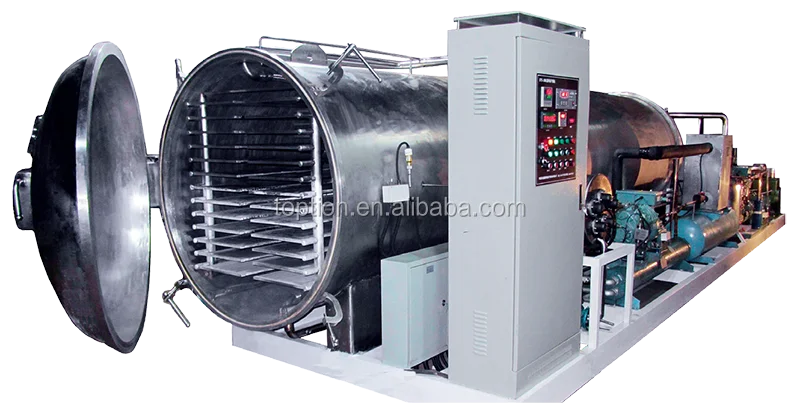

Features of Toption GZVF-12 Vacuum freeze dryer:

1. Vertical cylindrical condenser,compact structure,with good water capture capacity, no dead corner, easy for defrosting and cleaning.
2. Pre-Freezing and drying process are both finished on shelf.
3. Silicon oil as circulation medium, with high accuracy of temperature control.Shelf temperature uniformity ≤ 1℃ , with uniform drying effect.
4. Shelf temperature adjustable , controlled, suitable for pilot and production.
5. Touch screen operation,PLC control, display drying curve.
6. Square tray easy to operate and clean.
7. With charging valve, to fill dry inert gas.
8. Optional eutectic point test functions.
9. Optional PC software to realize the remote control.
10. Ozone disinfection function is optional.

Application

Technical advantages of GZVF series freeze dryers:

1. Vertical cylindrical condenser,compact structure,with good water capture capacity, no dead corner, easy for defrosting and cleaning.
2. Refrigeration system protection control device: adopt international famous brand products, accurate, stable, safe and reliable.
3. High pressure protection system: when the system exhaust pressure more than allowed, refrigeration unit running will be automatically cut off , to prevent accidents.
4. Middle pressure regulation system: in the double-stage refrigeration system, proper middle pressure are very important for operation performance and life of the refrigeration system. When middle pressure below the set value, the system will automatically start to adjust. Create conditions for the realization of the lyophilizer unmanned operation.
5. Oil pressure protection system: when the long time operation of the refrigerator, monitor the hydraulic pressure of the refrigerator, prevent refrigerator damage because of oil lack.
6. The motor temperature protection system: when the refrigerator motor temperature higher than the set value, in order to protect the refrigerator, the system will automatically stop the operation of the refrigerator.
7. Oil return at low temperature regulating system: when refrigerator works under very low evaporation temperature for long time , how to make the refrigeration oil well back to the crankcase is very important (lack of refrigeration oil in the system often causes refrigerator "burned"). When the crankcase lack of refrigeration oil, the system automatically start to establish proper oil level in the crankcase. Create conditions for the realization of the lyophilizer unmanned operation.
8. Exhaust temperature control system: when refrigerator exhaust temperature is too high, the system automatically start cooling system, to prevent the high pressure part of overtemperature operation. Create conditions for the realization of the lyophilizer unmanned operation.
9. Wet stroke prevention control system: when the high load operation of the refrigerator, the system can automatically go in the process of adjustment, prevent the wet stroke even "liquid impact phenomenon". Create conditions for the realization of the lyophilizer unmanned operation.
10. Automatic liquid collection device: when the refrigerator is in standby mode, the device will automatically run , to collect stranded refrigerant in the system to storage tank, in order to start the freeze dryer again.
11. The machine start protection: when equipment has all security conditions , the machine will be able to start running.
12. whole machine structure longitudinal, front and back split type (convenient for transport and placing ).
13. Ozone disinfection function is optional.

The features of goods after vacuum freeze drying:

1.After vacuum freeze drying  goods are easier for long-term preservation.

2.After freezing-drying processing, goods can be restored to the original state.

3. Maintain goods's chemical and biological characteristics after being watered.

Technical prameter
Model
GZVF-2
GZVF-5
GZVF-12
GZVF-16
GZVF-33
GZVF-44
drying chamber
Shelf area(㎡)
2.4
5.9
12
16
33
44
Drying chamber size(m)
Φ0.75 X 0.9
Φ1.1 X 1.2
Φ1.4 X 1.5
Φ1.5 X 2.1
Φ1600 X 3600
Φ1800 X 3600
Shelf layers
6+1
8+1
12+1
12+1
14+1
14+1
Shelf size(mm)
500 X 800
1050 X 700
1200 X 800
1800 X 800
3100 X 800
3600 X 1000
Shelf spacing(mm)
70
70
70
75
75
758
Trolley number(set)
N/A
1
2
Tray size(mm)
350X500
350X500
400X600
400X600
400X500
400X500
Trays number (pcs)
24
64
96
144
336
448
Heating way
heat conductive oil circulation
Temperature range
room temperature~120
control accuracy
±1℃
condenser
Max. Ice capacity Kg)
24
75
150
225
450
600
Ice capacity(kg/day)
20
60
100
150
300
400
Lowest temperature
-85℃
Temperature lowing style
direct evaporation
Defrosting method
warm water spray
basic parameters
final vacuum
5Pa
Installed power(Kw)
6
12
25
37
72
104
cooling water(m3/h)
air cooling
8 or air cooling
15 or air cooling
22 or air cooling
50
60
cooling water pipe dia
N/A
1 1/4″or N/A
1 1/2″ or N/A
1 1/2″ or N/A
2″
2″
dimension
1.5x1.5m
3x2m
4x2.2m
5x2.3m
8x2.6m
9x3.2m
height(m)
2
2.2
2.3
2.3
2.6
3.2

Note:
The green font part is the Techincal Parameters of GZVF-12, the other are the homologous products's parameters , you can refer to this table to choose the suitable product for you.

Certifications

TOPTION has passed the “ISO9001:2008 Quality Management System”certification and our freeze dryer have passed CE certification,the quality can be assured.

Packing & Delivery

Packing:
-Standard wooden case.
-Both neutral and customized packaging can be available.

Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own forward.

Our Service

Pre-Sales Service:
1. Inquiry and consulting support.
2. Quick response with detailed quotation
3.Confirm price, quantity, shipment, lead time and payment terms)
4.Make order and sealed PI. (Trade assuranceorder is recommend to new clients for securing payment)

After-Sales Service:
1. One year warranty for the products described here.
2. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
3.Reliable quality and thoughtful after-sale service: If you encounter problems when using our products, please contact us by telephone or e-mail, we will be ready to provide consulting, maintenance and other services immediately.

Contact us
FAQ

Q: What is your MOQ?
A:1 set.

Q: How long is your delivery time?
A: Generally it is within 3 working days after receiving the payment if the goods are in stock. Or it is 5-10 working days if the goods are not in stock, depending on order quantity.

Q: How to choose suitable equipment ?
A:tell us your work flow and requirements ,then we will recommend you suitable equipment according to yourrequirements, application experience and feedback from our clients.

Q: How to solve the equipment trouble during using ?
A: Please email us about problem with pictures or a small video will be better,we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.


For more details about lab instruments, please feel free to contact us~
