GZLY-3 medical and pharmaceutical pilot scale suitable vacuum freeze dryer with CE

FOB Reference Price:Get Latest Price
US $30,000-150,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Vacuum Drying Equipment
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
TOPTION
Model Number:
GZLY-3
Voltage:
Customized
Power(W):
18KW
Dimension(L*W*H):
2800x1200x2500mm
Weight:
2800kg
Certification:
ISO CE
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
drugs, biological products, chemical and food industries
Freeze Drying Area( square meter):
3.24 ㎡
Condenser temperature:
<-75℃
Partition board temperature:
≤ -55℃
control accuracy:
±1℃
Vacuum degree:
< 5Pa
Cooling method:
water cooling
Water capture capacity:
60Kg/24h
Partition board size:
600 x 900 x 20mm*6+1
Bulk capacity Thickness:10mm:
30L
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
1. Standard wooden case
2. Base on your needs
Port
Shanghai,Shenzhen,Ningbo
Lead Time :
In 7-10days after the order
Product Description

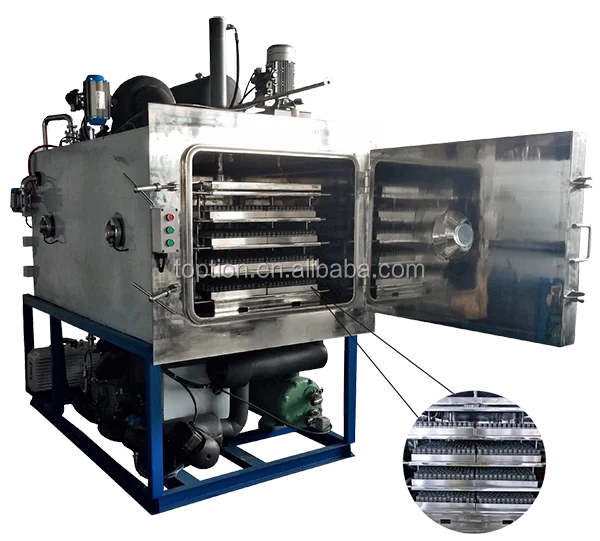

Toption GZLY-3 medical and pharmaceutical pilot scale suitable vacuum freeze dryer with CE

Vacuum freeze dryer  is also called lyophilizer.GZLY-3 vacuum freeze dryer is which freeze dried in situ, also called In situ freeze dryer,  it can prevents the pollution of the material. Toption  GZLY series in situ freezing dryer has high quality and has passed CE ceertification ,which can realize the  high effient dry sublimation
automation of materials.
Equiped with import stainless steel plates, O type door sealing,temperature  adjustable and controllable partition board  and LCD display ,is suitable for freeze drying all kinds of materials  such as biomedical test samples, medicine, fruit and all kinds of vegetables.It is widely used in the field of medical and pharmaceutical industry, laboratory, biology research, chemical industry and food production.
Key Features

Features of Toption GZLY-3 in situ   Vacuum freeze dryer:

1. Stainless steel plates are imported, guarantee smooth finish of chamber.Ensure aseptic requirements.
2.Special O type door sealing, to prevent water store up, and meet aseptic requirements.
3. Shelf with high strength, pressure test can reach 0.3Mpa, durable for long time.
4. Shelf by machine processing, ensure high demand of flatness.
5. Shelf temperature control accuracy ±0.5℃ (PID control, after balance).
6. Chamber and shelf are tested by helium mass spectrometer for leaking test.
7. Condenser and cooling tube all tested by helium mass spectrometer for leaking test.
8. Compressor is Bitzer unit, with more stable and reliable performance.
9. With environment friendly refrigerant.
10. Refrigeration system has many interlock protection functions.
11. Pressure automatic adjustment function under low load situation in later period of freeze drying.
12. Oil pressure multiple protection function for refrigeration system.
13. Multiple protection function for motor of compressor.
14. HMI display working state of main parts, valve, temperature and vacuum degree.
15. User can set 32 groups of freeze drying parameters.
16. Freeze drying process display segments, user can skip.
17. User can adjust freeze drying parameter at any time.

Application

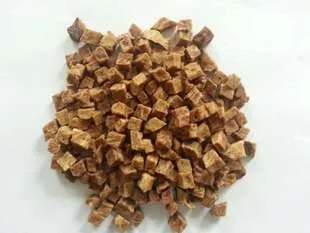

               Vaccum freeze drying Cordyceps

            Vaccum freeze drying all kinds of fruit

Vaccum freeze drying collagen

  Vaccum freeze drying Xeraphium

              Vaccum freeze drying beef

The features of goods after vacuum freeze drying:

1.After vacuum freeze drying  goods are easier for long-term preservation.

2.After freezing-drying processing, goods can be restored to the original state.

3. Maintain goods's chemical and biological characteristics after being watered.

Technical prameter

GZLY-1
GZLY-2
GZLY-3
GZLY-5
GZLY-10
GZLY-15
GZLY-20
GZLY-30
GZLY-40
Freeze drying area
1.152 ㎡
2.16 ㎡
3.24 ㎡
5.25 ㎡
10.5 ㎡
15 ㎡
20.2 ㎡
30 ㎡
40 ㎡
Condenser temperature
< -75℃
Partition board temperature

< -55℃
control accuracy
±1℃
Vacuum degree
< 5Pa
Cooling method
water cooling
Water capture capacity
20
Kg/24h
40
Kg/24h
60
Kg/24h
100
kg/24h
> 200
kg/24h
> 300
kg/24h
400
kg/24h
600
kg/24h
800
kg/24h


Partition board size
600 x 480 x 20mm*
4+1
600 x 900 x 20mm*4+1
600 x 900 x 20mm*6+1
750 x 1000 x 20mm*7+1
1520 x 990mm*7+1
1520 x 990mm*10+1
1520 x 1210mm*11+1
1500 x 1800mm*11+1
1500 x 1800mm*15+1
Installed Powe
15kw
15kw
18kw
20kw
50kw
83kw
105
145
170
Weight
1500kg
2600kg
2800kg
4200kg
7000kg
9000kg
11000kg
15000kg
20000kg
Dimension(mm)
2500x
1100x
2000
3500x
1300x
2000
2800x
1200x
2500
4000x
1500x
2500
6700×
2100×
3600
6500x
2300x
3400
7400x
2300x
3800
9200x
2400x
4000
9400x
2400x
4500
Bulk capacity Thickness:10mm

10L

20L

30L

50L

200L

300L

450L

600L

850L



Vial loading
number (pcs)
Ф12mm8400
Ф12mm12600
Ф12mm16000
Ф12mm35000
Ф12mm65300
Ф12mm95700
Ф12mm
130400
Ф12mm187700
Ф12mm56000
Ф16mm4706
Ф16mm6800
Ф16mm10000
Ф16mm24800
Ф16mm46400
Ф16mm66400
Ф16mm
92800
Ф16mm133600
Ф16mm82200
Ф22mm2428
Ф22mm3600
Ф22mm5300
Ф22mm12700
Ф22mm23700
Ф22mm33900
Ф22mm
47400
Ф22mm68300
Ф22mm93000

Note:

The bold font part is the Techincal Parameters of GZLY-3, the other are the homologous products's parameters , you can refer to this table to choose the suitable product for you.

Certifications

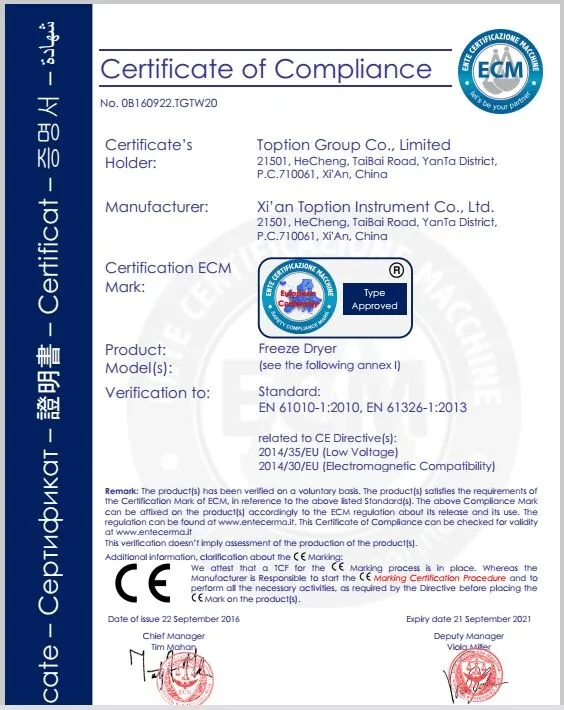

TOPTION has passed the “ISO9001:2008 Quality Management System”certification and our freeze dryer have passed CE certification,the quality can be assured.

Packing & Delivery

Packing:
-Standard wooden case.
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own forward.

Our Service

Pre-Sales Service:
1. Inquiry and consulting support.
2. Quick response with detailed quotation
3.Confirm price, quantity, shipment, lead time and payment terms)
4.Make order and sealed PI. (Trade assuranceorder is recommend to new clients for securing payment)

After-Sales Service:
1. One year warranty for the products described here.
2. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
3.Reliable quality and thoughtful after-sale service: If you encounter problems when using our products, please contact us by telephone or e-mail, we will be ready to provide consulting, maintenance and other services immediately.

Contact us
FAQ

Q: What is your MOQ?
A:1 set.

Q: How long is your delivery time?
A: Generally it is within 3 working days after receiving the payment if the goods are in stock. Or it is 5-10 working days if the goods are not in stock, depending on order quantity.

Q: How to choose suitable equipment ?
A:tell us your work flow and requirements ,then we will recommend you suitable equipment according to yourrequirements, application experience and feedback from our clients.

Q: How to solve the equipment trouble during using ?
A: Please email us about problem with pictures or a small video will be better,we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.


For more details about lab instruments, please feel free to contact us~
