2016 newest short path distillation/Short path distiller

FOB Reference Price:Get Latest Price
US $15,000-25,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
500 Set/Sets per Month
Port:
Shanghai,Ningbo,Shenzhen
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Distillation
Power Source:
Fuel Oil
Process:
Vacuum Distillation
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
TOPTION
Model Number:
TWF38-1
Voltage:
220V/50HZ
Power(W):
As design
Dimension(L*W*H):
1200 x 550 x 1900mm
Weight:
150kg
Certification:
ISO 9001
Warranty:
One Year
After-sales Service Provided:
Engineers available to service machinery overseas
Diameter:
38mm
Surface:
0.01 square meter
Processing measures:
0.01-0.2kg/h
Film system:
Self-Clean Roll Filming system
Cold Trap:
Equipped
Rotation Speed:
60-480rpm
Vacuum Measure:
0.001-100 mbar digital display
Vacuum Supply:
0.001~0.05mbar
Packaging & Delivery
Packaging Details
1.Qualified wooden case for export
2. Base on your needs
Delivery Time
Shipped in 7 days after payment
Product Description

2016 newest short path distillation/Short path distiller

Molecular Distillation / Short Path Distillation is a comparatively new separation technology. It can separate liquid-liquid mixture under temperature that is far lower than boiling point by the difference of mean free path of molecules under high vacuum condition. Such separation is difficult or unable to achieve on normal distillation equipments. Molecular Distillation is especially suitable to separate substance of high boiling point, heat sensitive and easy to be oxidized.

Main application field:Separation process in trades like Food,Pharmaceutical, Fine chemical, Electronic materials, Polymers ( Polyols, fatty acids, Polyphenols compounds, polyurethane, epoxy resin, lactate, glycerol monostearate, flavors and fragrances, fuel oil and paraffin oil), etc.

Technical specification:

Model
Diameter(mm)
Surface(㎡)
Processing measures(kg/h)
TWF38-1
38
0.01
0.01-0.2
TWF70-4
70
0.04
0.1-2
TWF70-5
70
0.05
0.1-2
TWF125-10
125
0.1
0.3-4
TWF125-12
125
0.12
0.4-5
TWF125-15
125
0.15
0.5-6
TWF200-45
200
0.45
0.7-8
TWF300-75
300
0.75
1.0-11
For more details , please feel free to contact us

Features and working principle of short path distillation:

1.Distilling temperature far lower than the material boiling temperature
1. Has advantages on dealing with materials that is heat sensitive, of high boiling temperature, belongs to biological acids or lipids.
2.Heating process of material is very quick
- It may take only flew tens of seconds to finish a separation on short path distillatory when it takes hours on a normal evaporation apparatus.
3.It is a physical separation process
- A natural and gentle separation process that is widely applied on deodorization, decolorization, and purification on materials with high value.

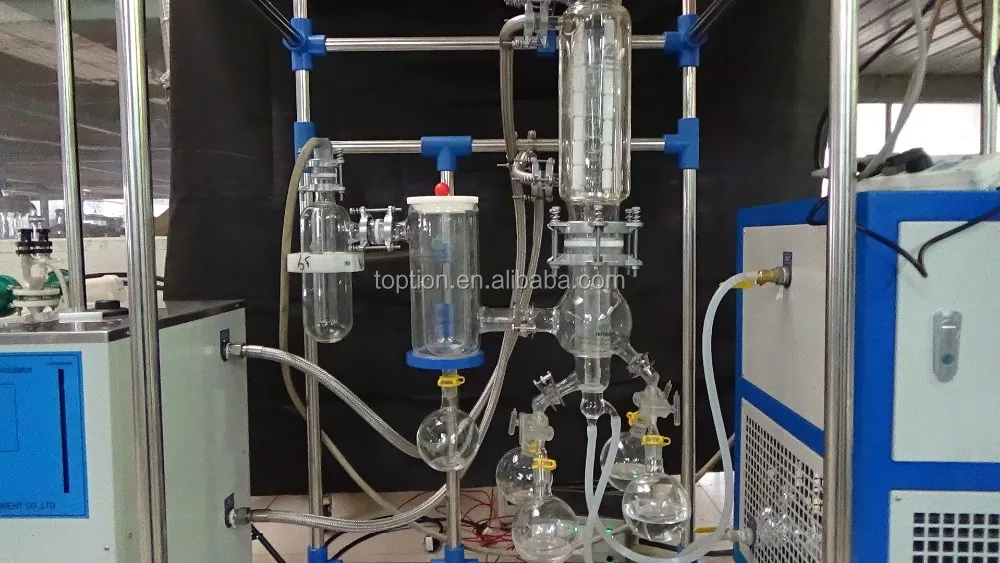

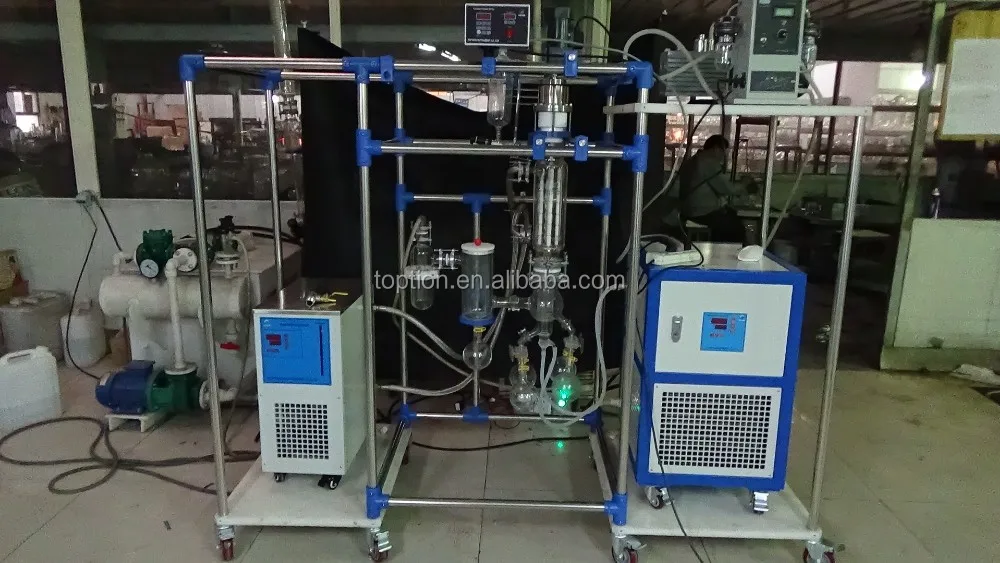

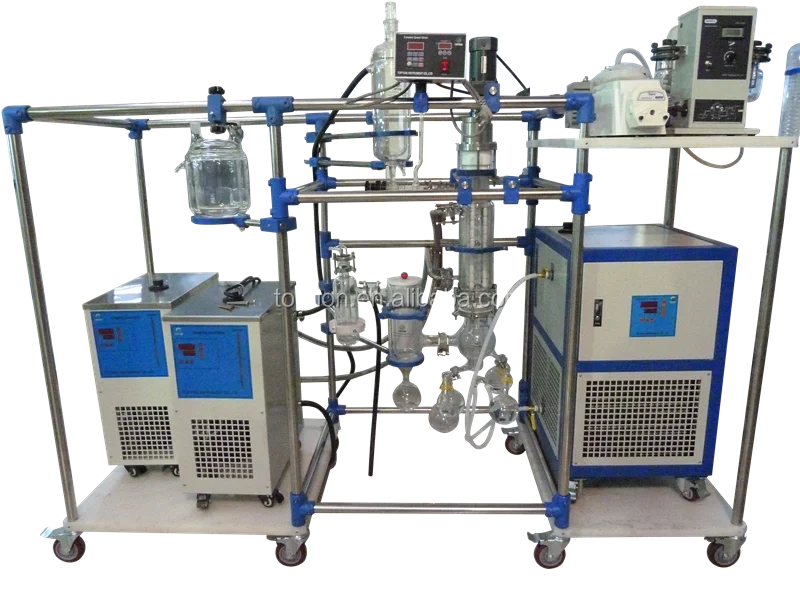

Detailed Images

Features Of TOPTION Molecular Distillation System

1.Transprent - Allow an easy observation in whole experiment process on materials (color, fluidity, film effect, start point of distilling, ect.) when changing of settings of pressure, temperature, feed and rotation speed. The convenience does help to get the optimum technological parameters and the experimental data.
2.High Pressuretightness - Magnetic coupling drive system plus TOPTION fine processing technics, both guarantee system vacuum down to 0.001mbar.
3.Cleaness - Material can only touch glass and PTFE during separation process.
4.Easy Maintenance - Quick disassemble structure and specially designed cleaning kits make maintenance job fast and simple.
5. Cow Distillation Receiver - Allow user to collect 3 samples during separation process which increases experiment efficiency and assists process analysis.
