RE-5203A Automatic lifting used rotary evaporator 3L

FOB Reference Price:Get Latest Price
US $500-1,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Distillation
Power Source:
Electric
Process:
Rotary
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
TOPTION
Model Number:
RE-5203A
Voltage:
220V 50/60HZ
Power(W):
1.5KW
Dimension(L*W*H):
As design
Weight:
TAB
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Evaporating Flask:
3L + 2L
Optional Rotating Flask(L):
0.5L, 1L
Receiving Flask(L):
2L , 1L
Lifting Type:
Automatic lifting
Condenser:
Vertical
Rotation Speed:
20-200rpm
Staic Temp. Control Range & Wave:
1.5L/H
Power:
220V 50/60Hz
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.Qualified wooden case for export
2. Base on your needs
Port
Shanghai,Shenzhen,Ningbo
Lead Time :
Shipped in 7 days after payment
Product Description

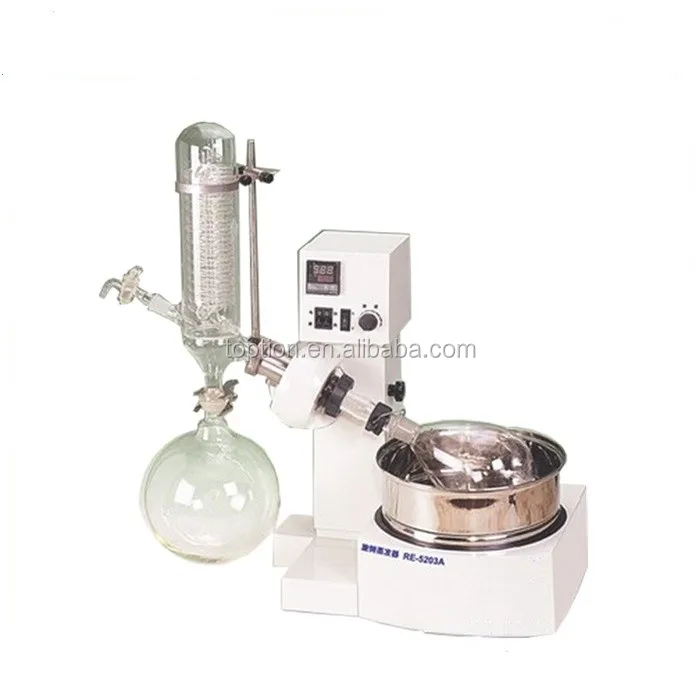

RE-5203A Automatic lifting used rotary evaporator 3L

Rotary evaporator is under normal/negative pressure, with constant heating, use the different boiling point of the liquid material to get your target solvent.

This RE-5203A Automatic lifting used rotary evaporator  adopts continuous receiving technology,water heating bath .It's high quality has passed CE certification. Widely used in the prosess like Concentration,Refining,Separation,Crystallization,

etrc.It is mainly applied in Bio-chemical,Pharmarceutical&Fine-Chemical Trades.Such as:

1. Distillation of solvent
2. Concentration of solutions and suspensions
3. Crystallization or recrystallization
4. Synthesis and purifying of fine chemicals
5. Soxhlet extraction
6. Powder and granules drying
7. Recycling of solvent

A:99℃Automatic lifting
AD:170℃Automatic lifting
AEx:99℃Automatic lifting,Whole ex-proof system
ADEx:170℃Automatic lifting,Whole ex-proof system


Type
RE-5203A







Basic

Parameter
Glass material
GG3.3
Bath material
Stainless steel
Rotating Flask(L)
3L
Optional Rotating Flask(L)
2L, 1L
Receiving Flask(L)
1L
Lifting Type
Automatic lifting
Condenser
Vertical
Rotation Speed (rpm)
0-150
Max Evaporating Speed (H2O)
1.5L/H
Reachable Vacuum Rate
<133Pa (1.33mbar, 1 Torr)
Bath Power (kw)
1.5KW
Staic Temp. Control Range & Wave (℃)
RT-99(150)±0.2
Power
220V 50/60Hz




Function configurations
PTFE Seal Assembly
Have
Continuous Charge
Have
Digital Display
Bath Temp.
Taper Joint PTFE Sleeve
Have
Low Noise
Have
Bath Lift
Have
Optional Evaporating Flask
1L, 2L
optional configurations
Thermometer Neck For Vapor
Water Bath Lid
Joint Adaptor
Cold Trap

* Note: Max evaporating speed is affected by operation setting and the performances and matching levels of supporting equipment.
"A"-Automatic lifting, "D"-150℃ Oil Bath, "EX"-Explosion Protection, "AD"-Automatic Lifting 150℃ Oil Bath, "AEX"-Automatic Lifting Explosion Protection.

Our factory is professional in 50ml, 1L, 2L, 3L, 5L, 10L, 20L, 50L Rotary Evaporator. Water bath or oil bath can be produced according to customers’ requests! Customized Glass Reactor also welcome here !!!

Work principle

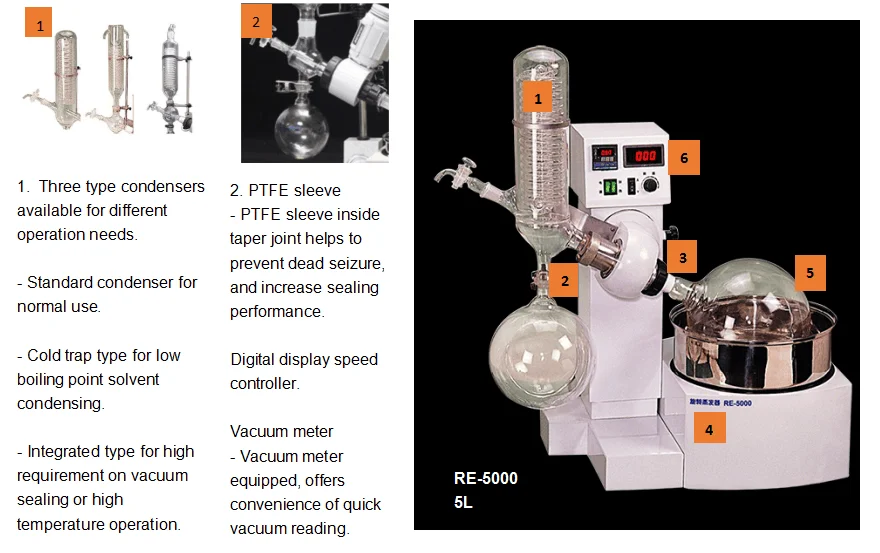

Main Features:

1.sealing performance

-- Continuous receiving technology, solvent discharge no longer need to stop evaporation process, to release and re-pump system vacuum. The technology allows real continuous work without vacuum wave, which obviously increases productivity simplifies system receiving structure and improves sealing performance.

2.Evaporation performance

-- System vacuum does not drop during discharging shift. Sample received keeps consistent quality.

3. Structure rationality

-- Easier installation and maintenance in compact tandem type structure.

-- Leakage points reduced by 50%. Ultimate system vacuum is improved further in receiving structure

Detailed Images
Fatory show

Why chose us?


TOPTION as a proffesional lad instrument supplier.We are committed to make your research more accurate and efficient. Our "Rotary Evaporation" can achieve  high speed evaporation,vaporized solvent is well be collected and the fully-enclosed  rotary evaporation will  keep you from awful smell . We hope you are able to work fast, safe, and always.
Certifications
Packing & Delivery

Packing:

-Standard wooden case.
-Both neutral and customized packaging can be available.


Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own forward.

You may like

 Water Circulation Vacuum Pump

Vacuum Controller

Cooling Circulator

Our Service

Pre-Sales Service:

1. Inquiry and consulting support.
2. Quick response with detailed quotation
3.Confirm price, quantity, shipment, lead time and payment terms)
4.Make order and sealed PI. (Trade assuranceorder is recommend to new clients for securing payment)


After-Sales Service:
1. One year warranty for the products described here.
2. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
3.Reliable quality and thoughtful after-sale service: If you encounter problems when using our products, please contact us by telephone or e-mail, we will be ready to provide consulting, maintenance and other services immediately.

Contact us
FAQ

About order:

Q: What is your MOQ?
A:1 set.
Q: How long is your delivery time?
A: Generally it is within 3 working days after receiving the payment if the goods are in stock. Or it is 5-10 working days if the goods are not in stock, depending on order quantity.
Q: How to choose suitable equipment ?
A:tell us your work flow and requirements ,then we will recommend you suitable equipment according to yourrequirements, application experience and feedback from our clients.

Q: How to solve the equipment trouble during using ?
A: Please email us about problem with pictures or a small video will be better,we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.


About Rotary Evaporator Model Selection:

1. What's the most important performance of rotary evaporator?
Air impermeability is the first important performance of rotary evaporator, which directly affect rotary evaporator normal operating and service life. Air impermeability is good or not is decided by suppliers' design standard, manufacture standard and material choice, etc. "Actual vacuum degree" and "vacuum pressure maintaining time" are the measuring standard.
2. What's the difference of glass lifting and bath lifting?
Bath lifting is more safe, the glass parts matched with rotary evaporator are not easy to be damaged, don't need to lock after lifting finished. Glass lifting is mainly suitable for the rotating flask which has fixed size, lifting height is fixed, after finish lifting, need to lock.
3. #29 and #24 Evaporation bottle grinding mouth, choice which type is better?
ISO #29 and ISO #24 both are the standard mouth for laboratory. ISO #29 has high strength and convenient to clean, is more suitable for imported rotary evaporator, and also benefit you to choice flask move device.
4. Which type vacuum pump is most suitable for rotary evaporator?
Vacuum pump is the prerequisite device for rotary evaporator, TOPTION provide SHB-III vacuum pump for 1L ~ 10L laboratory rotary evaporator, SHB-B95 vacuum pump for industrial rotary evaporator, and 2XZ also supplied for rotary evaporator, etc. But using cold trap or other methods provide corrosion protection is more better.
5. In which situation, condensation effect is best?
Tap water temperature changes as different season, its temp. is higher in summer, so solvent recovery efficiency is low, and tap water will make condenser change color and scale formation.
You could choice the below two lab solutions:
1) The best solution: equip appropriate low temperature cooling circulating pump, when you choice, please pay attention to "refrigerating capacity", "lowest temperature", "circulating joint", "circulation capacity" and "circulating pressure", TOPTION supply low temperature equipment professional for rotary evaporator.
2) For laboratory rotary evaporator, cold trap could be cooling by ice.
6. How to improve rotary evaporator service life?
1) Please operating based on TOPTION rotary evaporator operation instruction.
2) After finish research, please clean rotary evaporator in time.
3) The surface of rotary evaporator should be keep clean.
4) Please contact TOPTION specialist for any problems during rotary evaporator operating.


For more details about lab instruments, please feel free to contact us~
