TST-100BS stainless steel 100L single layer glass reactor vessel

FOB Reference Price:Get Latest Price
US $900-260,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
500 Set/Sets per Month
Port:
Shanghai,Shenzhen,Ningbo
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Automatic Grade:
Automatic
Type:
Reaction Kettle
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
TOPTION
Model Number:
TST-100BS
Voltage:
220V
Power(W):
9kw
Dimension(L*W*H):
As design
Weight:
TAB
Certification:
CE ISO
Warranty:
One Year
After-sales Service Provided:
Engineers available to service machinery overseas
Reaction flask:
100L
The mouth number of the bottle:
6
Stirring power:
250W
Speed:
0-720rpm
OD of Stirring bar:
16mm
Heater:
9kw 180℃
Power:
220V
Material:
Stainless Steel
Heating Method:
Oil Bath
Frequency-converting:
have
Packaging & Delivery
Packaging Details
1.Qualified wooden case for export
2. Base on your needs
Delivery Time
Shipped in 7 days after payment
Product Description

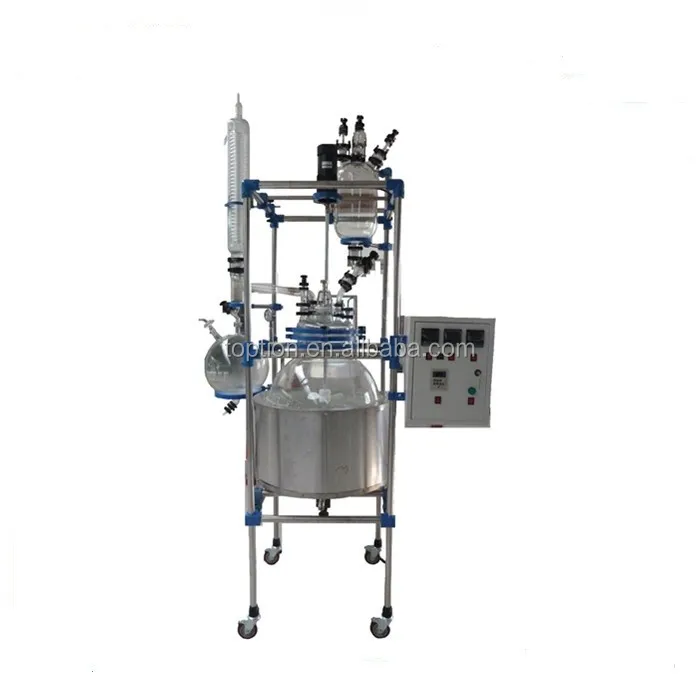

TST-100BS stainless steel 100L single layer glass reactor vessel

Single layer glass reactor is  a  full-closed equipment.It's a collaboration of  vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can finish all kinds of biochemical reactions and synthesis reactions at a constant temperature condition.It's an ideal experimental and prodution equipment for morden synthetic chemical, biological, pharmaceutical, and new material research.


This TST-100BS stainless steel 100L single layer glass reactor vessel adopts GG17 high boron silicon as material and has eletric heating mantle,digital display.It's high quality has  passed CE certification.

S:SS304L; P: spray plastics; B: oil bath; M : Heating Mantle; EX:Ex-proof

Type
TST-100BS




Basic
Parameter
Reaction flask(L)
100
The mouth number of the bottle
6
Stirring power(W)
250
Speed(rpm)
0-720
OD of Stirring bar(mm)
φ16
Heater
9kw 180℃
Power(V)
220 / 380
Material
Stainless Steel
Heating Method
Oil Bath









Function configurations
Frequency-converting
have
Vacuum sealing
have
Discharge valve
have
PTEE stirring bar
have
Charging cork
have
Tube for testing temp.
have
Reflux and distillation system
have
Vacuum meter
have
stereoscopic stirring
have
Mouth for multi-functions
have
Low mouth for taking material out
have
Discharging cork
have
Corke for anti-block
have
Automatic stir in CW or CCW
have
optional configurations
Cap of heating bath
Increase power under lower speed
Cooling coils

Application of Single Layer Glass  Reactor:

1.Vacuum stirring reaction
2.High temperature reaction
3.Low temperature reaction
4.Constant speed running mixing reaction
5.Distillation,reflux and condensation reaction
6.Negative pressure operation and separation

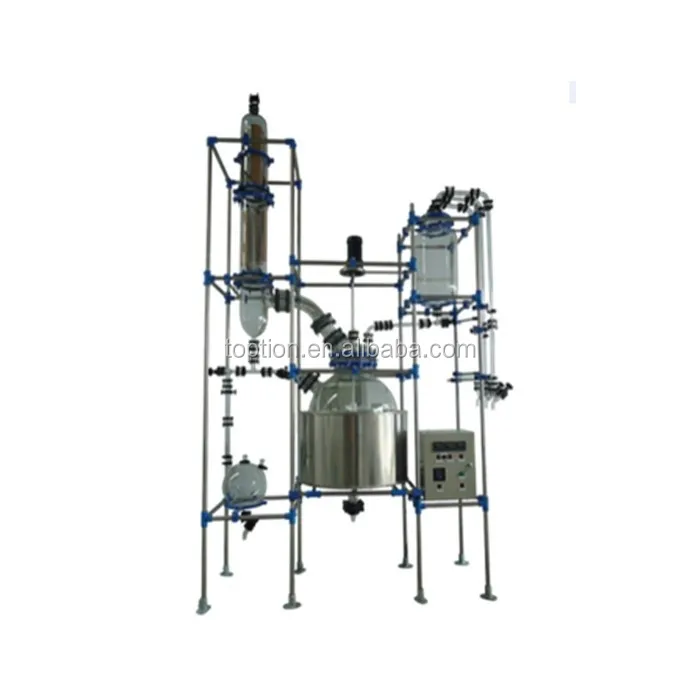

7.To do the rectification through assembling the rectifying pillar,realize reflow and distillation

1.Capacity:0.5L, 1L, 2L, 3L, 5L, 10L, 10L, 20L, 30L, 50L, 100L, 150L, 200L, 250L.
2.Oil bath type & electric heating mantle type, stainless steel & spray plastics are optional.
3.High temperature: RT-180℃(oil bath), RT-180℃(heating mantle). RT-300℃(heating mantle) can be customized.
4.Vacuum pump & vacuum controller are available, you can control the vacuum degree accurately.

Detailed Images

Heating mantle
Max heating temperature up to 300℃, heating quickly.
180-300°, can be customized

2-port liquid separator facility
Is able to separate liquid received of different weight. Advanced 3-port liquid separator system also available.

Cooling coil (optional)
Can be installed in heating bath and perform chilling function by getting through cooling liquid.

Functional configuration diagram of glass reactor

Key feature:

1. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;
2. Supporting glass using GG17 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;
3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;
4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;
5. Casters with brake fixed, it is convenient and reliable for mobile use;
6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;
7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;
8. Integral structure is scientific design and beautiful appearance, convenient for operation;
9. Explosion-proof series available.
