1.Qualified wooden case for export
2. Base on your needs
Shipped in 7 days after payment

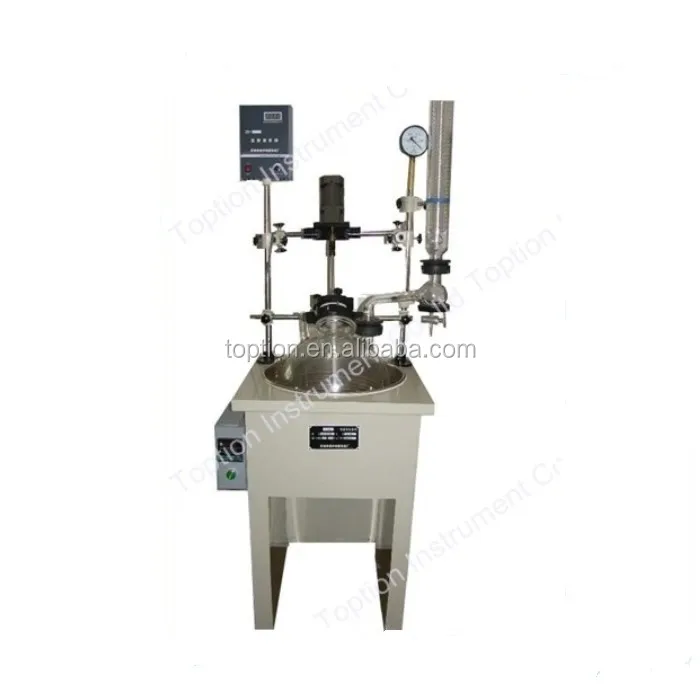

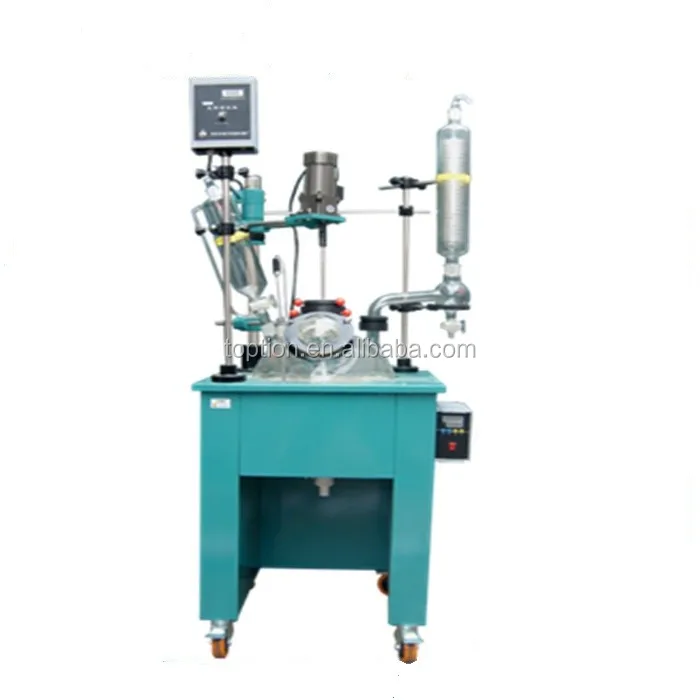

TST-5MP 5L single layer laboratory glass reactor with heating mantle
Single layer glass reactor is a full-closed equipment.It's a collaboration of vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can finish all kinds of biochemical reactions and synthesis reactions at a constant temperature condition.It's an ideal experimental and prodution equipment for morden synthetic chemical, biological, pharmaceutical, and new material research.
This TST-5MP 5L single layer laboratory glass reactor adopts GG17 high boron silicon as material and has eletric heating mantle,digital display.It's high quality has passed CE certification.
1.Vacuum stirring reaction 2.High temperature reaction 3.Low temperature reaction 4.Constant speed running mixing reaction 5.Distillation,reflux and condensation reaction 6.Negative pressure operation and separation 7.To do the rectification through assembling the rectifying pillar,realize reflow and distillation

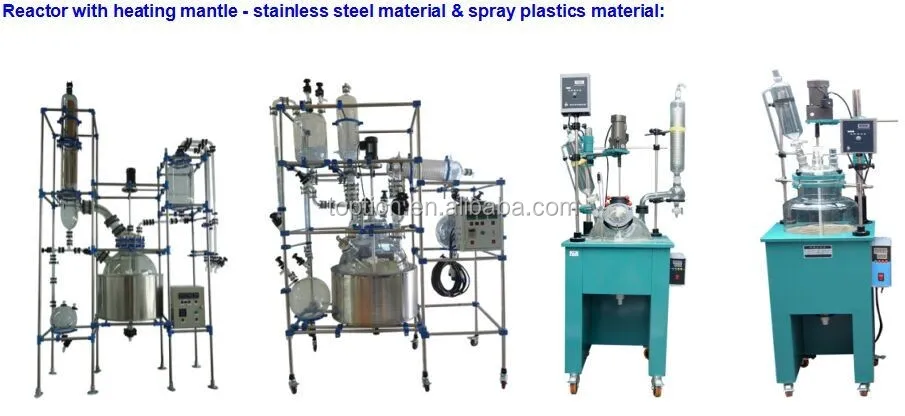

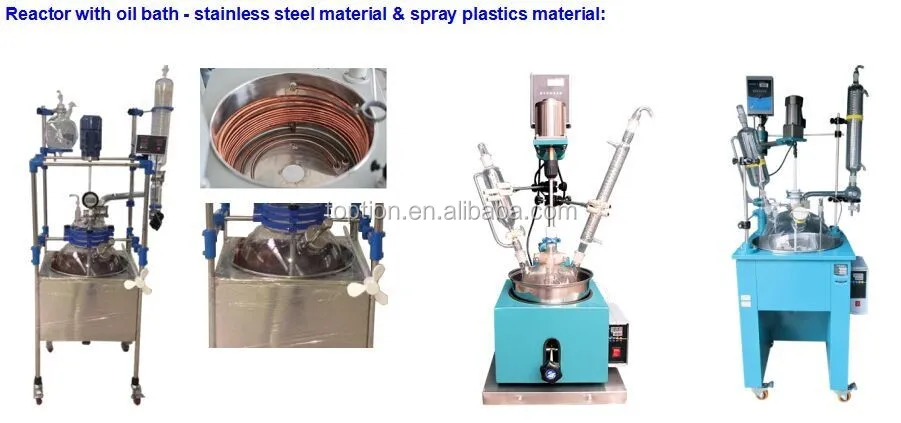

1.Capacity：0.5L, 1L, 2L, 3L, 5L, 10L, 10L, 20L, 30L, 50L, 100L, 150L, 200L, 250L. 2.Oil bath type & electric heating mantle type, stainless steel & spray plastics are optional. 3.High temperature: RT-180℃(oil bath), RT-180℃(heating mantle). RT-300℃(heating mantle) can be customized. 4.Vacuum pump & vacuum controller are available, you can control the vacuum degree accurately.
Heating mantle Max heating temperature up to 300℃, heating quickly. 180-300°, can be customized
2-port liquid separator facility Is able to separate liquid received of different weight. Advanced 3-port liquid separator system also available.

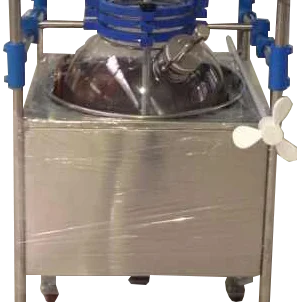

Cooling coil (optional) Can be installed in heating bath and perform chilling function by getting through cooling liquid.

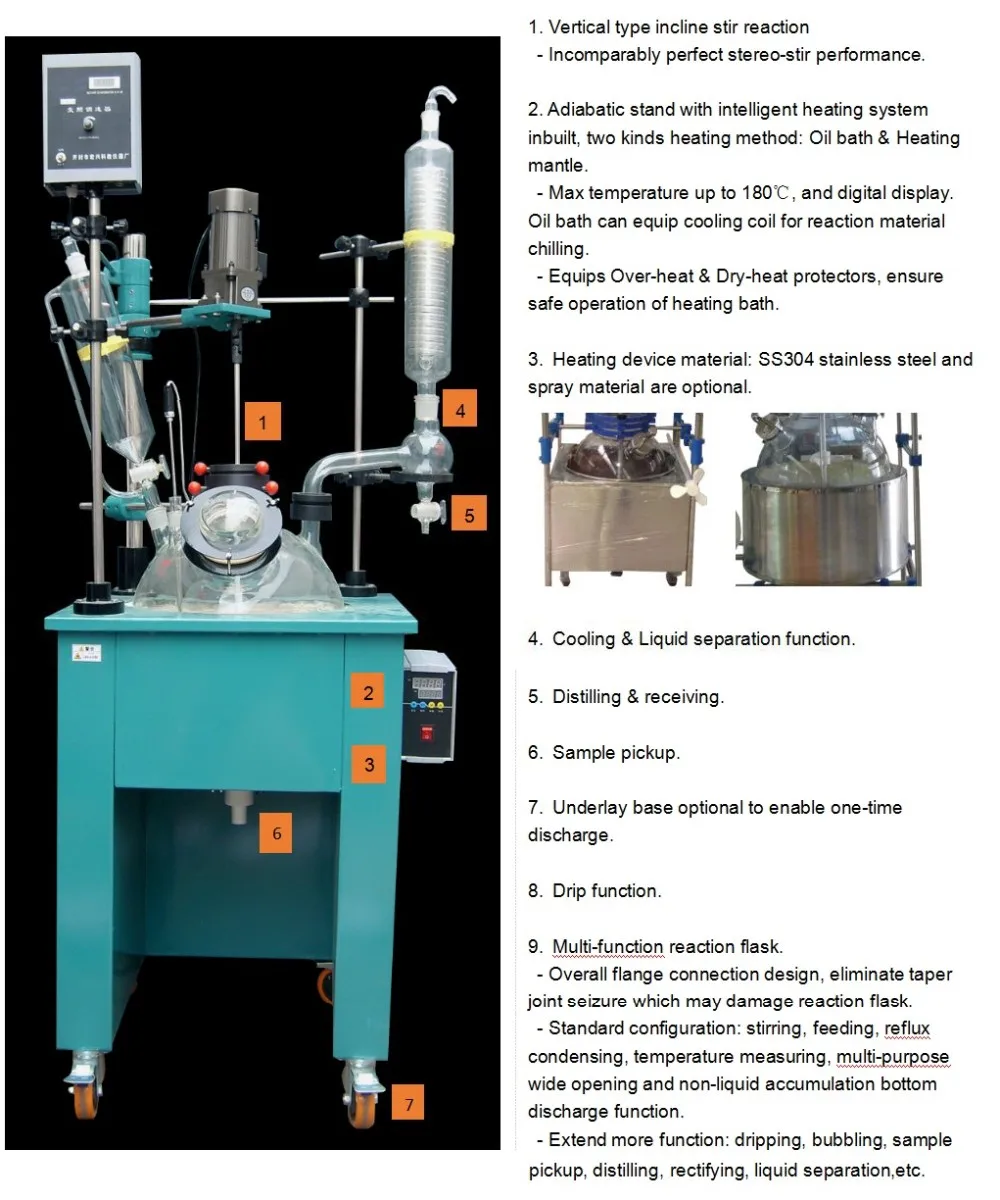

Functional configuration diagram of glass reactor

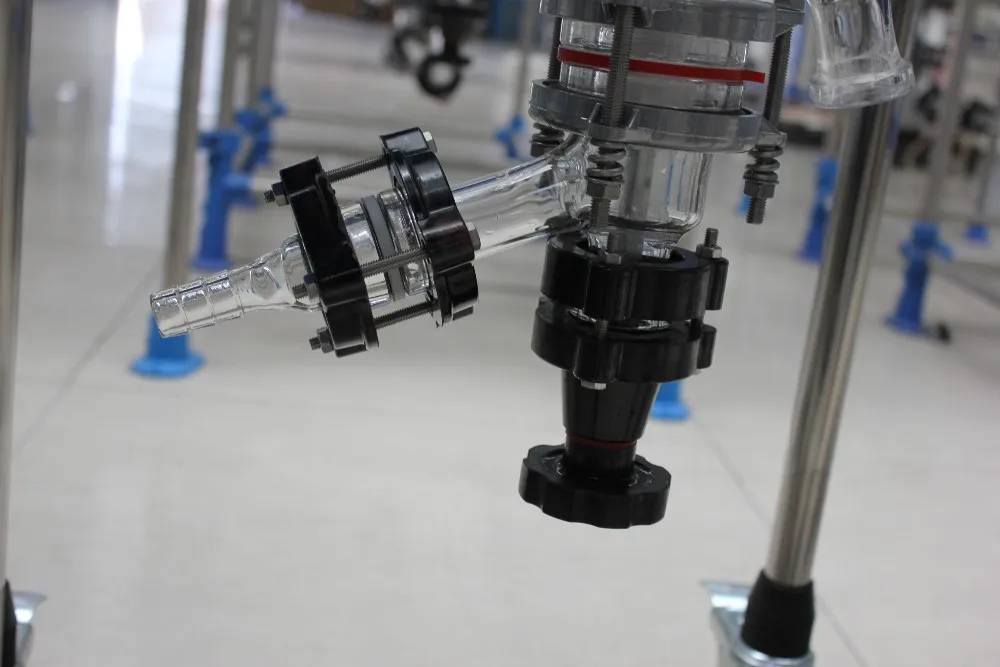

1. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously; 2. Supporting glass using GG17 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning; 3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products; 4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing; 5. Casters with brake fixed, it is convenient and reliable for mobile use; 6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom; 7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient; 8. Integral structure is scientific design and beautiful appearance, convenient for operation; 9. Explosion-proof series available. ( We can add the cooling coil and an anti-explosion device according to user's needs)
Packing & Delivery
-Standard wooden case. -Both neutral and customized packaging can be available.
Shipping: -We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own forward.
1. Inquiry and consulting support. 2. Quick response with detailed quotation 3.Confirm price, quantity, shipment, lead time and payment terms) 4.Make order and sealed PI. (Trade assuranceorder is recommend to new clients for securing payment)
After-Sales Service: 1. One year warranty for the products described here. 2. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly. 3.Reliable quality and thoughtful after-sale service: If you encounter problems when using our products, please contact us by telephone or e-mail, we will be ready to provide consulting, maintenance and other services immediately.
Q: What is your MOQ? A:1 set.
Q: How long is your delivery time? A: Generally it is within 3 working days after receiving the payment if the goods are in stock. Or it is 5-10 working days if the goods are not in stock, depending on order quantity.
Q: How to choose suitable equipment ? A:tell us your work flow and requirements ,then we will recommend you suitable equipment according to yourrequirements, application experience and feedback from our clients.
Q: How to solve the equipment trouble during using ? A: Please email us about problem with pictures or a small video will be better,we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.
