Analog And Digital Display Type Mini Spray Dryer 5l/h Lab Spray Dryer Machine / Milk Powder Spray Dryer

FOB Reference Price:Get Latest Price
US $10,000-11,000 / Sets | 1 Set/Sets rotary dryer price (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Spray Drying Equipment
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
TOPTION
Model Number:
TP-S50
Voltage:
380V 50HZ
Power(W):
10KW
Dimension(L*W*H):
1700*1100*1150mm
Weight:
245KG
Certification:
CE ISO
Max capacity:
5000ml/h
Temperature range of Inlet air:
140°C -300°C adjustable
Temperature range of outlet air:
80°C -90°C
Precision of temperature:
± 1 °C
Dryer time:
1.0-1.5 S
Speed of squirt pump:
5000ml/h
Spray direction:
downwards co-current
Total power:
10KW 380V
Stainless steel tank diameter:
800mm
Dried powder restoring rate:
≥95%
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
One Year
Supply Ability
Supply Ability:
10000 Set/Sets per Month rotary dryer price
Packaging & Delivery
Packaging Details
Packing of Analog And Digital Display Type Mini Spray Dryer 5l/h Lab Spray Dryer Machine / Milk Powder Spray Dryer:
1. Standard wooden case
2. Base on your needs
Port
Shanghai,China
Lead Time :
Within in 5-7days after payment
Video Description
Product Description

5L/H Spray Dryer Brief Introduction

1. Laboratory table top spray dryer is the latest type of TOPTION which adopts advanced international technology and spare parts.
2. TOPTION Laboratory Spray Dryer assembles many of new design, for example, small size for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and functions are controlled by PLC.

Technical Specification
Model
Unit
TP-S50
Max capacity
ml/h
5000
Temperature range of inlet air
140℃ ~ 300℃ Adjustable
Temperature range of outlet air
80℃ ~ 90℃

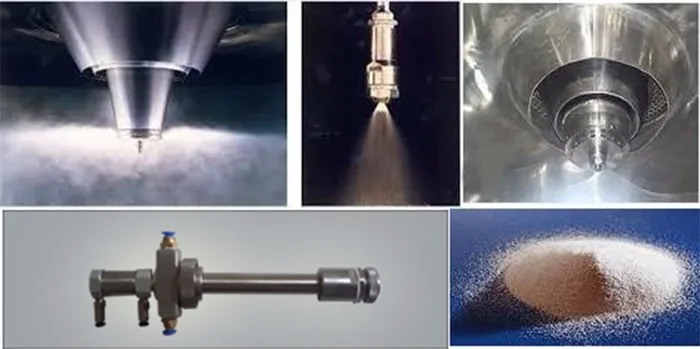

Spray system
/
Centrifugal nozzle
Precision of temp
±1
Dryer time
S
1.0 ~ 1.5
Speed of squirt pump
ml/h
5000
Spray direction
/
Downwards co-current
Heater Power
/
3KW 220V
Total power
/
10KW 380V
Heat source
/
Electric
Air compressor
/
Built-in oil-free air compressor
Dried powder restoring rate
%
≥95
Dimension
mm
1800*930*2200
Maximum moisture evaporation
Kg/h
5

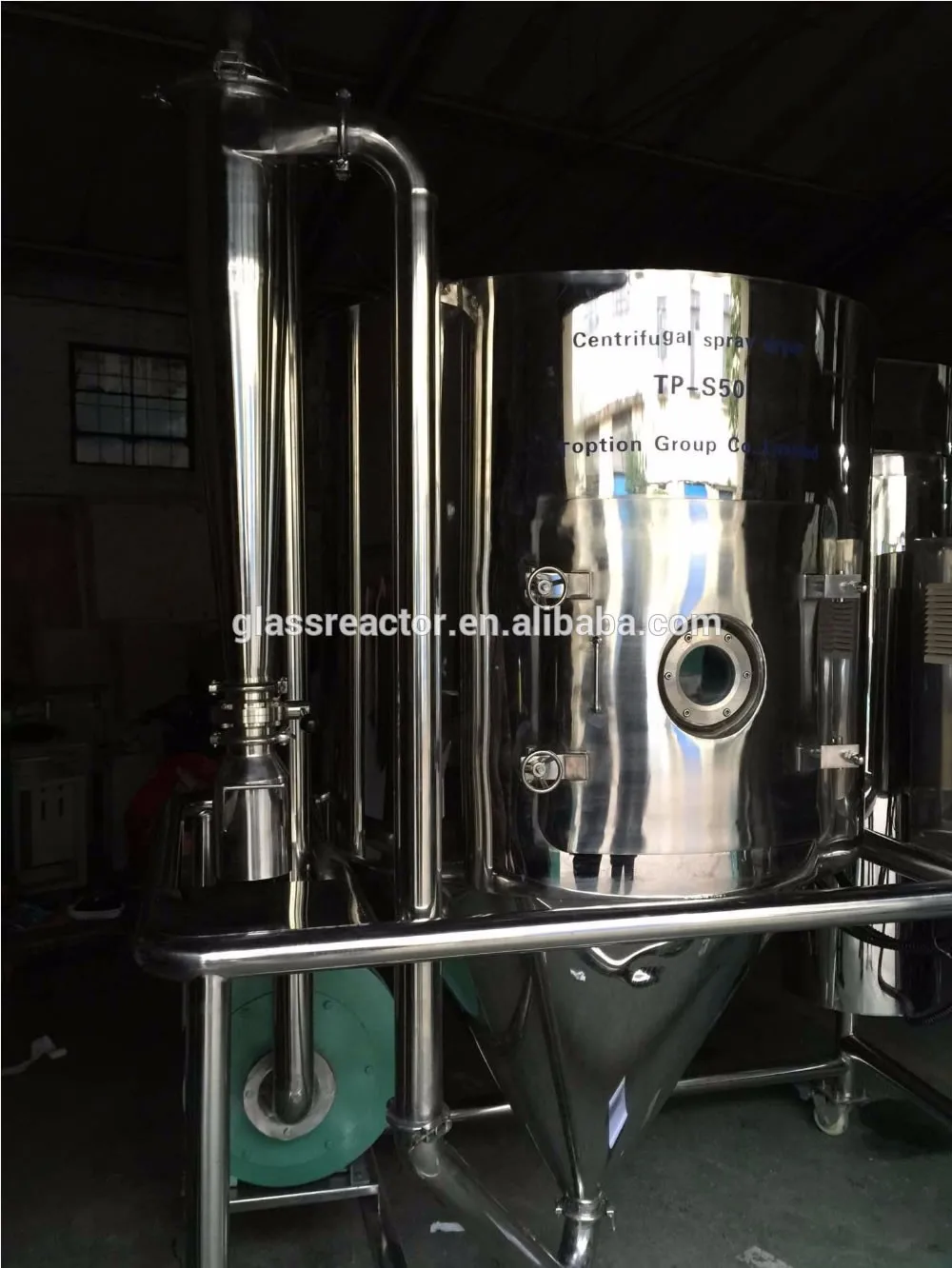

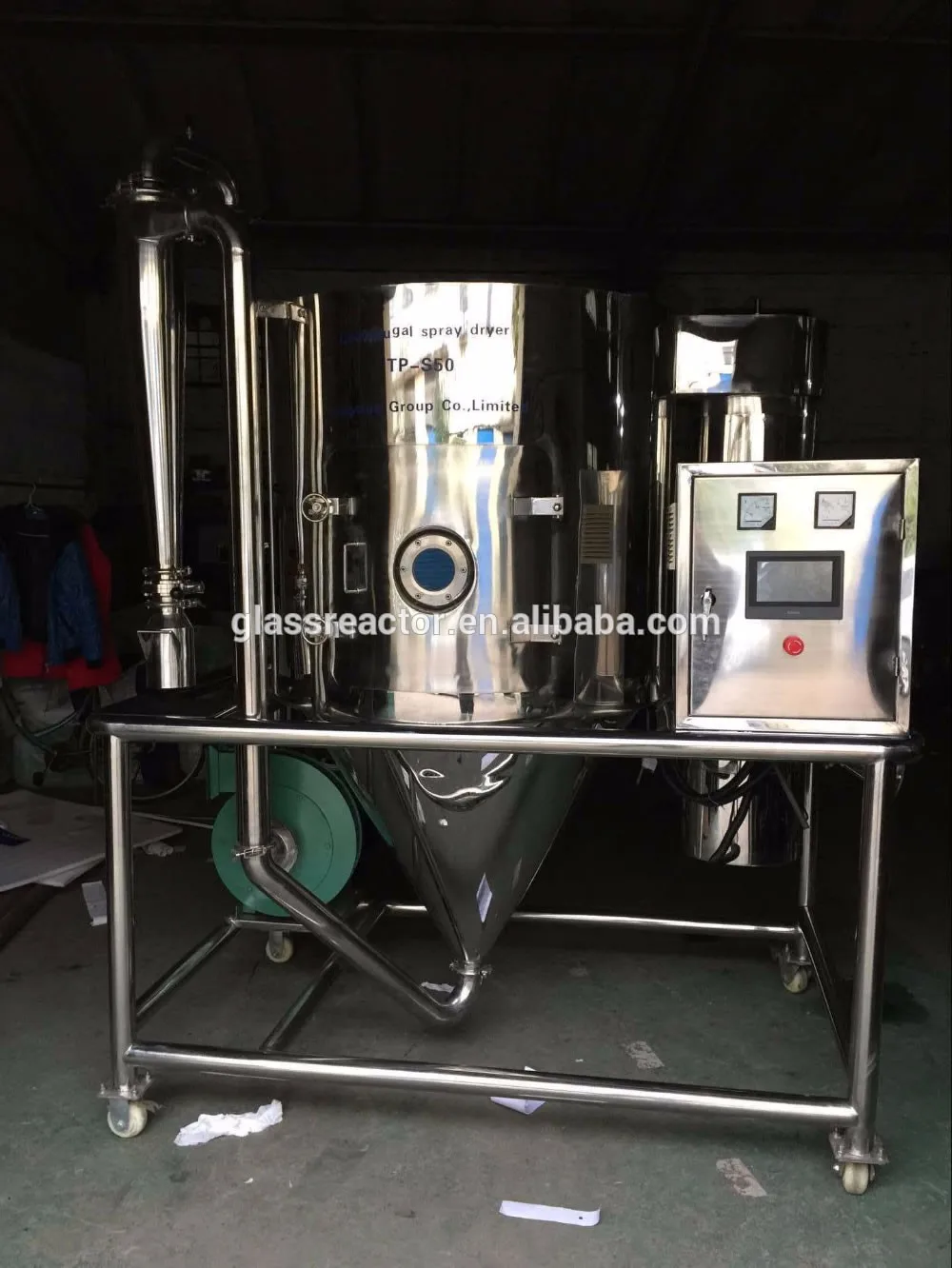

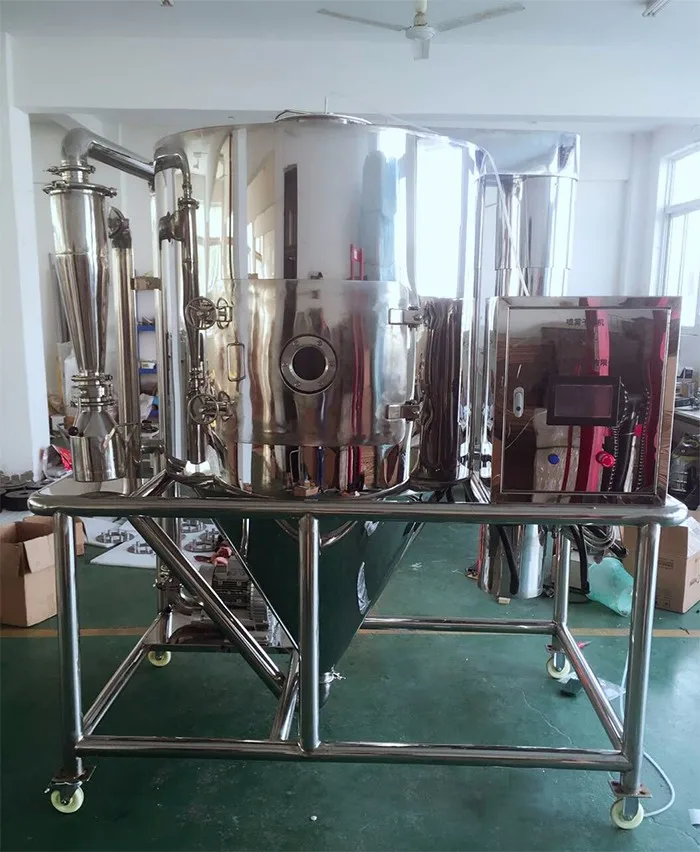

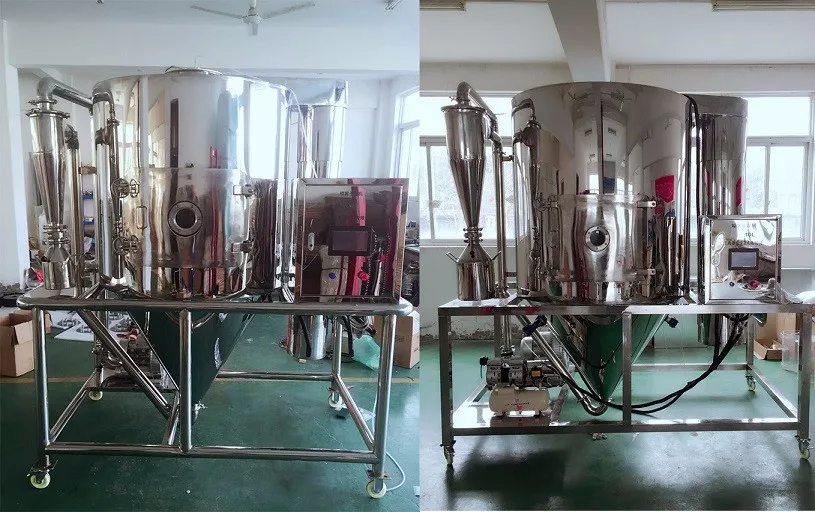

Detailed Images

Feature

1.Stainless steel material, arc corner design and polyester powder coated shell, prevents corrosion of acidity and alkaline air effectively.
2. Imported Schneider electrical components which is more stability.

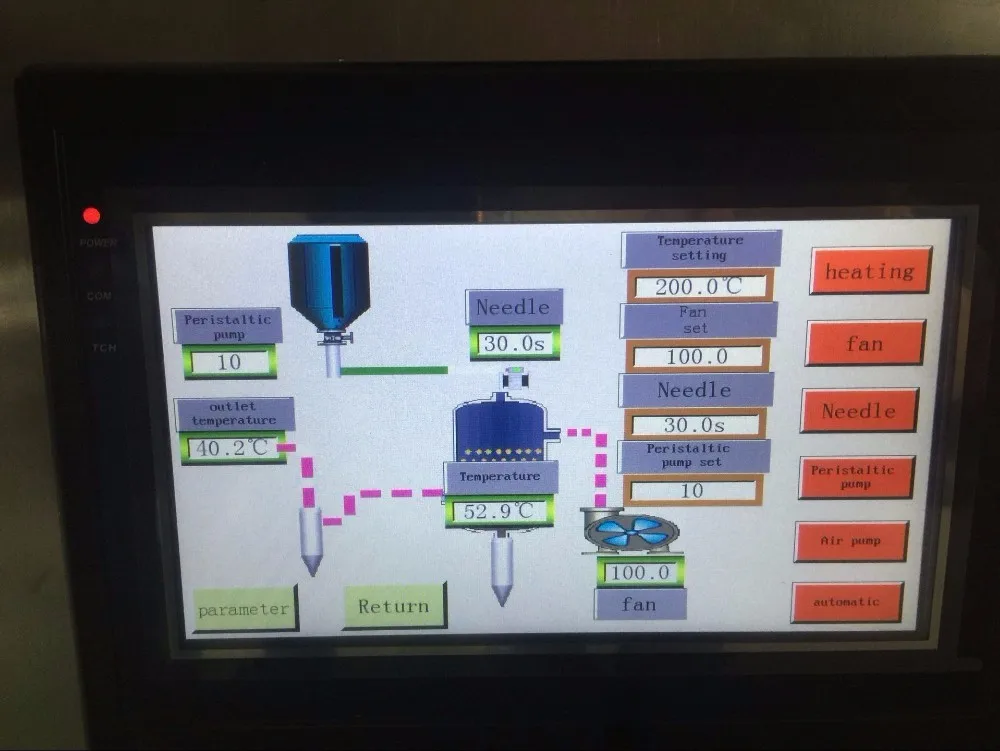

3. PLC control system, make your research more easier and efficient.
4. Build in oil-free air compressor, without any noise.
5. Self-priming peristaltic pump, avoid secondary pollution, make sure whole process conducted steady and smoothly.
6. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
7. Innovative tower wall purging device, improves the material recycling rate.
8. High speed of drying, after spraying of the material liquid, the surface area of material will be increased greatly, make your research more efficient.
9. In the hot-air flow, 95%~98% of water can be evaporated at a moment. You can finish material drying only in several seconds.
10. Especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.

Consequent

1.Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs.
2.Most solutions and supernsions can be spray dried providing.
3.Food, biology, material, pharmacy, university, and R&D institute.
4.Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.

Packing & Delivery

Shipping and packing

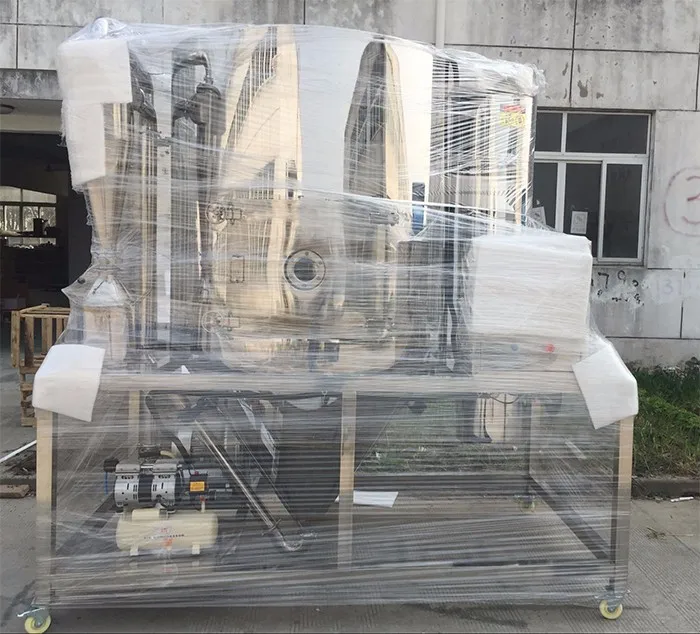

-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.

Certifications

TOPTION as a professional lab solution provider is specialized in manufacturing and selling photochemical glass reactor ,UV glass reactor system, xenon glass reactor, single-layer glass reactor,double-layer glass reactor, three-layer glass reactor,thermostatic equipment, ice maker, ultrasonic instrument, spray dryer, air dryer,extracting device and so on, who are work in chemistry, biology, pharmaceutical, environment analysis, food, academic research, etc. Regardless of the field you work in, we keep striving for the same goal: to provide you with the most suitable solutions & products, to make your research more accurate & efficient.

TOPTION has passed the “ISO9001:2008 Quality Management System”certification and most of our products have passed CE certification,the quality can be assured.

Our Company

Toption Instrument Instrument Co., Ltd is a famous manufacturer of lab equipment, located in the central china. We specialized in rotary evaporator, jacketed glass reactor, single layer glass reactor, high-pressure reactor, photochemical reactor, ultrasonic dispenser/homogenizer, freeze dryer(lyophilizer), spray dryer and so on.

Our Service

Pre-Sales Service

1.Inquiry and consulting support
2.Quick response with detailed quotation
3.Confirm price, quantity, shipment, lead time and payment terms
4.Make order and sealed PI. (Trade assuranceorder is recommend to new clients for securing payment)

After-Sales Service

1.One year warranty for the products described here.
2.Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
3.Reliable quality and thoughtful after-sale service:If you encounter problems when using our products,please contact us by telephone or e-mail,we will be ready to provide consulting,maintenance and other services immediately.

FAQ

Q: What is your MOQ of the 5L/H spray dryer?
A:1 set.

Q: How long is your delivery time of 5L/H spray dryer?
A: Generally it is within 3 working days after receiving the payment if the goods are in stock. Or it is 5-10 working days if the goods are not in stock, depending on order quantity.

Q: How to choose suitable 5L/H spray dryer?
A:tell us your work flow and requirements ,then we will recommend you suitable equipment according to yourrequirements, application experience and feedback from our clients.

Q: How to solve the equipment trouble during using ?
A:Please email us about problem with pictures or a small video will be better,we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.
