Packing of the Chemistry laboratory jacketed glass reactor reaction vessel:
1.Qualified wooden case for export
2. Base on your needs
Shipped in 7 days after payment

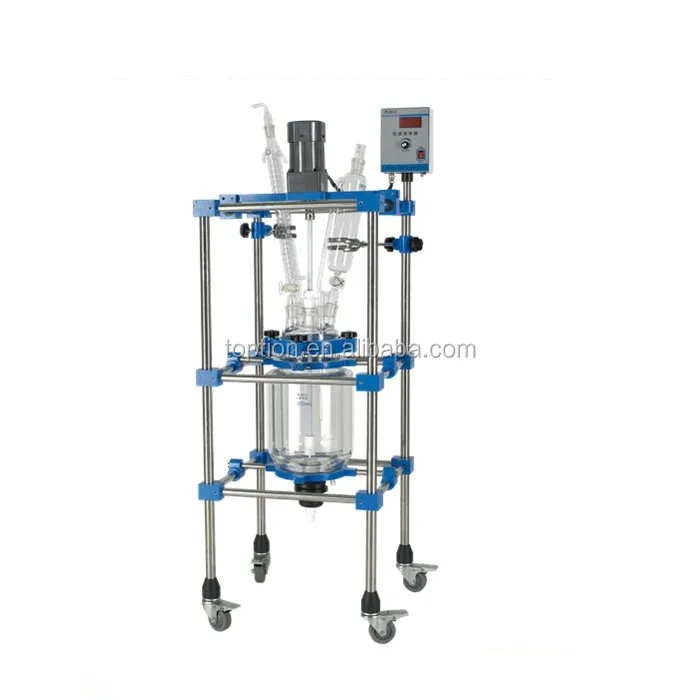

TOPT-150L Double Layer Pilot Jacketed Glass Lined Reactor/pressure reactor vessel
Toption Jacketed Glass Reactor are available with different options, depending upon their size & their utility. We will glad to assist you in finding a suitable solution for your process requirement.
Below options are available for Jacketed Glass Reactor Unit: 1. Stirrer Drive: Non-Flameproof or Flameproof Motor, 192 RPM with speed regulator. 2. Stirrer material of construction: Glass or PTFE Lined. 3. Stirrer shape: Glass Impeller Stirrer with PTFE Blades, Vortex Stirrer, propeller stirrer & anchor stirrer. 4. Stirring Assembly: Stirring Assembly with bellow seal or with mechanical seal. 5. Supporting Structure: Carbon Steel, Epoxy coated Carbon Steel, Stainless Steel 304 & Stainless Steel 316. All structure are available in Trolley mounted form. 6. Closing Valve: Drain Valve or Flush Bottom Outlet Valve.
This TOPT-150L Double Layer Pilot Jacketed Glass Lined Reactor/pressure reactor vessel adopts GG17 high boron silicon as material ,digital display.And it's high quality has passed CE certification.
GG17 high boron silicon
Stir medium flange
Liquid material inflow
DN40 ball mouth
Multi function valve
￠16mm single layer three blade paddle type
Reactor lid flange
Inner diameter of reactor body
Reactor body height
1. Custom sevice is welcome here. 2.we also have the match equipment for the glass reactor. 3.If the voltage and plug need to be replaced, pls give clear indication when in contact us.
1. Double glass reactor using VVVF, AC Induction Motor. Speed constant, no brush, no sparks, security staTOPTe, continuous working. 2. Complete glass reactor adopts GG17 high borosilicate glass production good chemical, physical properties. 3. Glass interlayer Interface communication on hot oil through cycle do Heating Reaction, Tung on cryoprotectants can be hypothermia reaction.
4. Can normal temperature reaction, pass last tap namely quickly will reflect heat away. 5. Decentralization material mouth with flange mouth and PTFE valve, container no dead corner detachaTOPTe easy solid materials outfeed. 6. 5 reactor lid, large mouth design easy clean standard mouth socket selectaTOP Te assem TOPT reflux, distillation synthesis device.
Side discharge valve (standard or preload)
No dead angle, air isolated discharge. Max drift diameter 20mm. Preload discharge valve is able to decrease flask crack risk due to improper over-screw of discharge valve. Customization of TOPTION big capacity glass reactors.
Flask cap (≥10L)
1) Charging valve - pure charge process without gel pollution. 2)Thermometer-direct measurement 3) Condenser - Ball joint connection, easy to assemble, with less vibration. 4) All taper joints upgrade to flanges, no seizure, no damage to glass necks.
Flange quick press ring
One-piece quick clip design. Offer new experience on easy, reliable, and high sealing connection .
PTFE flush discharge valve
No-sample accumulation in valve during operation and discharge. Max drift diameters is 20mm.
Glass reactor lid
Reactor stirring paddle
Packing & Delivery
-Standard wooden case. -Both neutral and customized packaging can be available.
Shipping: -We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own forward.
1. Inquiry and consulting support. 2. Quick response with detailed quotation 3.Confirm price, quantity, shipment, lead time and payment terms) 4.Make order and sealed PI. (Trade assuranceorder is recommend to new clients for securing payment)
After-Sales Service: 1. One year warranty for the products described here. 2. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly. 3.Reliable quality and thoughtful after-sale service: If you encounter problems when using our products, please contact us by telephone or e-mail, we will be ready to provide consulting, maintenance and other services immediately.
Q: What is your MOQ? A:1 set.
Q: How long is your delivery time? A: Generally it is within 3 working days after receiving the payment if the goods are in stock. Or it is 5-10 working days if the goods are not in stock, depending on order quantity.
Q: How to choose suitable equipment ? A:tell us your work flow and requirements ,then we will recommend you suitable equipment according to yourrequirements, application experience and feedback from our clients.
Q: How to solve the equipment trouble during using ? A: Please email us about problem with pictures or a small video will be better,we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.
