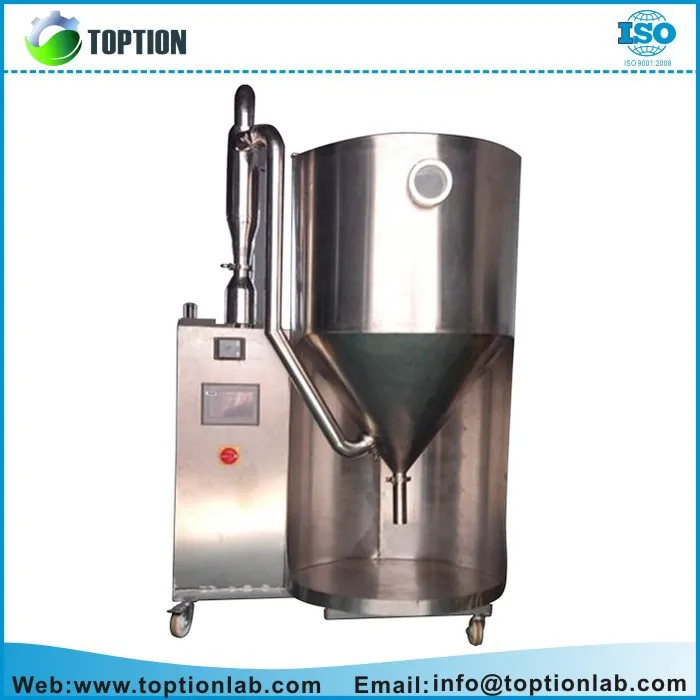

CE Small Scale Milk Powder Mini Lab Spray Dryer

FOB Reference Price:Get Latest Price
US $2,000-5,000 / Set | 1 Set/Sets centrifugal spray dryer (Min. Order)
Supply Ability:
10000 Set/Sets per Month centrifugal spray dryer
Port:
Shanghai,China
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Spray Drying Equipment
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
TOPTION
Model Number:
TP-S30C
Voltage:
380V 50HZ
Power(W):
10KW
Dimension(L*W*H):
1700*1100*1150mm
Weight:
145KG
Certification:
CE ISO
Warranty:
One Year
After-sales Service Provided:
Engineers available to service machinery overseas
Max capacity:
3000ml/h
Temperature range of Inlet air:
30°C -300°C
Temperature range of outlet air:
30°C -140°C
Precision of temperature:
± 1 °C
Dryer time:
1.0-1.5 S
Speed of squirt pump:
5000ml/h
Spray direction:
downwards co-current
Total power:
10KW 380V
Stainless steel tank diameter:
800mm
Dried powder restoring rate:
≥95%
Packaging & Delivery
Packaging Details
Packing of CE Small Scale Milk Powder Mini Lab Spray Dryer:
1. Standard wooden case
2. Base on your needs
Delivery Time
Within in 5-7days after payment
Product Description
Brief introdction

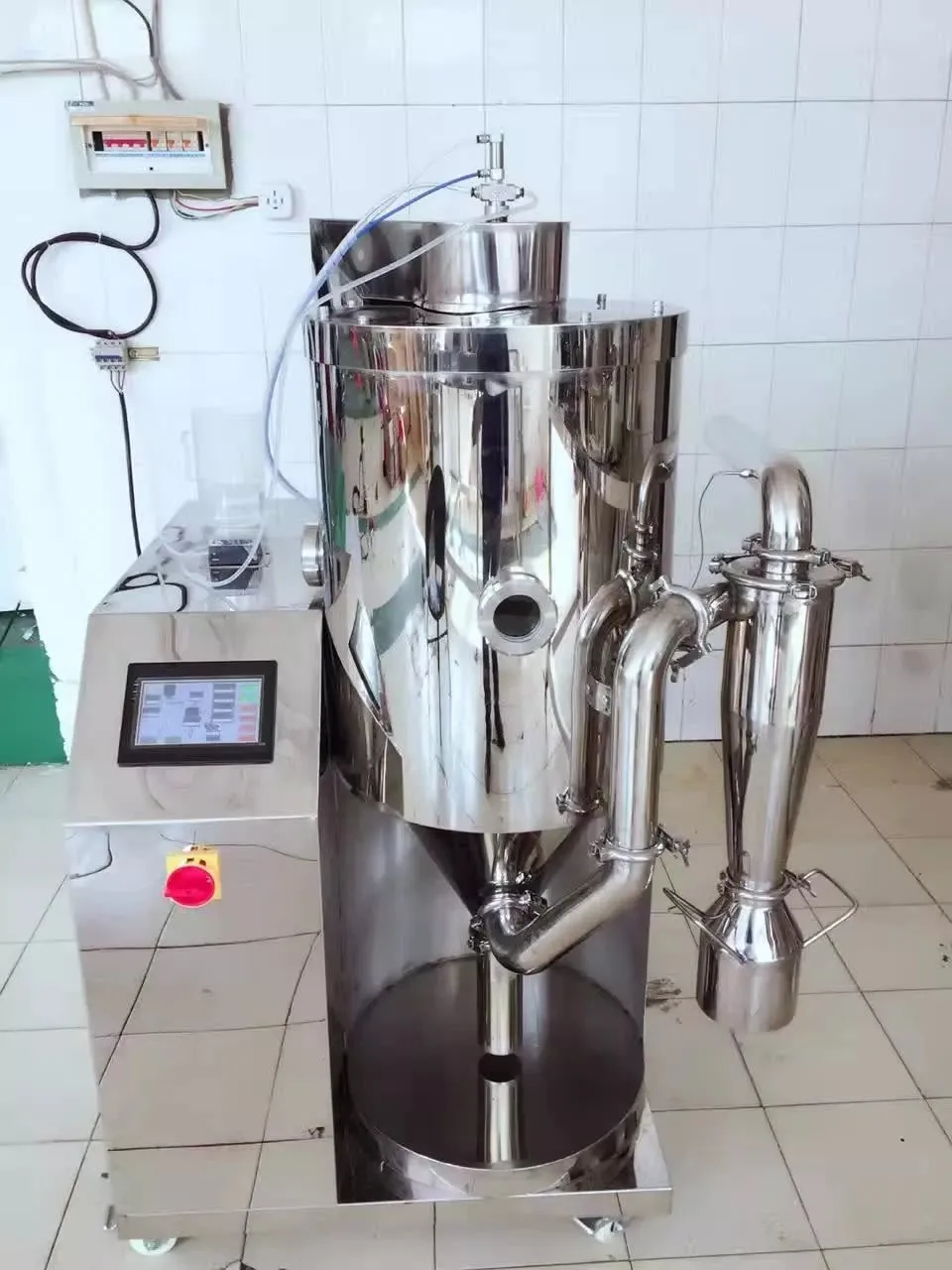

CE Small Scale Milk Powder Mini Lab Spray Dryer

Factory Spray Dryer
Lab Spray Dryer
Easy operation
LCD touch screen
Max capacity:3000ml
Two-Fluid Airflow Spray Nozzle or Centrifugal

Key feature

CE Small Scale Milk Powder Mini Lab Spray Dryer

1.Stainless steel material, arc corner design and polyester powder coated shell, prevents corrosion of acidity and alkaline air effectively.
2. Imported Schneider electrical components which is more stability.
3. PLC control system, make your research more easier and efficient.
4. Build in oil-free air compressor, without any noise.
5. Self-priming peristaltic pump, avoid secondary pollution, make sure whole process conducted steady and smoothly.
6. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
7. Innovative tower wall purging device, improves the material recycling rate.
8. High speed of drying, after spraying of the material liquid, the surface area of material will be increased greatly, make your research more efficient.
9. In the hot-air flow, 95%~98% of water can be evaporated at a moment. You can finish material drying only in several seconds.
10. Especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.

Technical specification
Item
Unit
TP-S15
TP-S30
TP-S30C
TP-S50
TP-S100
Max capacity
ml/h
1500-2000
3000
3000
5000
10000
Temperature range of inlet air
40℃ ~ 300℃
30℃ ~ 300℃
30℃ ~ 300℃
140°C ~ 300°C Adjustable
50°C ~ 300°C
Temperature range of outlet air
40℃ ~ 140℃
30℃ ~ 140℃
30℃ ~ 140℃
80°C ~ 90°C
30°C ~ 150°C
Spray system
/
Two-fluid nozzle
Two-fluid nozzle
Centrifugal nozzle
Centrifugal nozzle
Centrifugal nozzle
Precision of temp
±1
Dryer time
S
1.0 ~ 1.5
Speed of squirt pump
ml/h
50 ~ 2000
3000
3000
5000
10000
Nozzle size
mm
0.5/0.7/0.75/1.0/1.5/2.0
/
Spray direction
/
Downwards co-current
Heater Power
/
3KW 220V
Total power
/
10KW 380V
Heat source
/
Electric
Air compressor
/
Built-in oil-free air compressor
Dried powder restoring rate
%
≥95
≥98
Dimension
mm
940*850*
1500
1700*1100*
150
1700*1100*
150
1800*930*
2200
2500*1600*
2800
Maximum moisture evaporation
Kg/h
2
3
3
5
10

Note:

The bold font part is the Techincal Parameters of TP-S30, the other are the homologous products's parameters , you can refer to this table to choose the suitable product for you.

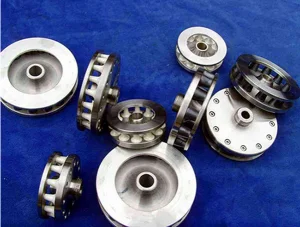

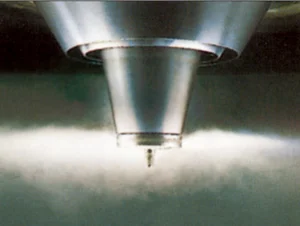

                            Centrifugal Type                                                            Two-fluid Type

Application

CE Small Scale Milk Powder Mini Lab Spray Dryer

1.Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs.

2.Most solutions and supernsions can be spray dried providing.

3.Food, biology, material, pharmacy, university, and R&D institute.

4.Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.

Detailed Images
Schematic diagram

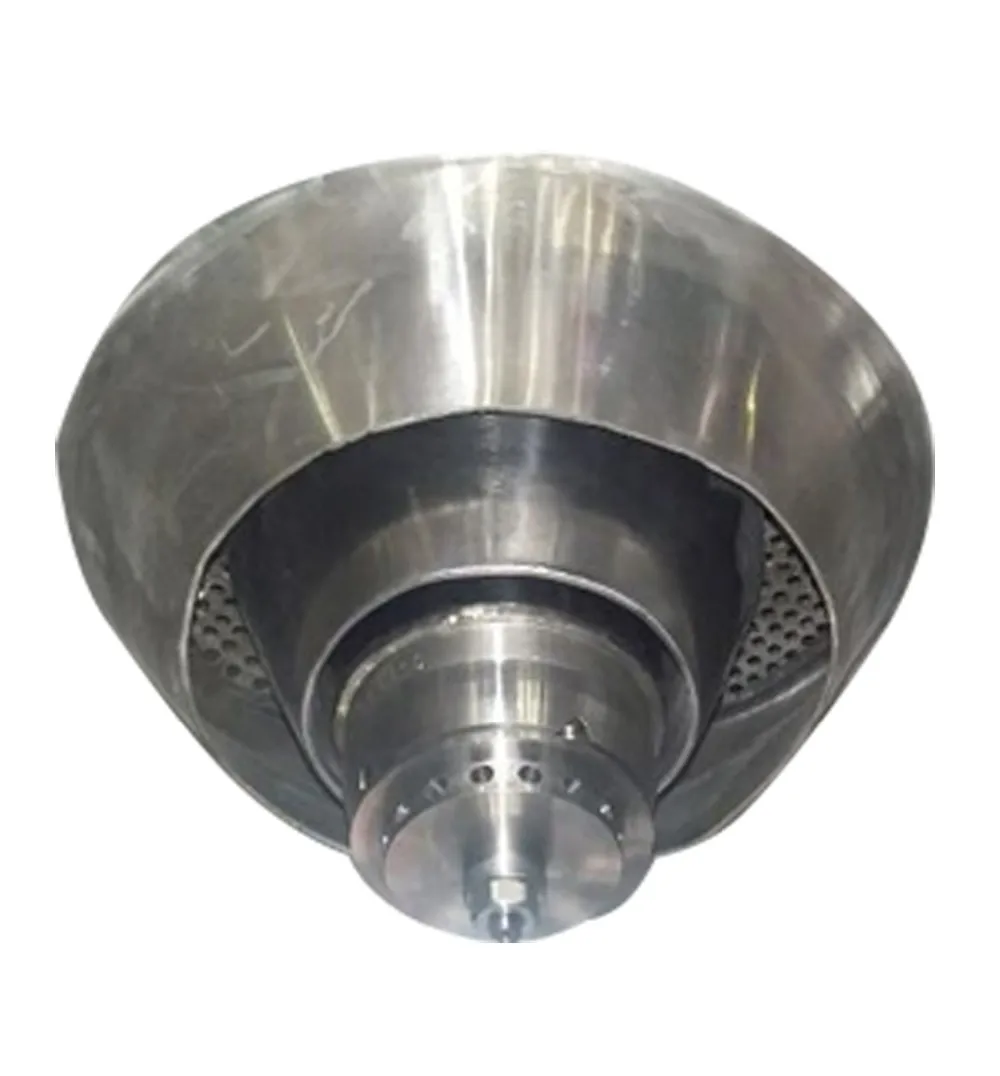

Air through filtering and heating, enter the hot air distributor which is at the top of spray dryer, hot air spiraling evenly into the drying chamber. Liquid through the high-speed centrifugal automizer which is at the top of drying chamber, (rotating) centrifugal spray into tiny fog droplet, then contact with the hot air flow, drying finish product in a very short time and whereabouts. Finished product output continuously between the drying tower bottom and cyclone separator, exhaust through dust catcher emptying by induced draft fan.

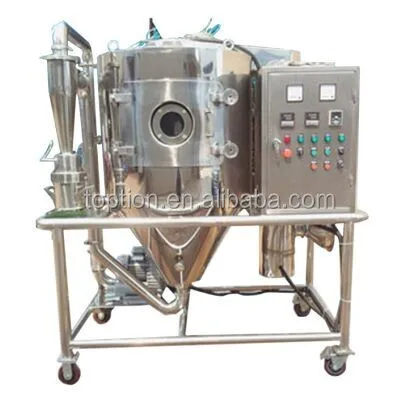

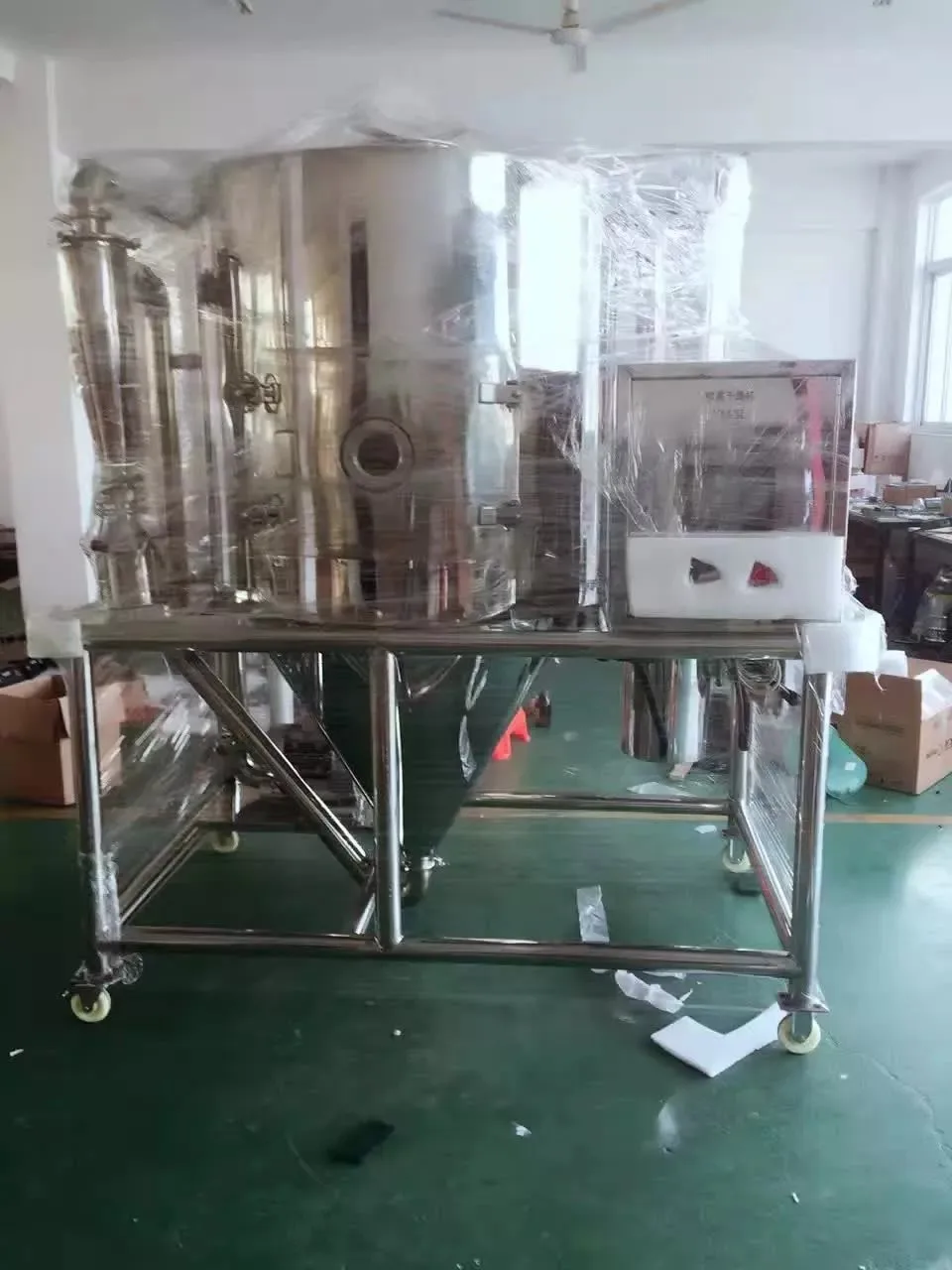

Factory spray dryer

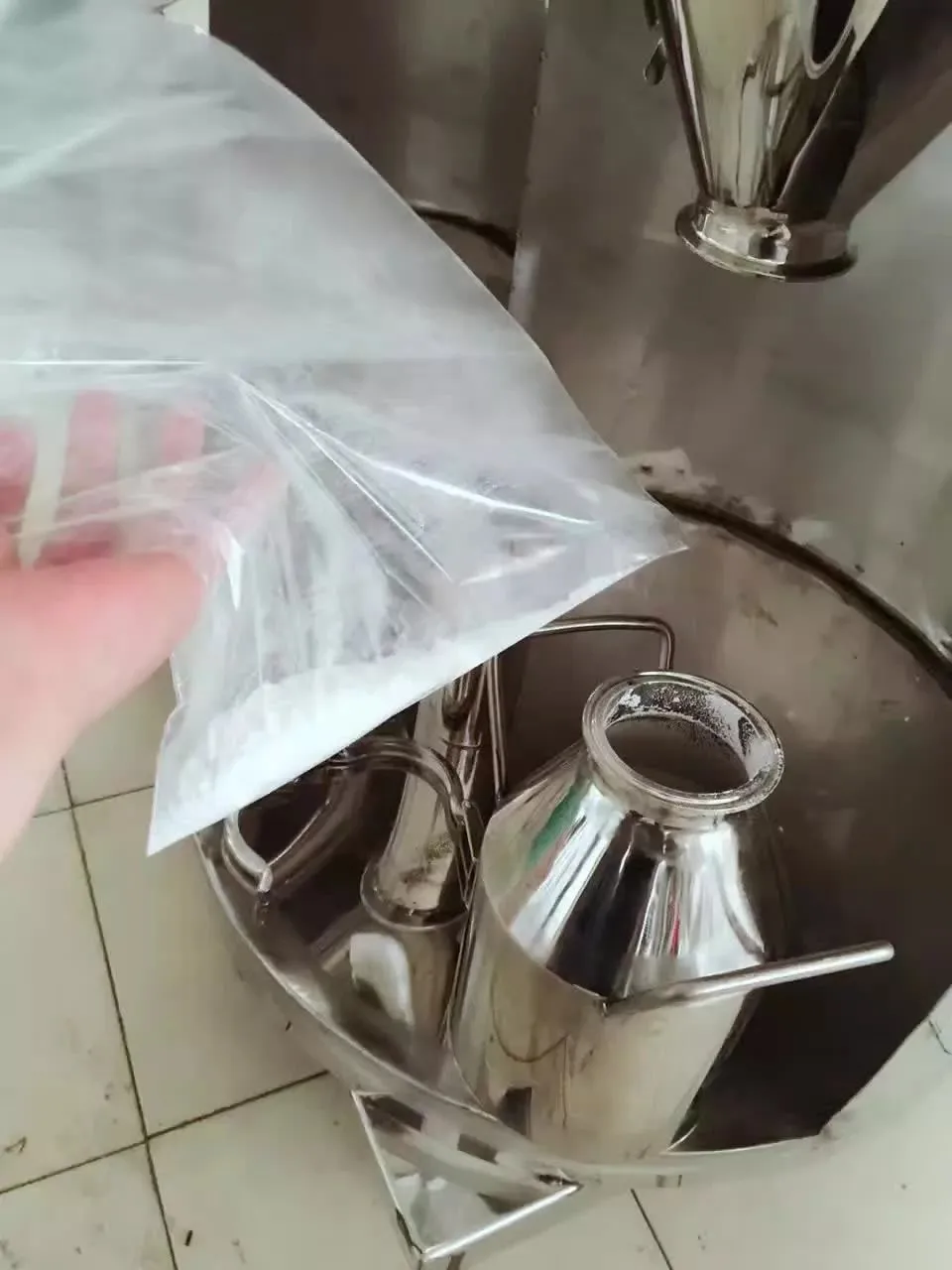

Drying effection

Food and plants: oats, chicken juice, coffee, instant tea, seasoning spices meat, protein, soybeans, peanut protein, hydrolysates and so on.
Carbohydrate: corn pulp, corn starch, glucose, pectin, maltose, potassium sorbate and so on.
Chemical industry: battery raw materials, alkaline dye pigments, dyes intermediates, compound fertilizer, formaldehyde silicic acid, catalysts, agents, amino acids, white carbon black and so on.

Certifications

TOPTION as a professional lab solution provider is specialized in manufacturing and selling photochemical glass reactor ,UV glass reactor system, xenon glass reactor, single-layer glass reactor,double-layer glass reactor, three-layer glass reactor,thermostatic equipment, ice maker, ultrasonic instrument, spray dryer, air dryer,extracting device and so on, who are work in chemistry, biology, pharmaceutical, environment analysis, food, academic research, etc. Regardless of the field you work in, we keep striving for the same goal: to provide you with the most suitable solutions & products, to make your research more accurate & efficient.

TOPTION has passed the “ISO9001:2008 Quality Management System”certification and most of our products have passed CE certification,the quality can be assured.

Related Products

We can also supply 25kg/h, 50kg/h, 100kg/h, 150kg/h, 200-2000kg/h spray dryer, welcome to consult!!!

Model
TP-S25L
TP-S50L
TP-S100L
Inlet temp. (℃)
≤350℃
Outlet temp. (℃)
<80-90℃
The largest water evaporation (kg/h)
25
50
100
Centrifugal spray head drive mode
Mechanical drive
Rotate speed
22000
21500
18000
Heat source
Electric
Electric + steam; Fuel oil; Coal gas
Electric + steam
Dimension L*W*H
3*2.7*4.26
3.7*3.2*5.1
4.6*4.2*6
Dry powder recycle
≥95%
