Overview
Quick Details
Condition:
New
Type:
Freeze Drying Equipment
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
TOPTION
Model Number:
TOPT-10D
Voltage:
220V 50HZ
Power(W):
970w
Dimension(L*W*H):
mini freeze dryer
Weight:
mini freeze dryer
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Name and Model:
TOPT-10D
Freeze Drying Area:
0.08 m2
Cold trap temperature:
-55 (optional -80) ℃
Vacuum:
<10 Pa
Water-capture capacity:
3~4 Kg/24h
Material tray:
DIA 180 mm
Tray number:
3 layer
Whole power:
970w
Liquid capacity:
0.8L
Dimension:
565*420*(360+430)(mm)
Packaging & Delivery
Packaging Details
wooden packing as exported
Delivery Time
within 7 days after payment
Product Description

TOPT-10 Series Freezing dryer is a new desktop Freezing dryer device, suit for freeze-dring experiment in laboratory and a small amount production.
The series include: common type, capping type, branch manifold common type, branch manifold capping type.

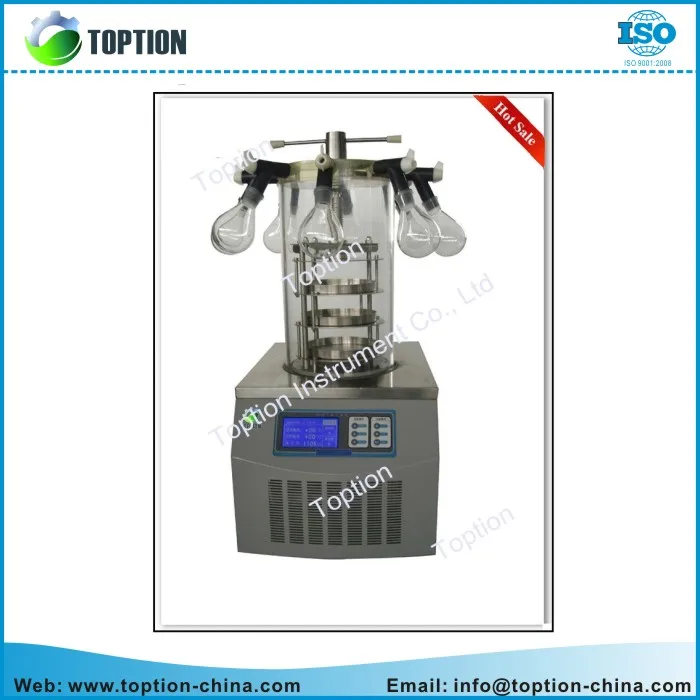

TOPT-10D Multi-pipe Top-press Vacuum Freeze Dryer





Technical Parameter



TOPT-10D Multi-pipe Top-press Vacuum Freeze Dryer



1. cold trap temperature: <-55,-80(is optional)

2. vacuum degree: <10Pa

3. freeze-drying area: 0.08m2

4. water-capture capability: 3-4Kg/24h

5. material: 0.8L

6. material tray:

Dia 180mm, 3layers

Dia 12mm xilin bottle: 560

Dia 16mm xilin bottle: 285

Dia 22mm xilin bottle: 165

7. power:970W

8. dimension: 565*420*(360+430)(mm)

Related product



                       TOPT-10A                                                         TOPT-10B



                    TOPT-10C                                                            TOPT-10D



                      TOPT-10E                                                         FD-1A-50

Related pump:



                       2XZ-X                                                               SHB-895
