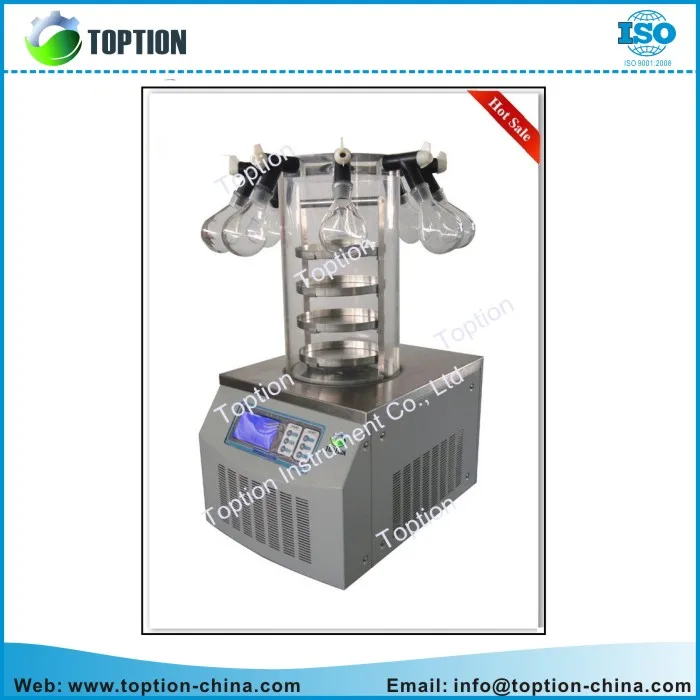

Toption Multi-pipe Vacuum food freeze dryer TOPT-10C

FOB Reference Price:Get Latest Price
US $3,000-4,500 / Sets | 1 Set/Sets food freeze dryer (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Freeze Drying Equipment
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
TOPTION
Model Number:
TOPT-10C
Voltage:
220V
Power(W):
970w
Dimension(L*W*H):
food freeze dryer
Weight:
food freeze dryer
Certification:
CE ISO
Warranty:
One Year
After-sales Service Provided:
Overseas service center available
Freeze drying area:
0.12M2
Cold trap temperature:
-55℃
Vacuum degree:
<10Pa
Water capture capacity:
3-4Kg/24h
Material tray:
200 mm
Tray number:
4 (optional 6) layer
Whole power:
970 W
Main frame size:
565*420*(360+430)(mm)
Liquid capacity:
1.2 L
Main frame weight:
40 Kg
SupplyAbility
SupplyAbility:
3000 Piece/Pieces per Year food freeze dryer
Packaging & Delivery
Packaging Details
Standard wooden case.
Both neutral and customized packaging can be available.
Port
shenzhen/qingdao/zhejiang/tianjin
Lead Time :
within 3-7 days
Product Description

TOPT-10 Freezing dryer is a new desktop Freezing dryer device, suit for freeze-drying experiment in laboratory and a small amount production.

The series include: common type, capping type, branch manifold common type, branch manifold capping type.



TOPT-10 Multi-pipe



Key Features



1. Imported compressor, high capability of water-capture, low noise;
2. Match the green environmental protection of international standard;
3. Big openings of the cold trap, without coil pipe inside, have pre-freeze function;
5. Small volume, convenient operation;
6. Transparent bell-cap drying room is safe and visual;
7.The pre-cooling shelf can be used as draft tube, so it can accelerate the speed of drying;
8. International standard vacuum pump interface may connect varied vacuum pump;
9. Cold trap and operation panel are all stainless steel, corrosion-resistant and bright;
10.Communication interface is optional;
11.Valve with nitrogen is optional;
12. Dual-machine cascade refrigeration is optional. The technology is mature. The temperature is low (apply -80
device).

Technical Parameter

 TOPT-10C Multi-pipe Vacuum Freeze Dryer

1. cold trap temperature: <-55,-80(is optional)

2. vacuum degree: <10Pa

3. freeze-drying area: 0.12m2

4. water-capture capability: 3-4Kg/24h

5. material: 1.2L

6. material tray:

Dia 200mm, 4 layers

Dia 12mm penicillin bottle: 920

Dia 16mm penicillin bottle: 480

Dia  22mm penicillin bottle: 260

7. power: 970W

8. dimension: 565*420*(360+430)(mm)

Related product



                                TOPT-10A                                                       TOPT-10B





                                        TOPT-10D                                                            TOPT-10E
