10L Toption In-situ Silicone Oil Heating Food Industries Large Freeze Dryer TPV-100F

FOB Reference Price:Get Latest Price
US $21,000-30,000 / Sets | 1 Set/Sets Large freeze dryer (Min. Order)
Report Suspicious Activity
Quick Details
Freeze Drying Equipment
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
Model Number:
TPV-100F Large freeze dryer
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
TPV-100F Large freeze dryer
layers of partition board:
6+1 layers
temperature scope of partition board:
partition board temperature error:
partition board space:
Freeze-drying area:
cold trap temperature:
water-capture capability:
defrost style:
electric defrost
Supply Ability
Supply Ability:
3000 Set/Sets per Year vacuum freeze dryer machine
Packaging & Delivery
Packaging Details
wooden packing as exported
Lead Time :
within 7 days after payment
Product Description
Description of  10L Toption  In-situ Silicone Oil Heating Food Industries Large Freeze Dryer TPV-100F

Vacuum freeze-drying technique, referred to as freeze-drying, also known as sublimation drying. Widely used drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.

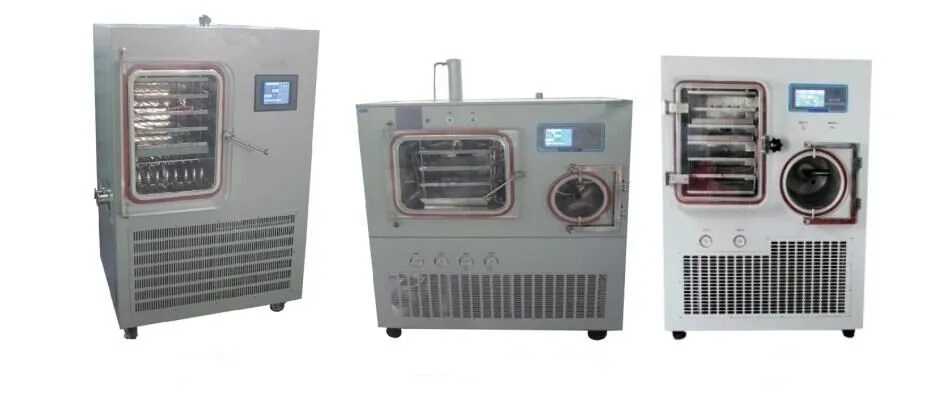

1. TPV-20F/30F/50F/100F (silicon oil heating) freeze dryer , freezing and drying process made in situ.
2. It changes the complex operation and prevent sample pollution,and make drying automation. These models has shelf heating and programmable functions.
3. They can records freeze drying curves, data can be output by U-disk.User can clearly view the freeze drying process

TPV-100F large freeze dryer

Key Features

Key feature of 10L Toption  In-situ Silicone Oil Heating Food Industries Large Freeze Dryer TPV-100F
1.The process of prefreezing and drying finishes in situ. The freeze dryer is equipped with observation windows and the drying process is automatic;
2.The Temperature error is less than or equal 1℃. The drying effect is uniform;
3.The partition-board temperature is adjustable and controlled;
4.Stored 32programs, each program can be set up 36 segments, correct program data in computing, memorize the drying curve;
5.The drying chamber and cold trap is separated so the water-capture capability is higher and the drying time is shorter;
6.Touching-screen operation, PID controlling, displaying drying curve;
7.The sample tray is square so it’s easy to clean and operate;
8.Configuration of the inflation valve, rechargeable dry inert gas;
9.The drying chamber adopts transparent organic glass door the changing process of material is clear;
10. The test device is optional.
Note: TOPT-100F control system is PLC.

Freeze Dried room picture.jpgfreeze dryer.jpgTPV-100F FREEZE DRYER.jpg

Technical Parameter

Technical parameter of 10L Toption  In-situ Silicone Oil Heating Food Industries Large Freeze Dryer TPV-100F

1. freeze-drying area:1.0M2

2. layers of partition board:6+1 layers

3. temperature scope of partition board:-50~70

4. partition board temperature error: ±1(ambulance)

5. partition board space:70mm

6. size of partition board:360*480*15

φ22 bottle:2112

φ16 bottle:4092

φ12 bottle:7920

7. cold trap temperature:≤-70(empty)

8. water-capture capability:15kg/24h

9. material:10L

10. defrost style: electric defrost

11. vacuum degree:≤10Pa

12. dimension:1020*750*1700(mm)

13. weight: 680Kg

freeze dryer02.jpg
