TOPTION 10L centrifugal rotary atomizer laboratory spray dryer price TP-S100

FOB Reference Price:Get Latest Price
US $17,000-20,000 / Sets | 1 Set/Sets laboratory spray dryer price (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Spray Drying Equipment
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
TOPTION
Model Number:
TP-S100
Voltage:
220V 50HZ
Power(W):
10kw
Dimension(L*W*H):
2500*1600*2800mm
Weight:
laboratory spray dryer price
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Model:
TP-S100
Max capacity(ml/h):
10000
Temperature range of inlet air:
50℃ ~ 300℃
Temperature range of outlet air:
30℃ ~150℃
Spray system:
Centrifugal nozzle
Precision of temp(℃):
±1
Dryer time(s):
1.0 ~ 1.5
Speed of squirt pump(ml/h):
10000
Spray direction:
Downwards co-current
Supply Ability
Supply Ability:
3000 Set/Sets per Year laboratory spray dryer price
Packaging & Delivery
Packaging Details
wooden packing as exported
Port
shenzhen/qingdao/tianjin
Lead Time :
within 7 days after payment
Product Description

 Hot sale TP-S100  spray dryer& spray dryer machine&spray drying equipment :

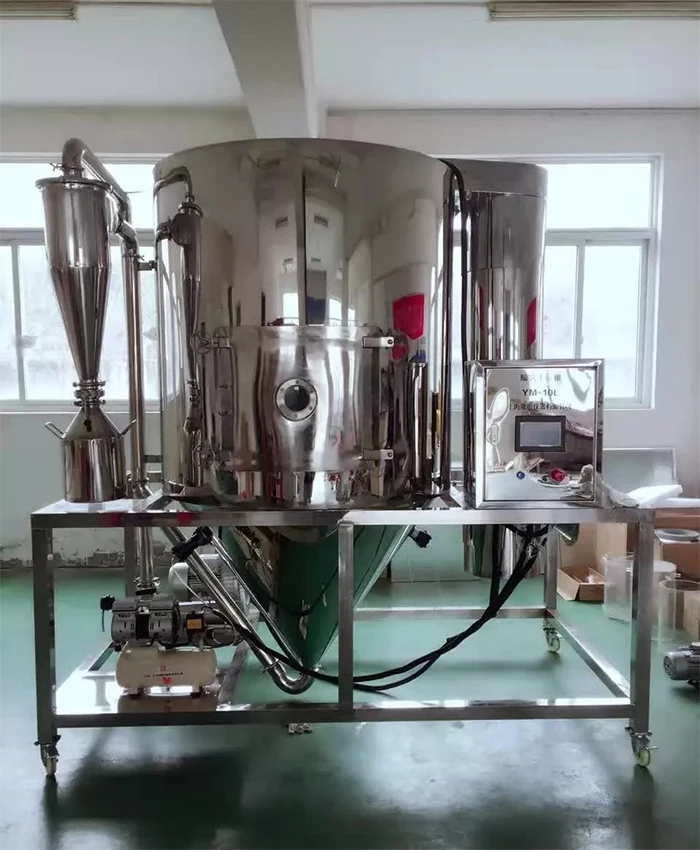

This  spray dryer has Stainless steel shell and arc corner design.Equip with imported Schneider electrical components,PLC control system,self-priming peristaltic pump and oil-free air compressor,is suitable for producing solid powder or particle products from liquid materials drying,such as  emulsion, suspending liquid, liquor and so on.



It is  widely used in drying Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.



TP-S50 (2).jpg


.jpg (2).jpg

Key Features

1. Stainless steel material, arc corner design and polyester powder coated shell, prevents corrosion of acidity and alkaline air effectively.

2. Imported Schneider electrical components which is more stability.

3. PLC control system, make your research more easier and efficient.

4. Build in oil-free air compressor, without any noise.

5. Self-priming peristaltic pump, avoid secondary pollution, make sure whole process conducted steady and smoothly.

6. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.

7. Innovative tower wall purging device, improves the material recycling rate.

8. High speed of drying, after spraying of the material liquid, the surface area of material will be increased greatly, make your research more efficient.

9. In the hot-air flow, 95%~98% of water can be evaporated at a moment. You can finish material  drying only in several seconds.

10. Especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.

 .jpg

Technical Parameter


Related product

TOPT-10A Toption Vacuum Freeze Dryer.jpg                TOPT-10B Gland Type Lyophiilzer.jpg

                       TOPT-10A                                                         TOPT-10B

TOPT-10C lyophilizer with bottles .jpg          TOPT-10D Vacuum Freeze Dryer.jpg

                    TOPT-10C                                                            TOPT-10D



Company Information

      TOPTION is professional lab solution provider,and all devoted to provide the best solutions & products for global customers,who are work in biology, chemistry, pharmaceutical, environment analysis, food, academic research, etc.



   Main products contains chemical synthesis reactor, rotary evaporator, thin-film evaporator, photochemical reactor, high  pressure reactor, freeze dryer, spray dryer, etc.



    TOPTION brand instrument has own high reputation in more than 70 countries and regions, provide technical support for tens of thousands organizations to solve problems within their research, special foruniversity, research institutes, industries, inspection agencies, etc.



  TOPTION has passed the “ISO9001:2008 Quality Management

System”certification and most of products have passed CE certification,the quality can be assured.
