Pilot Scale 200L Rotary Evaporator and glass reactor with glass condenser

FOB Reference Price:Get Latest Price
US $1,000-7,000 / Sets | 1 Set/Sets Pilot Scale 200L Rotary Evaporator and glass reactor with glass (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Distillation
Power Source:
Electric
Process:
Rotary
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
TOPTION
Model Number:
RE-2000A
Voltage:
220V 50/60HZ
Power(W):
1.5KW
Dimension(L*W*H):
1l high quality laboratory rotary evaporator
Weight:
1l high quality laboratory rotary evaporator
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
200L Rotary Evaporator and glass reactor with glass condenser
Optional Rotating Flask(L):
0.1L, 0.25L, 1L or 2L to 200L
Evaporating Flask:
2L + 1L
Receiving Flask(L):
1L
Lifting Type:
Automatic lifting
Condenser:
Vertical
Rotation Speed:
20-200rpm
Staic Temp. Control Range & Wave:
1.2L/H
Power:
220V 50/60Hz
Name:
1l high quality laboratory rotary evaporator
SupplyAbility
SupplyAbility:
Set/Sets per Month Pilot Scale 200L Rotary Evaporator and glass reactor with glass
Packaging & Delivery
Packaging Details
Pack of 1l high quality laboratory rotary evaporator
1.Qualified wooden case for export
2. Base on your needs
Port
Shanghai,Shenzhen,Ningbo
Lead Time :
Shipped in 7 days after payment
Video Description
Product Description

Pilot Scale 200L Rotary Evaporator and glass reactor with glass condenser

Rotary evaporator is under normal/negative pressure, with constant heating, use the different boiling point of the liquid material to get your target solvent.

Application of Pilot Scale 200L Rotary Evaporator and glass reactor with glass condenser

This Laboratory Vacuum Distillation Process 1L adopts Continuous receiving technology,water heating bath .It's high quality has passed CE certification. Widely used in the prosess like Concentration,refining,separation,
Crystallization, etrc.It is mainly applied in Bio-chemical,Pharmarceutical&Fine-Chemical Trades.Such as:
1.
Distillation of solvent
2.
Concentration of solutions and suspensions
3.
Crystallization or recrystallization
4.
Synthesis and purifying of fine chemicals
5.
Soxhlet extraction
6.
Powder and granules drying
7.
Recycling of solvent

Key features of Pilot Scale 200L Rotary Evaporator and glass reactor with glass condenser

1) Excellent , large LCD display of temperature of bath and rotation speed of rotary flask
2) Fast, easy and safe operation
3) Easy flask handling due to the unique flask coupling
4) Safe handling and spring-loaded valves protect the glass
5) High quality borosilicate glass fit for every applications
6) Upgraded automatization, automatically adjusting the height of the bath through Up and Down buttons
7) Long life time due to exclusive use of corrosion-free stainless-steel
8) Two collection flasks setting for continuous reaction, without breaking the vacuum system
9) Cost-saving modular design and can be customized by clients' requirements

Technical specifications of Pilot Scale 200L Rotary Evaporator and glass reactor with glass condenser


Type
RE-2000A







Basic

Parameter
Glass material
GG3.3
Bath material
Stainless steel
Rotating Flask(L)
2L + 1L
Optional Rotating Flask(L)
0.1L, 0.25L, 0.5L
Receiving Flask(L)
1L
Lifting Type
Automatic lifting
Condenser
Vertical
Rotation Speed (rpm)
20-200
Max Evaporating Speed (H2O)
1.2L/H
Reachable Vacuum Rate
<133Pa (1.33mbar, 1 Torr)
Bath Power (kw)
1.1KW
Staic Temp. Control Range & Wave (℃)
RT-99±2
Power
220V 50/60Hz


Function configurations
PTFE Seal Assembly
Continuous Charge
Digital Display
Taper Joint PTFE Sleeve
Low Noise
Low Noise
Bath Lift
Optional Evaporating Flask
optional configurations
Thermometer Neck For Vapor
Water Bath Lid
Joint Adaptor
Cold Trap

* Note:
Max evaporating speed is affected by operation setting and the performances and matching levels of supporting
Our factory is professional in 50ml, 1L, 2L, 3L, 5L, 10L, 20L, 50L Rotary Evaporator. Water bath or oil bath can be produced according to customers’ requests! Customized Glass Reactor also welcome here !!!

Work principle of 1LHigh Quality Vacuum fractionating distillation Rotary Evaporator

Detailed Images

LCD display

1.Integral control panel with Speed controller ( rotation switch) and temperature(Button) controller

2.Clear LCD display of temperature and speed values
3.
Buttons to control to built-in motor lift adjust the height of the bath




Anti-corrosion & Wearable sealing system

Specially designed and precisely manufactured. Enable system ultimate vacuum rate reaching 133Pa. 90% users don't need to replace rotary seal in one year.

Fatory show

Why chose us?

TOPTION as a proffesional lad instrument supplier.We are committed to make your research more accurate and efficient. Our "Rotary Evaporation" can achieve  high speed evaporation,vaporized solvent is well be collected and the fully-enclosed  rotary evaporation will  keep you from awful smell . We hope you are able to work fast, safe, and always.
Certifications

TOPTION as a professional lab solution provider is specialized in manufacturing and selling rotary evaporator photochemical reactor,UV glass reactor system, xenon glass reactor, single-layer glass reactor,double-layer glass reactor, three-layer glass reactor,thermostatic equipment, ice maker, ultrasonic instrument, spray dryer, air dryer,extracting device and so on, who are work in chemistry, biology, pharmaceutical, environment analysis, food, academic research, etc. Regardless of the field you work in, we keep striving for the same goal: to provide you with the most suitable solutions & products, to make your research more accurate & efficient.


TOPTION has passed the “ISO9001:2008 Quality Management System”certification and all of our rotary evaporator  have passed CE certification,the quality can be assured.

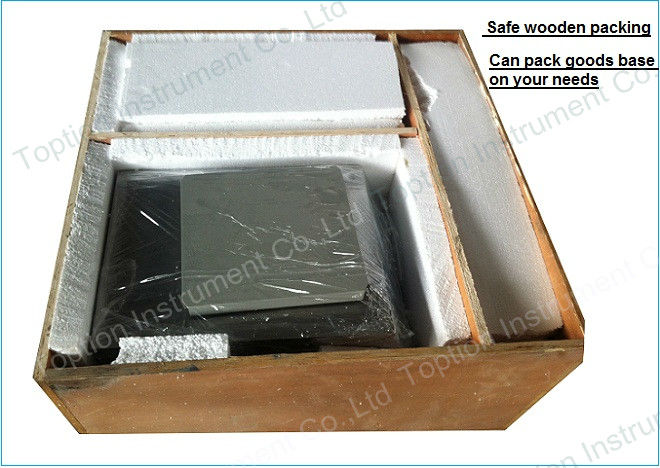

Packing & Delivery

Packing of the 1L Laboratory Rotary Evaporator

-Standard wooden case.
-Both neutral and customized packaging can be available.

Shipping of the 1L  Laboratory Rotary Evaporator:

-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own forward.

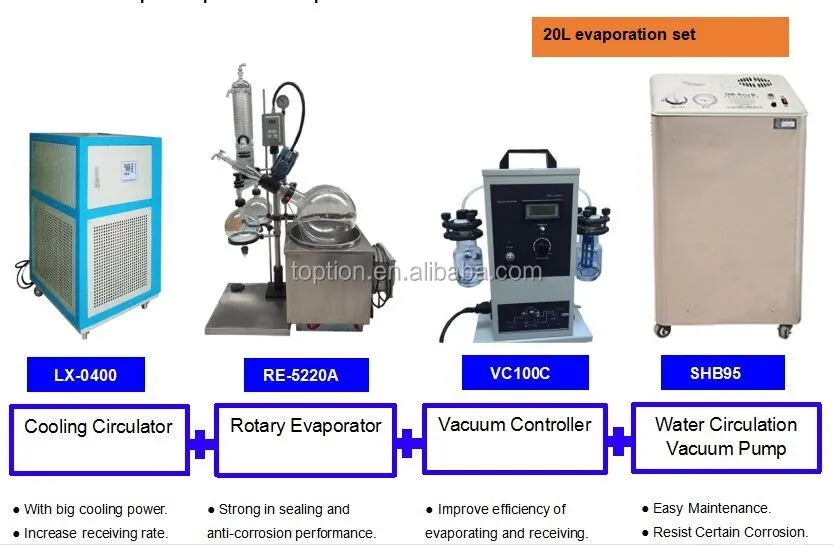

You may like

 Water Circulation Vacuum Pump

Vacuum Controller

Cooling Circulator

Our Service

Pre-Sales Service:

1. Inquiry and consulting support.
2. Quick response with detailed quotation
3.Confirm price, quantity, shipment, lead time and payment terms)
4.Make order and sealed PI. (Trade assuranceorder is recommend to new clients for securing payment)


After-Sales Service:
1. One year warranty for the products described here.
2. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
3.Reliable quality and thoughtful after-sale service: If you encounter problems when using our products, please contact us by telephone or e-mail, we will be ready to provide consulting, maintenance and other services immediately.

Contact us
FAQ

About order:

Q: What is your MOQ of the Laboratory Vacuum Distillation Process?

A:1 set.


Q: How long is your delivery time
of the Laboratory Vacuum Distillation Process ?

A: Generally it is within 3 working days after receiving the payment if the goods are in stock. Or it is 5-10 working days if the goods are not in stock, depending on order quantity.


Q: How to choose suitable
Laboratory Vacuum Distillation Process?
A:tell us your work flow and requirements ,then we will recommend you suitable equipment according to yourrequirements, application experience and feedback from our clients.


Q: How to solve the Vacuum Distillation Process trouble during using ?
A: Please email us about problem with pictures or a small video will be better,we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.


About Rotary Evaporator Model Selection:

1. What's the most important performance of rotary evaporator?
Air impermeability is the first important performance of rotary evaporator, which directly affect rotary evaporator normal operating and service life. Air impermeability is good or not is decided by suppliers' design standard, manufacture standard and material choice, etc. "Actual vacuum degree" and "vacuum pressure maintaining time" are the measuring standard.
2. What's the difference of glass lifting and bath lifting?
Bath lifting is more safe, the glass parts matched with rotary evaporator are not easy to be damaged, don't need to lock after lifting finished. Glass lifting is mainly suitable for the rotating flask which has fixed size, lifting height is fixed, after finish lifting, need to lock.
3. #29 and #24 Evaporation bottle grinding mouth, choice which type is better?
ISO #29 and ISO #24 both are the standard mouth for laboratory. ISO #29 has high strength and convenient to clean, is more suitable for imported rotary evaporator, and also benefit you to choice flask move device.
4. Which type vacuum pump is most suitable for rotary evaporator?
Vacuum pump is the prerequisite device for rotary evaporator, TOPTION provide SHB-III vacuum pump for 1L ~ 10L laboratory rotary evaporator, SHB-B95 vacuum pump for industrial rotary evaporator, and 2XZ also supplied for rotary evaporator, etc. But using cold trap or other methods provide corrosion protection is more better.
5. In which situation, condensation effect is best?
Tap water temperature changes as different season, its temp. is higher in summer, so solvent recovery efficiency is low, and tap water will make condenser change color and scale formation.
You could choice the below two lab solutions:
1) The best solution: equip appropriate low temperature cooling circulating pump, when you choice, please pay attention to "refrigerating capacity", "lowest temperature", "circulating joint", "circulation capacity" and "circulating pressure", TOPTION supply low temperature equipment professional for rotary evaporator.
2) For laboratory rotary evaporator, cold trap could be cooling by ice.
6. How to improve rotary evaporator service life?
1) Please operating based on TOPTION rotary evaporator operation instruction.
2) After finish research, please clean rotary evaporator in time.
3) The surface of rotary evaporator should be keep clean.
4) Please contact TOPTION specialist for any problems during rotary evaporator operating.
