high pressure short arc spherical xenon lamp for Hydrolyzed water to hydrogen

FOB Reference Price:Get Latest Price
US $3,000-6,000 / Set | 1 Set/Sets 300w Xenon Lamp Light Source (Min. Order)
Supply Ability:
100000 Set/Sets per Month 300w Xenon Lamp Light Source
Port:
Shanghai,China
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Automatic Grade:
Automatic
Type:
Tank Reactor
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
TOPTION
Model Number:
TOPL-X300
Voltage:
220V
Power(W):
300w
Dimension(L*W*H):
made by model
Weight:
made by model
Certification:
CE ISO
Warranty:
One Year
After-sales Service Provided:
Engineers available to service machinery overseas
Lamp bulb power:
300W (imported)
Power adjusting range range:
150 ~ 300W continuous adjustable
Lamp bulb life:
no less than 1500 h (full power operation)
Maximum current:
22A.
Total light power:
50 w
Customize:
Yes
Parallel light spot diameter:
30 ~ 52 mm (according to the shot distance).
Parallel light divergence Angle:
the average 6
Cooling methods:
import metal fan + metal cooling block.
Light collection methods:
ellipsoid total reflection
Packaging & Delivery
Packaging Details
Packing of high pressure short arc spherical xenon lamp for Hydrolyzed water to hydrogen:
1. Standard wooden case
2. Base on your needs
Delivery Time
Within 5-7 days
Product Description

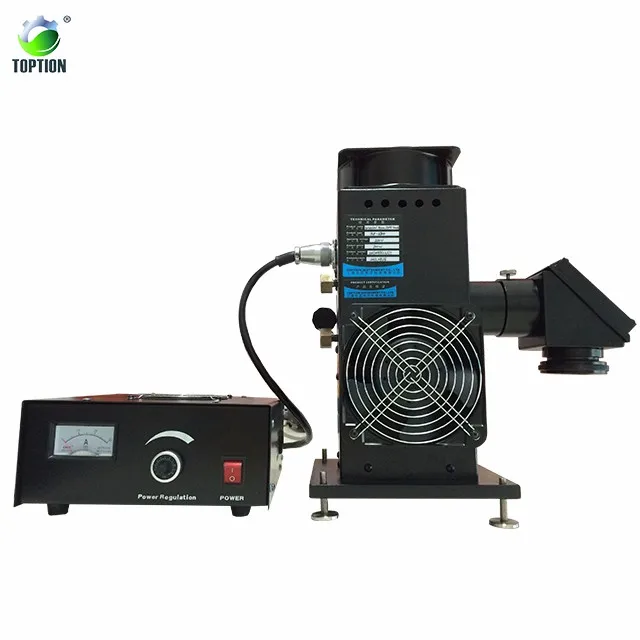

high pressure short arc spherical xenon lamp for Hydrolyzed water to hydrogen

TOPTION factory have got technical supports from many professors of SJTU and NTU in developing period. TOPT series is mainly applied to research gas / liquid phases, fixed / simulated visible light, could reaction vessel load TiO2, Photochemical reaction under conditions of photocatalyst and so on. This series can provides samples of analytical reacting product and free radical, and to measure reacting kinetic constant, quantum yield; it is widely used in fields of Chemosynthesis, environment protection, and life science, etc.

Feature

★ Spectral range from UV to VIS(200-2500nm).
★ Optical axis height is 157-193mm.
★ Output beam diameter is 46mm.
★ Supports wide range of accessories.
★ Fan cooled housing

Remark:

1.The complete set of short-arc xenon lamp includes: Lamp housing, condensing optics, lamp with appropriate adapter, electrical interface, cable and power supply. As an option we suggest the rear reflector for more output.
2.Various lengths of the arc tube short arc xenon lamp.

Optional:

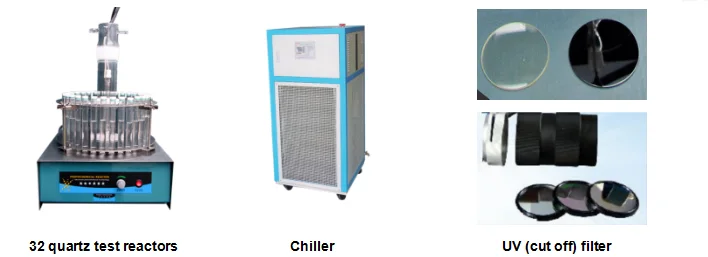

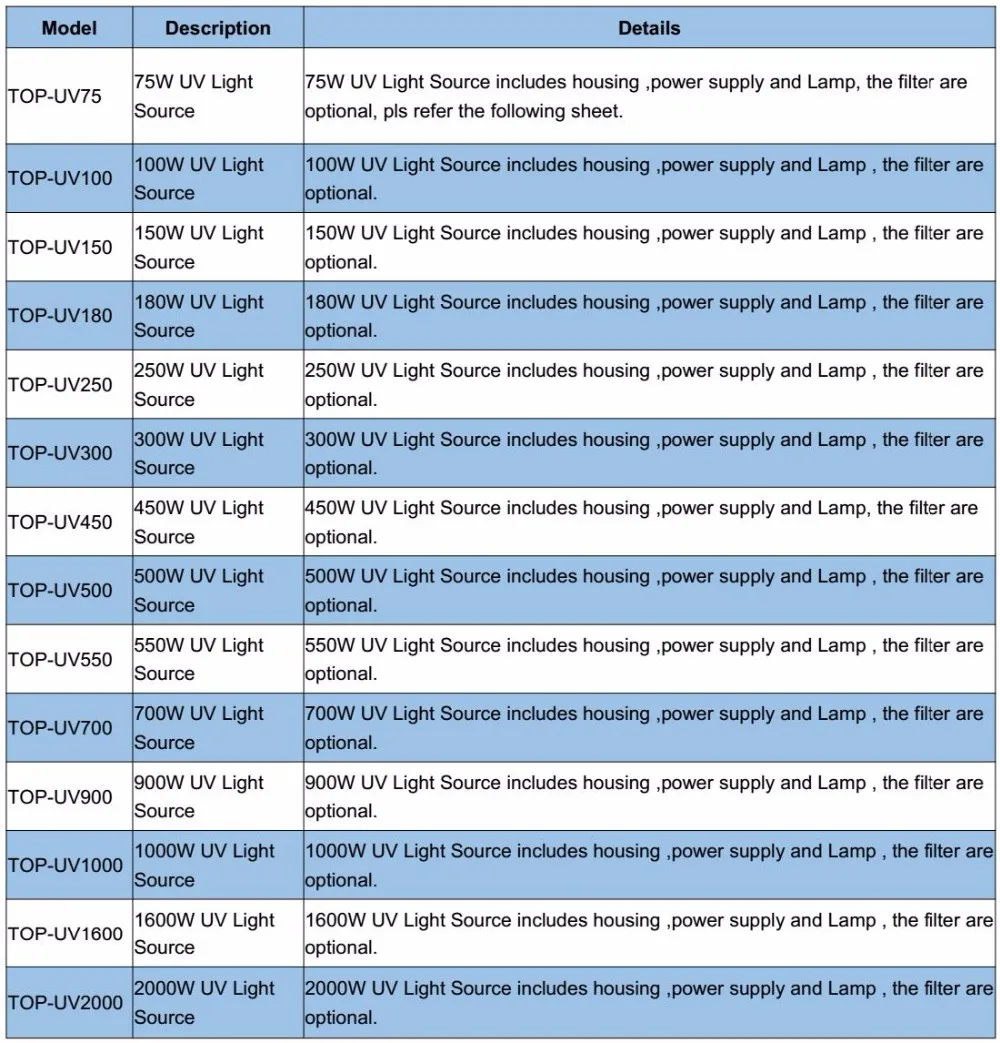

1. Optical Filter    2. UV lamp source technical specification

Detailed Images


Reflector

A spherical reflector collects the output from the rear of the lamp and focuses it on or near the arc, for collection by the condenser.The output is increased by as much as 60 %.

Lamp adjustment

The housing has precise external lamp adjusters.They let you place the arc where you want it. This is important for simplifying fiber and slit illumination. In many applications, this eliminates the need for adjust any optics located beam path outside the housing.

Current and light ripple

For the most (scientific) applications the light ripple is most important. This not only depends on the current ripple, but on the operation conditions typical light ripple of our arc light sources is 0.5%.

Packing & Delivery

Packing:
-Standard wooden case.
-Both neutral and customized packaging can be available.

Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own forward.

Certifications

TOPTION as a professional lab solution provider is specialized in manufacturing and selling photochemical glass reactor ,UV glass reactor system, xenon glass reactor, single-layer glass reactor,double-layer glass reactor, three-layer glass reactor,thermostatic equipment, ice maker, ultrasonic instrument, spray dryer, air dryer,extracting device and so on, who are work in chemistry, biology, pharmaceutical, environment analysis, food, academic research, etc. Regardless of the field you work in, we keep striving for the same goal: to provide you with the most suitable solutions & products, to make your research more accurate & efficient.

TOPTION has passed the
“ISO9001:2008 Quality Management System”certification and some of products have passed CE certification,the quality can be assured.

Related Products

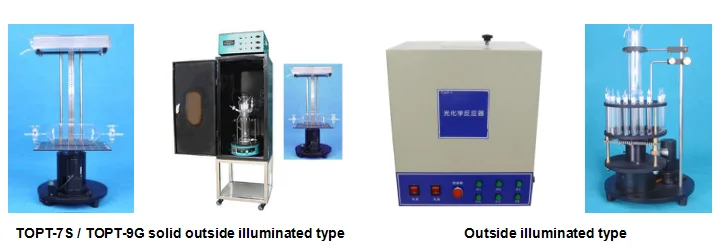

We can also supply photochemical reactor,Photocatalytic water splitting,filter for you.

Our Service

Pre-Sales Service:
1. Inquiry and consulting support.
2. Quick response with detailed quotation
3.Confirm price, quantity, shipment, lead time and payment terms)
4.Make order and sealed PI. (Trade assuranceorder is recommend to new clients for securing payment)
After-Sales Service:
1. One year warranty for the products described here.
2. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
3.Reliable quality and thoughtful after-sale service: If you encounter problems when using our products, please contact us by telephone or e-mail, we will be ready to provide consulting, maintenance and other services immediately.
