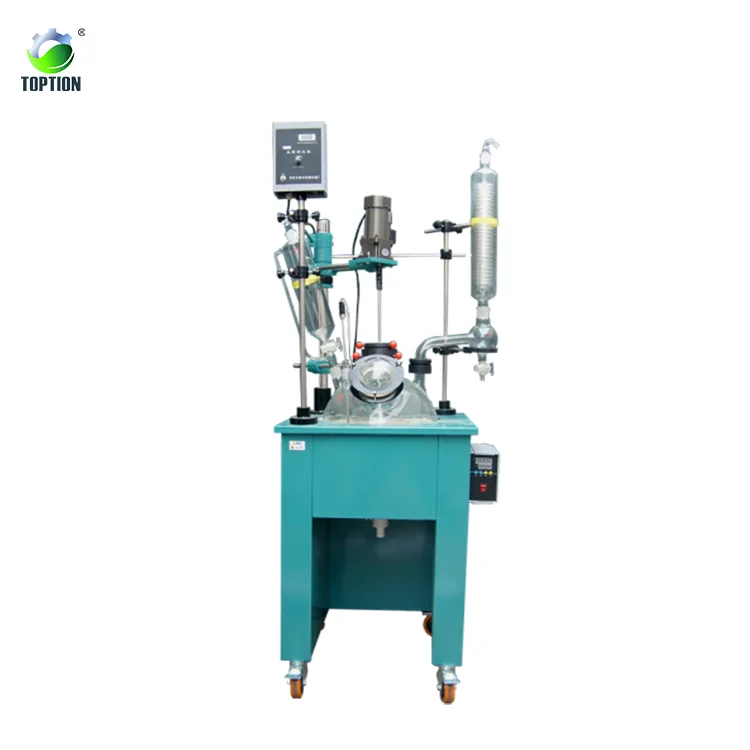

Chemical Small Single Deck Glass Reactor

FOB Reference Price:Get Latest Price
  • 1 - 4 Sets
    US $5580.00
  • >=5 Sets
    US $5130.00
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Automatic Grade:
Automatic
Type:
Reaction Kettle
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
TOPTION
Model Number:
TST-100MS
Voltage:
220 / 380
Power(W):
9kw 180℃
Dimension(L*W*H):
Machine Capacity
Weight:
Machine Capacity
Certification:
ISO9001:2008
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Reaction flask(L):
100
The mouth number of the bottle:
6
Stirring power(W):
250
Speed(rpm):
0-600
The diameter of Stirring bar(mm):
D16
Vacuum sealing:
have
±0.2℃controlling of temperature:
have
Discharge valve:
have
PTEE stirring bar:
have
Charging cork:
have
SupplyAbility
SupplyAbility:
10000 Set/Sets per Month 100l single layer glass reactor
Packaging & Delivery
Packaging Details
Packing of Chemical Small Single Deck Glass Reactor:
1.Wooden packing.
2.According to your requirement.
Port
Shanghai,Ningbo
Lead Time :
Within 5-7 working days after payment
Product Description

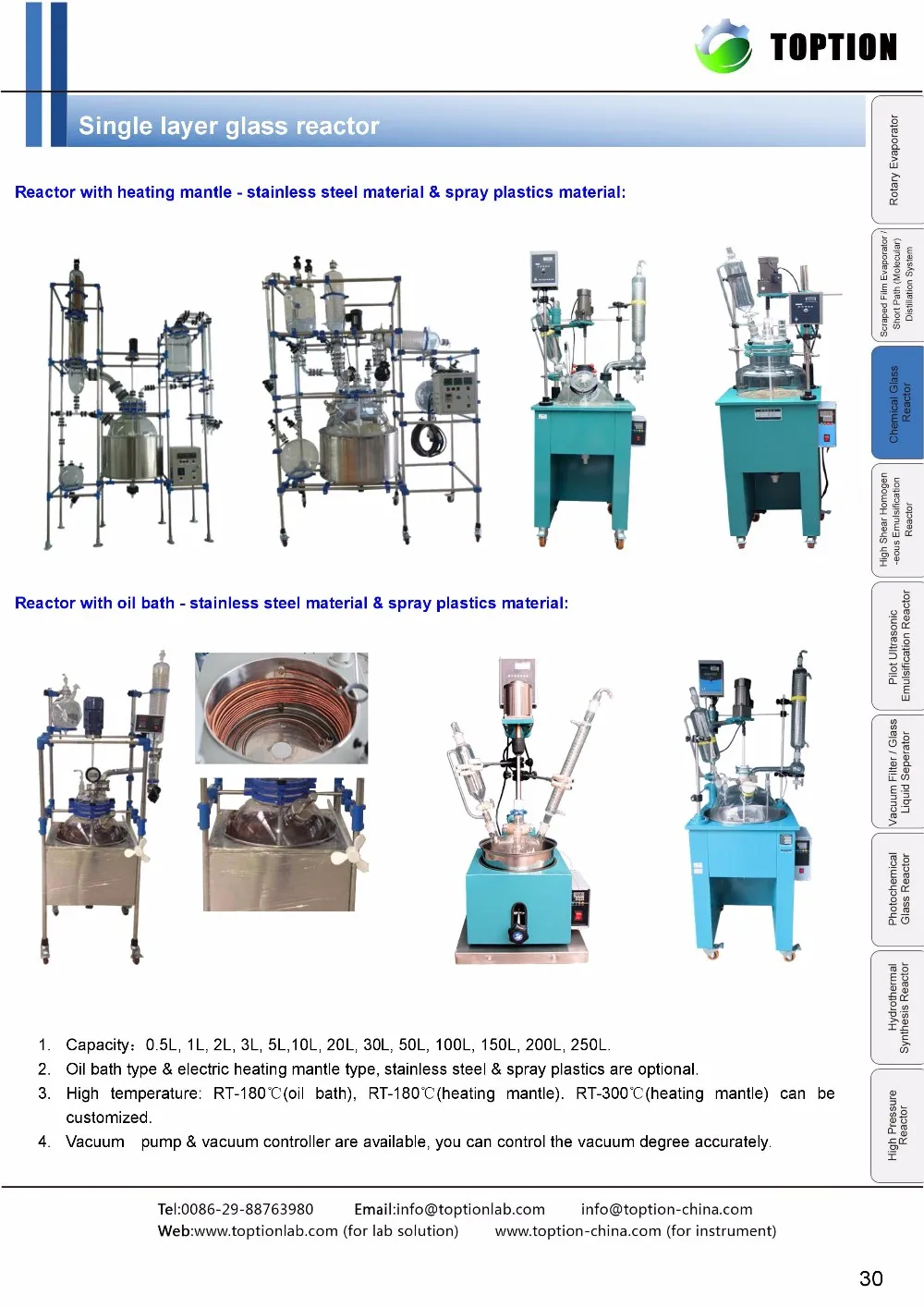

1. Reactor volume: 0.5L, 1L, 2L, 3L, 5L, 10L, 10L, 20L, 30L, 50L, 100L, 150L, 200L, 250L.
2. Bath heating and heating sets of two heating methods, stainless steel and spray material two optional.
3. High temperature: room temperature -180 ℃ (oil bath), room temperature -180 ℃ (heating sets). Room temperature -300 ℃ (heating sets of heating) can be customized.
4. Vacuum pump and vacuum controller can be optional, can achieve precise control of vacuum.

Description

Single-layer glass reactor can provide high-temperature reaction (maximum temperature can reach 300 ℃), can also be drawn into a vacuum, so as to do negative pressure reaction.

Single-layer glass reactor can be carried out under constant temperature conditions of various solvent synthesis reaction, the instrument reaction part of the control can be fully sealed structure, the use of negative pressure can be continuous inhalation of various liquids and gases, but also at different temperatures to do reflux or distillation.

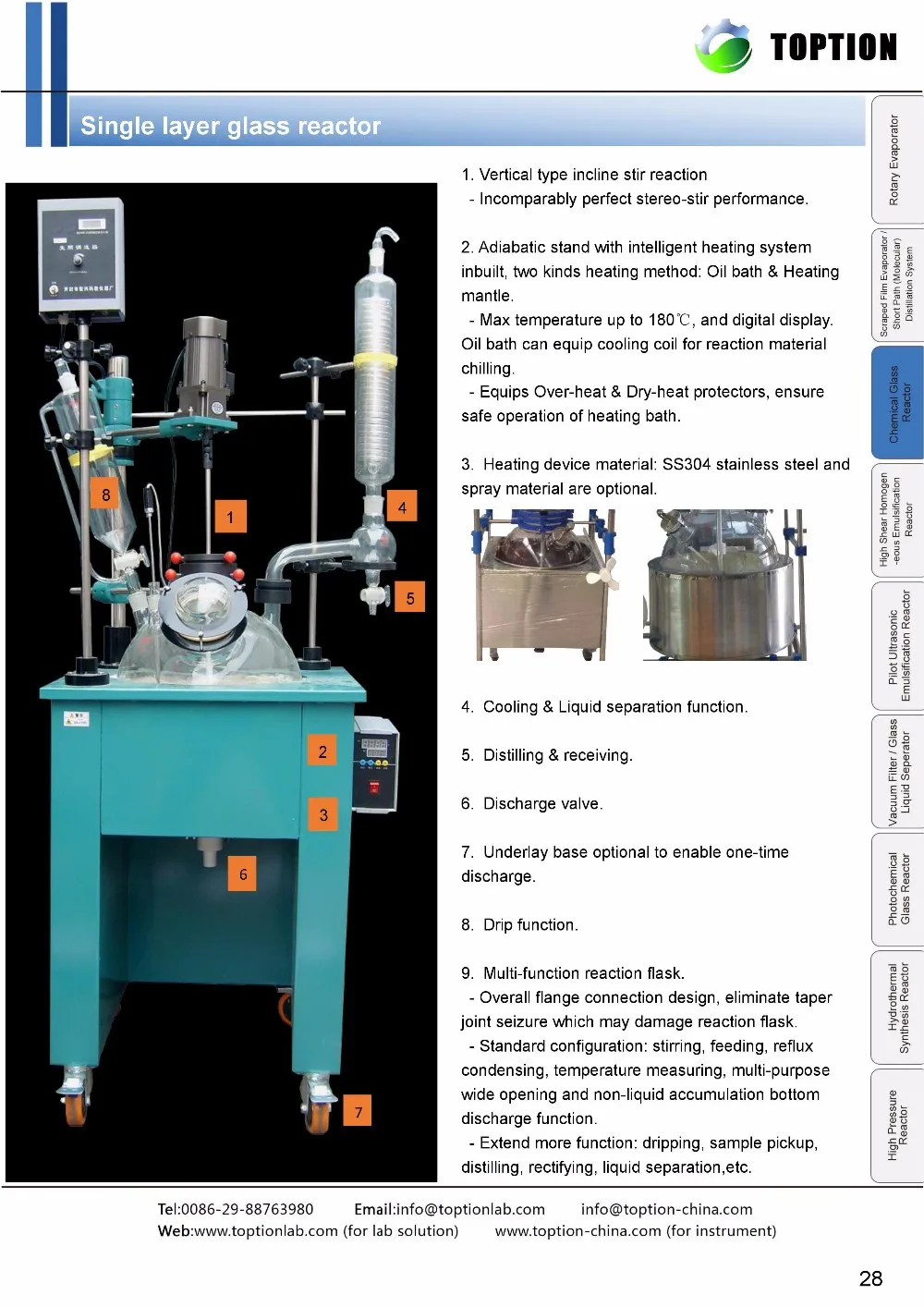

Feature

TST series of single-layer reactor (device) can be under constant temperature conditions for a variety of solvent synthesis reaction, the instrument reaction part of the control can be fully sealed structure, the use of negative pressure inhalation of various liquids and gases, but also at different temperatures Reflux or distillation.

1. Distillation, reflux can be achieved at the same time
2. Special long-lasting mixing seal
3. Material with GG17 glass and PTFE contact, no cross-contamination
4. Digital speed and high, low temperature display, easy to operate
5. Large cleaning mouth, easy to clean
6. Large discharge valve, can put solid, liquid
7. Intelligent (oil, water bath heat or heating sets of heating)

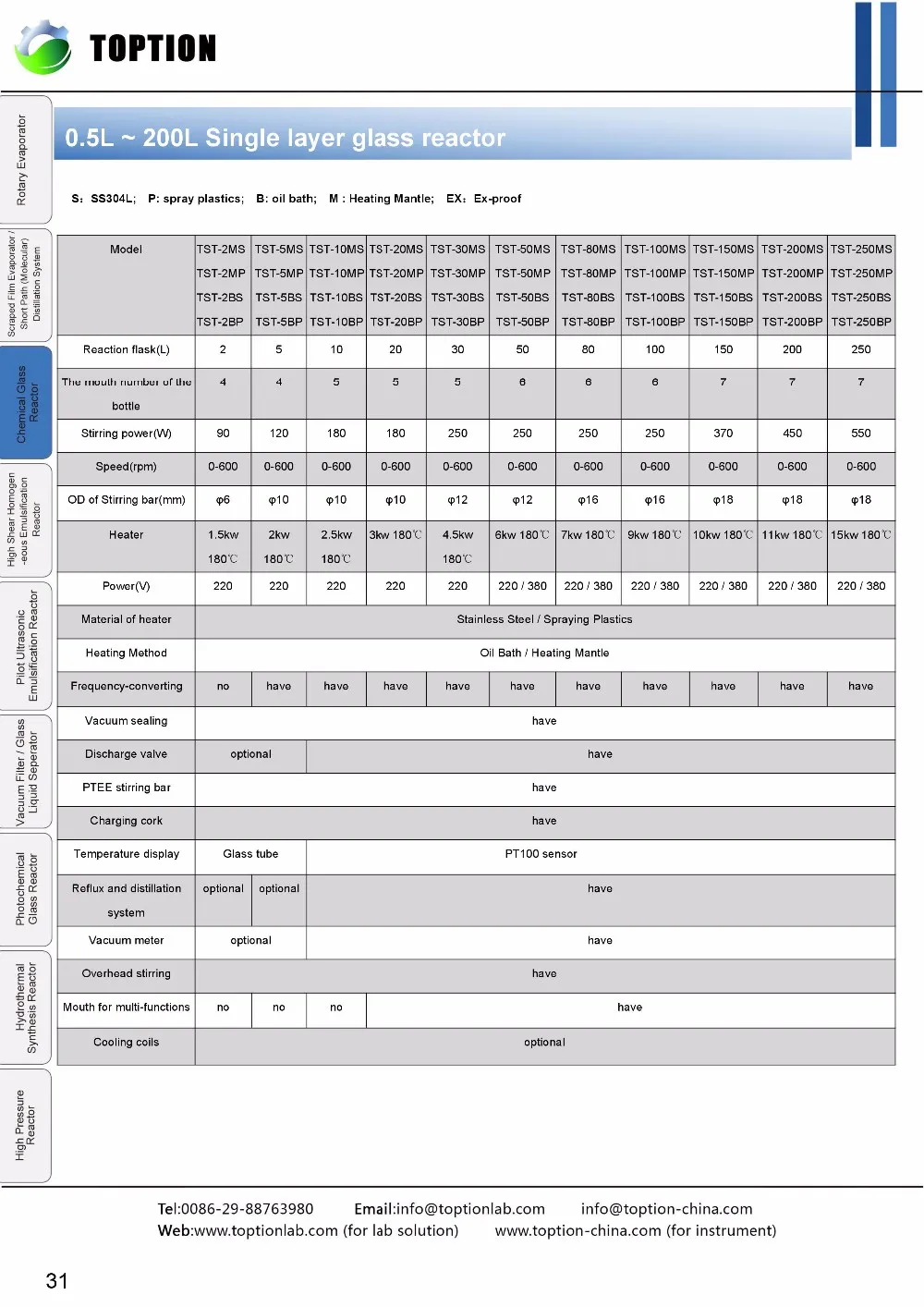

Technical Specification
Model
TST-100MS
Reaction flask(L)
100
The mouth number of the bottle
6
Stirring power(W)
250
Speed(rpm)
0-600
OD of Stirring bar(mm)
φ16
Heater
9kw 180℃
Power(V)
220/380
Material of heater
Stainless Steel
Heating Method
Heating Mantle
Vacuum sealing
have
Discharge valve
optional
PTEE stirring bar
have
Charging cork
have
Device for test temp
have
Reflux and distillation system
optional
Vacuum meter
optional
Overhead stirring
have
Automatic stir in CW or CCW
optional
Cooling coils
optional

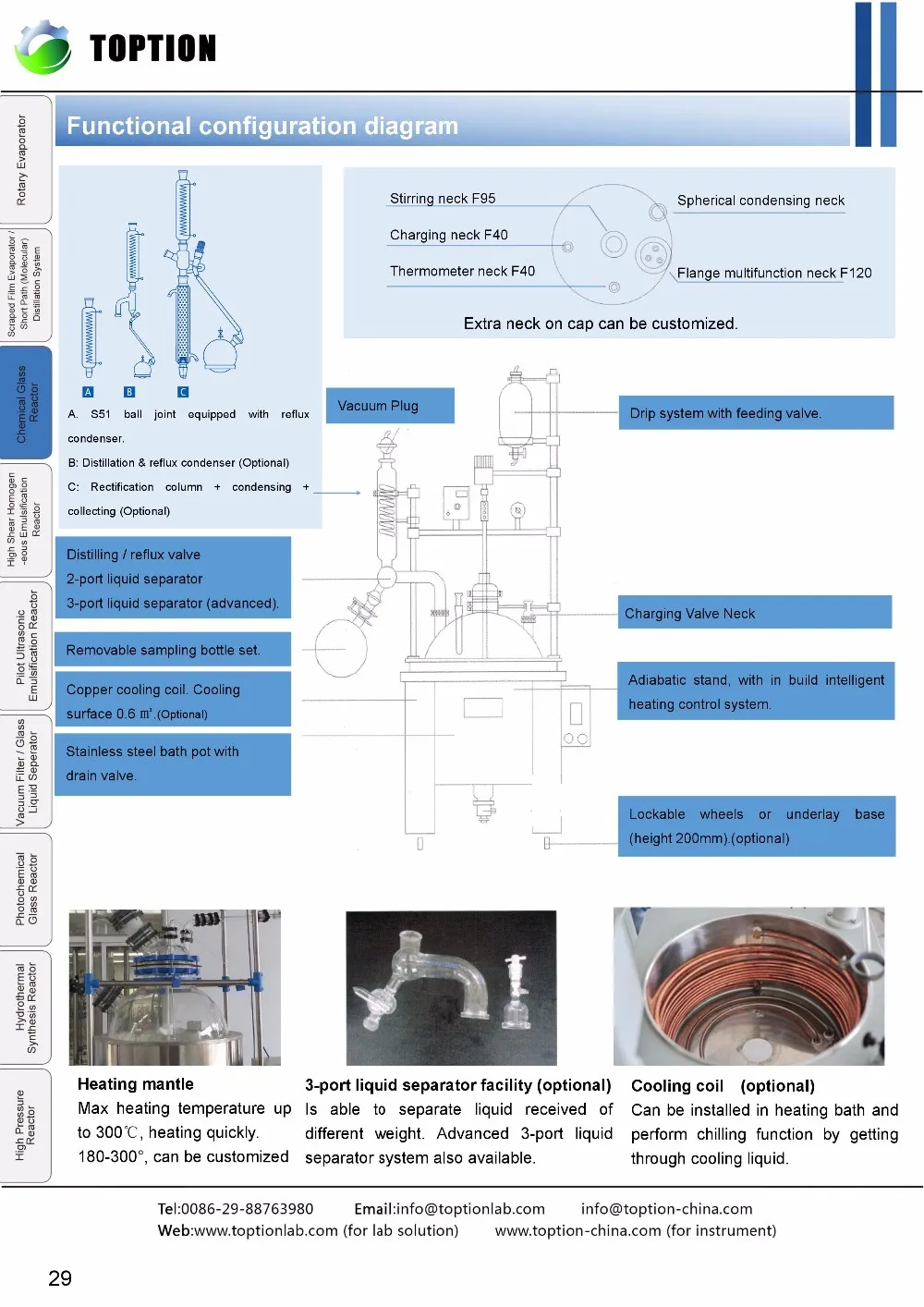

Detailed Images
Packing & Delivery

Packing & Shipping

-Standard wooden case.
-Both neutral and customized packaging can be available.

-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own forward.

Certifications

TOPTION as a professional lab solution provider is specialized in manufacturing and selling photochemical glass reactor ,UV glass reactor system, xenon glass reactor, single-layer glass reactor,double-layer glass reactor, three-layer glass reactor,thermostatic equipment, ice maker, ultrasonic instrument, spray dryer, air dryer,extracting device and so on, who are work in chemistry, biology, pharmaceutical, environment analysis, food, academic research, etc. Regardless of the field you work in, we keep striving for the same goal: to provide you with the most suitable solutions & products, to make your research more accurate & efficient.

TOPTION has passed the “ISO9001:2008 Quality Management System”certification and most of our products have passed CE certification,the quality can be assured.

Our Company

Toption company are professional in LAB EQUIPMENT with more than 10 years, we can provide you more competitive price and best after-sale services, warmly welcome here for quotation.

The main products are rotary evaporator, jacketed glass reactor, single layer glass reactor, freeze dryer, water/oil bath, magnetic heating stirrer, overhead mixer, ultrasonic cleaning machine, lift platform, etc.

Our Service

Pre-Sales Service
1.Inquiry and consulting support
2.Quick response with detailed quotation
3.Confirm price, quantity, shipment, lead time and payment terms
4.Make order and sealed PI. (Trade assuranceorder is recommend to new clients for securing payment)


After-Sales Service
1.One year warranty for the products described here.
2.Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
3.Reliable quality and thoughtful after-sale service:If you encounter problems when using our products,please contact us by telephone or e-mail,we will be ready to provide consulting,maintenance and other services immediately.

FAQ

Q: How long is your delivery time?
A: Generally it is within 3 working days after receiving the payment if the goods are in stock. Or it is 5-10 working days if the goods are not in stock, depending on order quantity.

Q: How to choose suitable equipment ?
A:Tell us your work flow and requirements ,then we will recommend you suitable equipment according to your requirements, application experience and feedback from our clients.

Q: How to solve the equipment trouble during using ?
A: Please email us about problem with pictures or a small video will be better,we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.
