TOPTION BRAND ultrasonic biodiesel reactor Closeness Ultrasonic Reactors

FOB Reference Price:Get Latest Price
US $1,000-6,000 / Sets | 1 Set/Sets Ultrasonic Extractor hot sale (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
TOPTION
Model Number:
TOPT-2008
Application:
CHEMICAL
Type:
Extractor
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
ultrasonic biodiesel reactor Closeness Ultrasonic Reactors
Function:
ultrasonic biodiesel reactor
Usage:
Ultrasonic Extractor
Ultrasonic probe diameter:
20mm
Ultrasonic power:
100 ~ 1500W continuously adjustable
Ultrasonic Frequency:
25KHz
Temperature range:
-20 ~ 100 ℃
Reaction volume:
10 ~ 500ml
Cold trap volume:
6L
Compressor power:
500W
Supply Ability
Supply Ability:
3000 Set/Sets per Year Ultrasonic Extractor hot sale
Packaging & Delivery
Packaging Details
1.standard wooden packaging for exported
2.customized by your requests
Port
Zhejiang /Shanghai /Tianjin
Lead Time :
7 days after payment

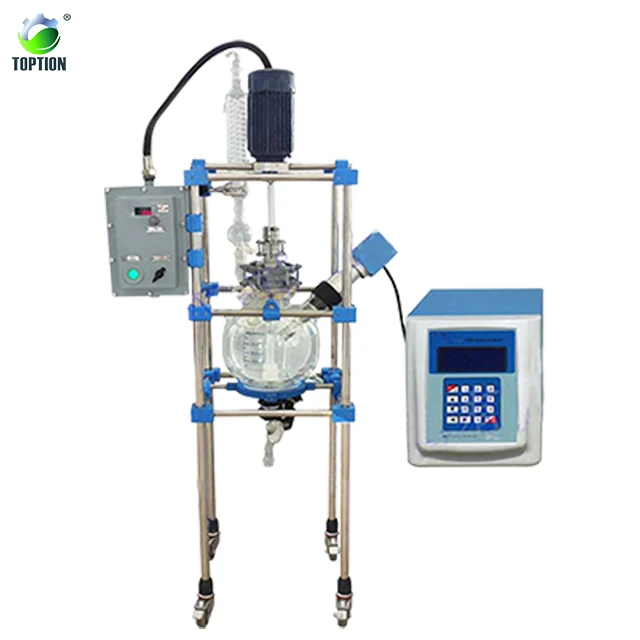

                                    Low-temperature Ultrasonic Extractor

 Description  :
      TOPT−2008 type low−temperature ultrasonic extractor is the application of modern ultrasonic extraction combined with low temperature system as a physical means of new chemical reaction device, occurred mainly by high-power ultrasonic system, heating system, the compressor cooling system, temperature control system, temperature, agitation system etc.
     Is higher than 20000Hz frequency ultrasonic sound waves. It is spread in the medium can cause severe friction between the media elements and heat dissipation, resulting in a variety of primary and secondary effects of ultrasound, such as ultrasound thermal effect, chemical effect of cavitation and other physical effects. As the ultrasonic "cavitation" effect may cause changes in activity of reaction system to produce enough to trigger the instantaneous high temperature and pressure chemical reactions, the formation of a local high−energy centers to promote the smooth progress of chemical reaction, which is the main chemical reaction catalyzed ultrasonic factors. The secondary effects of ultrasound such as mechanical shock, emulsification, dispersion, crushing are beneficial to the full range of reactants are mixed, than the general phase transfer catalysis and mechanical agitation to promote more effective reaction to proceed smoothly, it gradually into the ultrasonic technology chemical laboratory, as a means of physical catalyst, the reaction of organic chemistry greatly changed the outlook.

TOPT-2008 _.jpg

Key Features
1. Product by the ultrasonic wave generation system, heating system, cooling system, temperature control system, composed of mixing system
 2. Magnetic stirring system can respond more fully, more uniform temperature
3. Special bottle more than I can meet a variety of experimental response requirements (both into the various gases involved in reactions, but also continuous feeding)
4. Original French Tai refrigeration compressor, cooling capacity, temperature uniformity
5. Reaction system can be completely sealed
6. Immersion ultrasonic horn, good effect
Technical parameters
1. Ultrasonic power: 100 ~ 1500W continuously adjustable
2. Ultrasonic Frequency: 25KHz
3. Temperature range: -20 ~ 100 °C
4. Reaction volume: 10 ~ 500ml
5. Ultrasonic probe diameter: 20mm
6. Cold trap volume: 6L
7. Compressor power: 500W

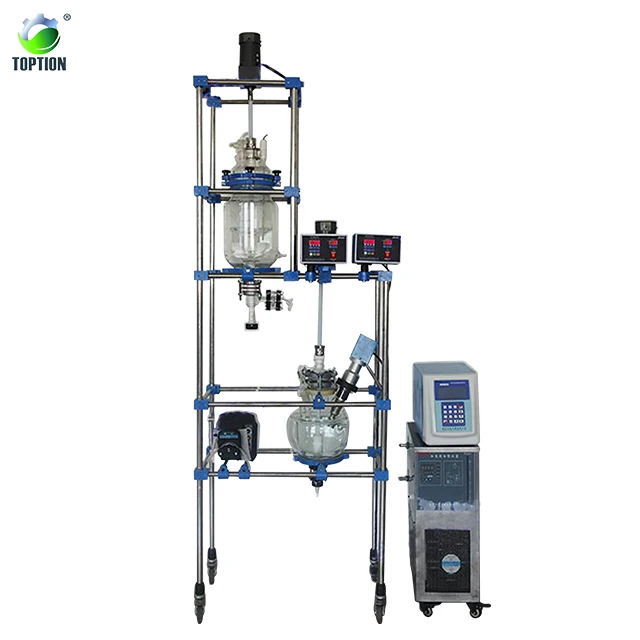

This TOPT-100LD Ultrasonic continuous reactor adopts GG3.3 as material and it's high quality has passed CE certification.


Type
TOPT-100LD
ultrasonic frequency
15KHz, 20KHz, 25KHz optional
ultrasonic power
500-3000W optional
capacity
0.5L~100L
the temperature range
-60~200℃
the kettle body material
borosilicate GG3.3 double glass Kettle body
pressure range
-0.095~ 0.2MPa
power
220V/50Hz
Horn
Diameter10mm
Single capacity
0.5-200L Ultrasonic Reactor
Magnetic stirring
0 ~ 2400 r / min
Reaction bottle neck
50 #, 24 #, 24 #
pressure range
-0.095~ 0.2MPa
Key features:

Test out Automatic controller -Continuous Ultrasonic Reactor :
ultrasonic reactor on a powdery substance in the liquid phase micro-level crushing and oil extraction and nano emulsion dispersion and can play a significant role in the purification of precious metals, and reaction to the involvement of a powdery substance, emulsifying reaction and homogeneous reaction also can speed up the results.

50l double layer glass reactor (11)Glass reactor (11)

Glass reactor (7)

We believe the quality will not let you down. TOPTION company can customized various specifications of glass reactor system, we believe "TOPTION"  will be your "TOP option".
