Hot Sale 20l 50l 100l Jacketed Glass Reactor

FOB Reference Price:Get Latest Price
US $1,500-4,000 / Sets | 1 Set/Sets 20L double layer reactor (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Automatic Grade:
Automatic
Type:
Reaction Kettle
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
TOPTION
Model Number:
TOPT-10L
Voltage:
220V/50HZ
Power(W):
60w
Dimension(L*W*H):
670*560*1550mm
Weight:
69kg
Certification:
CE ISO
Warranty:
One Year
After-sales Service Provided:
Engineers available to service machinery overseas
Stir medium flange:
50
Liquid material inflow:
1L
Condenser:
34#
Temp. measure:
DN15
Stirring paddle:
16mm single layer three blade paddle type
Reactor lid flange(mm):
265
Inner diameter of reactor body(mm):
230
External diameter(mm):
290
Reactor body height(mm):
450
Rotate speed(rpm):
50-600
Supply Ability
Supply Ability:
100000 Set/Sets per Week Hot Sale 20l 50l 100l Jacketed Glass Reactor
Packaging & Delivery
Packaging Details
Packing of Hot Sale 20l 50l 100l Jacketed Glass Reactor:
1. Wooden package
2.According to your request
Port
Shanghai,Ningbo
Lead Time :
Within 3-5 working days after payment
Product Description
20L Double Layer Glass Reactor

The double-layer glass reactor is a double-layer glass design. The inner layer of the double-layer glass reactor / double-layer glass reactor is placed in the reaction solvent to make the stirring reaction. The interlayer can pass different cold and heat sources (frozen liquid, hot water or heat Oil) to do the heating or cooling reaction. In the set constant temperature conditions, in the closed glass reactor, according to the use of requirements under normal pressure or negative pressure conditions for stirring reaction, and can do the reaction solution reflux and distillation, is a modern fine chemical plant, bio-pharmaceutical and New material synthesis of the ideal pilot, production equipment.

Technical Specification
Model
TOPT-20L
Volume(L)
20
Glass Material
GG17/G3.3 Borosilicate glass
Motor power(W)
120
Frame Material
SS304
Speed(r/min)
10-680
Stirring torque(1300r/min)
12000g.cm
Inside/outside tube diameter(mm)
315*360
Discharger port distance to ground(mm)
350
Temp. range
-80~300C
Vacuum
0.098Mpa
Center opening size
50#
Left opening size
40#
Right opening size
34#
Later opening size
34#
Before opening size
29#

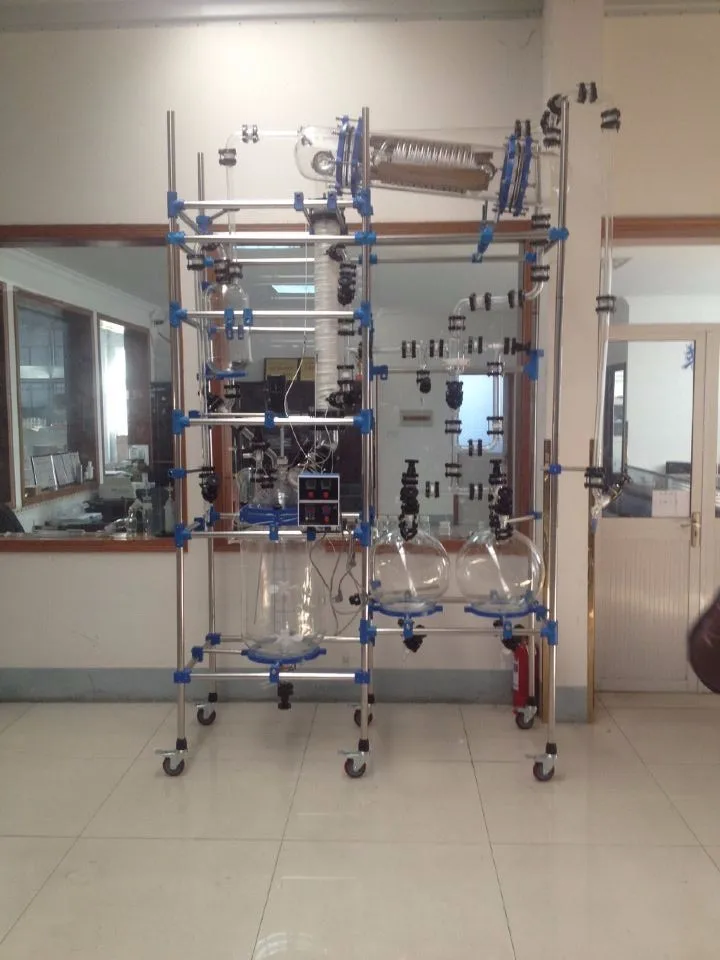

Detailed Images

Feature

1. Double-layer glass reactor using frequency control, AC induction motor. Constant speed, no brush, no spark, safe and stable, continuous work.
2. A full glass reactor with GG17 high borosilicate glass production, a good chemical and physical properties.
3. Glass sandwich interface through the hot oil through the cycle, can do the heating reaction, through the frozen liquid can be low temperature reaction.
4. Can react at room temperature, through the tap water that can quickly reflect the heat away.
5. Discharging mouth with a flange and PTFE valves, containers without dead ends, removable for solid material discharge.
6. Five reactor cover, large mouth design for easy cleaning, the standard port can be selected assembly reflux, distillation synthesis device.

Advantage

TOPTION Glass vacuum reactor is with double glass design, the inner layer placed reaction solvent can do the mixing reaction, the inner layer can be added with the different hot and cold sources (frozen liquid, hot water or hot oil) to do loop heating or cooling reaction. This jacketed glass reactor can be used to do high temperatureexperiment(max temperature is 280°C),as well aslow temperature experiment(min temperature is -80°C) and vacuum tests. It is an ideal equipment for chemistry small and medium-sized experiment,bio-pharmaceuticals and new materials synthesis. It also is used for extraction of gold.

The most important is that “the design of TOPTION reactor is unique,which can guarantee experiments of more convenient and safer.

Packing & Delivery

Shipping and Packing

-Plywood or carton packaging.
-Both neutral and customized packaging can be available.

-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.

Certifications

ISO9001:2008 & CE quality certification, products' quality management system, for every delivery instrument, we have professional quality manager team to cheak, then sign product certification and warranty card. Protect your research and business safe.

Our service
1. TOPTION Instruments provides ONE YEAR WARRANTY for the products described here.
2. The warranty covers part and manufacturing defects. In the case of a part or manufacturing defect, the device shall be repaired or replaced free of charge under the terms of the warranty.
3. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
4. TOPTION Instruments shall not assume liability for any damages incurred as a result of improper handling.
5. If you encounter problems when using our products, please contact us by telephone or e-mail, we will be ready to provide consulting, maintenance and other services immediately.

Our Company

TOPTION INSTRUMENT CO.,LED

TOPTION ISTRUMENT CO.,LED specializes in designing, fabricating and manufacturing of biological and chemical testing instrument, pharmaceutical glass equipment more than 10 years! Our core manufacturing capabilities are glass reactor series, rotary evaporator series, chemical glass pipes, glass condenser series and thermostat bath series. Applications for such borosilicate glass process equipment are widely used in research and development, agricultural, bio-technology, pharmaceutical, food and chemical industries.

We are capable of manufacturing glass reactor system according to your design. Our team of highly skilled glass technologists and product specialists has many years of experience in project development. Whether you require a large multi-vessel process pilot system or a single bench top vessel, we are able to fabricate according to your needs.

FAQ

1. What's the max temperature?
Usually the high borosilicate glass can withstand over 300 degree centigrade and the PTFE stirring bar can withstand about 200 degree centigrade.

2. How many kinds of your glass reactor?
Three types: double jacketed; single layer and triple layer glass reactor.
Explosion proof function also can be customized.

3. What's the size do you have for glass reactor?
Jacketed: 1L, 2L, 3L, 5L, 10L, 20L, 30L, 50L,80L, 100L,150L, 200L(Biggest volume in China).
Single layer:1L, 2L, 3L, 5L, 10L, 20L, 30L, 50L,80L, 100L,150L, 200L, 250L
Triple layer:1L, 2L, 3L, 5L, 10L, 20L, 30L, 50L

4. Can you offer the supporting facilities?
Yes, we can offer you the vacuum, heating and cooling system as per your request.

5. what kind of payment you accept?
Normally we accept payment by T/T, PayPal, Western Union, Trade Assurance.
To protect customer's payment security, Trade Assurance is highly recommended.
If you want to know more details about lab glass reactor, please contact me and click the "here" now ~
