CE / ISO Certified 100L Explosion-proof Vacuum Rotary Evaporator/distillation Equipment

FOB Reference Price:Get Latest Price
US $16,000-20,000 / Sets | 1 Set/Sets 100L Rotary Evaporator (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Distillation
Power Source:
Electric
Process:
Rotary
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
TOPTION
Model Number:
RE-100L
Voltage:
220V 50/60Hz
Power(W):
EX 370W
Dimension(L*W*H):
1520x620x2470mm
Weight:
170kg
Certification:
ISO 9001: 2008 Certificate
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Evaporating flask:
100L
Heating power:
16KW
Vacuum degree:
0.098Mpa
Collection flask::
50L
Rotation speed:
0-120rpm/ min
Temperature control accuracy:
1℃
Bath lift down distance:
0-180mm
Bath size:
dia 700x 400H (mm)
Condenser size:
dia160x 840H, dia160x 530H
Supply Ability
Supply Ability:
10000 Set/Sets per Month 100l Rotary Evaporator
Packaging & Delivery
Packaging Details
Packing of CE / ISO Certified 100L Explosion-proof Vacuum Rotary Evaporator/distillation Equipment:
1.Wooden packing.
2.According to your requirement.
Port
Shanghai,Ningbo
Lead Time :
Within 5-7 working days after payment
Video Description
Product Description

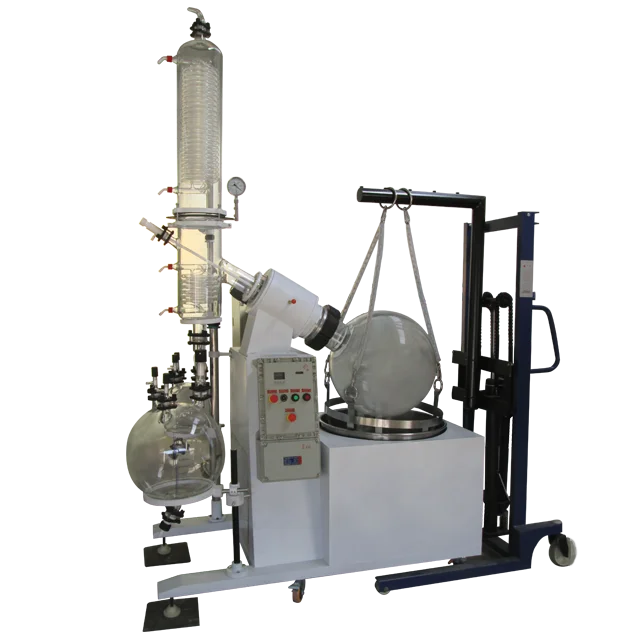

Technical Specification of 100L Explosion-proof Vacuum Rotary Evaporator

1. Voltage: 220V 50Hz for motor, 380V/60Hz for heating bath
2. Motor power: EX 370W
3. Heating power: 16KW
4. Vacuum degree: 0.098Mpa
5. Evaporation flask (rotation flask): 100L
6. Collection flask: 50L
7. Rotation speed: 0-120rpm/ min
8. Bath temperature: RT~98℃ (Water bath) / RT~170℃ (Oil bath)
9. Temperature control accuracy: 1℃
10. Bath lift down distance: 0-180mm
11. condenser size: dia160x 840H, dia160x 530H
12. bath size: dia 700x 400H (mm), about 76L
13. Dimension: 1520x620x2470mm
14. weight: 170kg

Brief Introdction of 100L Explosion-proof Vacuum Rotary Evaporator

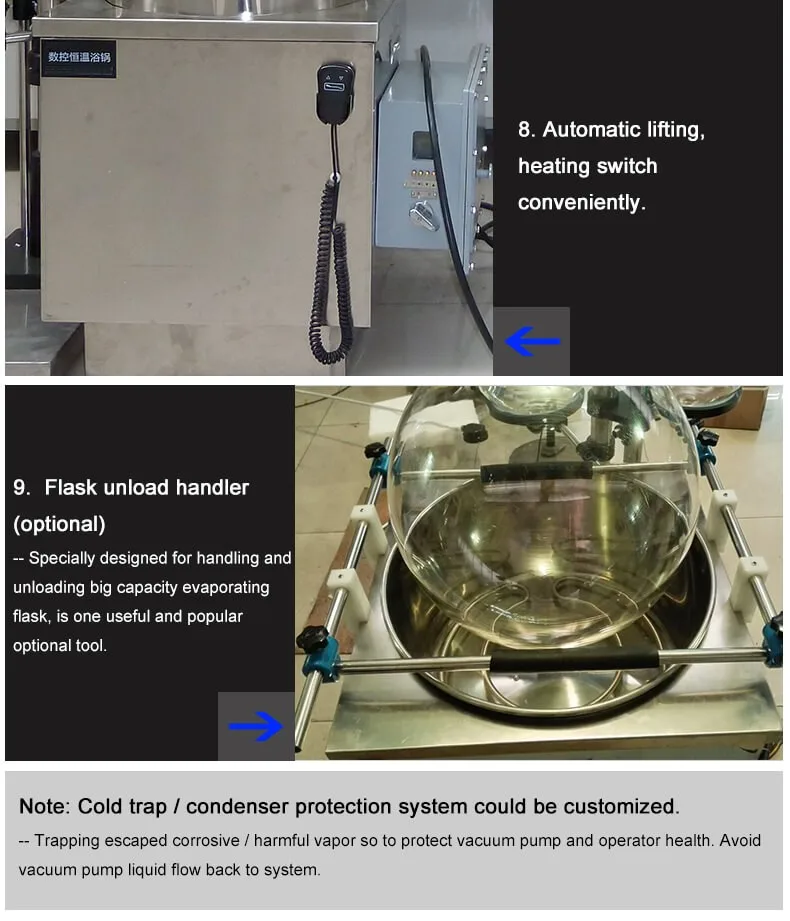

1. Motorized lift
2. Water or oil bath
3. Build in vacuum controller
4. With digital display and control

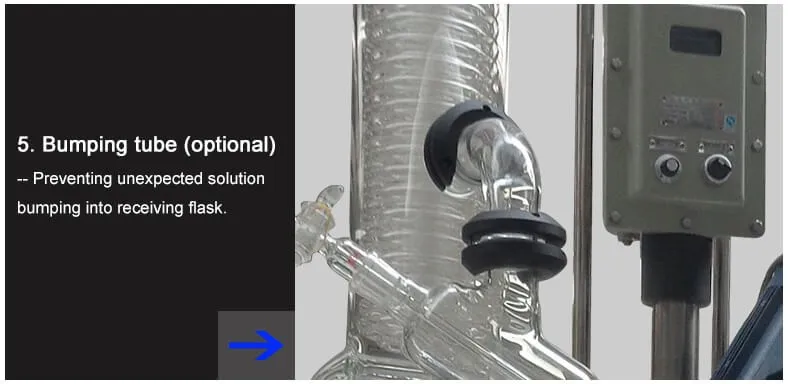

5. With vertical or diagonal condenser
6. Variable inclination angle of evaporating flask
7. Fitted and designed for controlling and communication by PC

Detailed Images

Key Feature of 100L Explosion-proof Vacuum Rotary Evaporator

1. High evaporation and recovery, conversion and use of advanced electronic speed control.

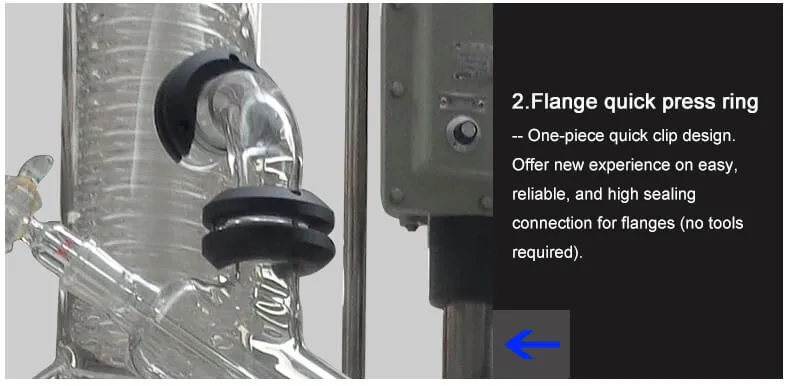

2. Collection bottles with milling port connection, easily removable, can be immersed in an ice bath.

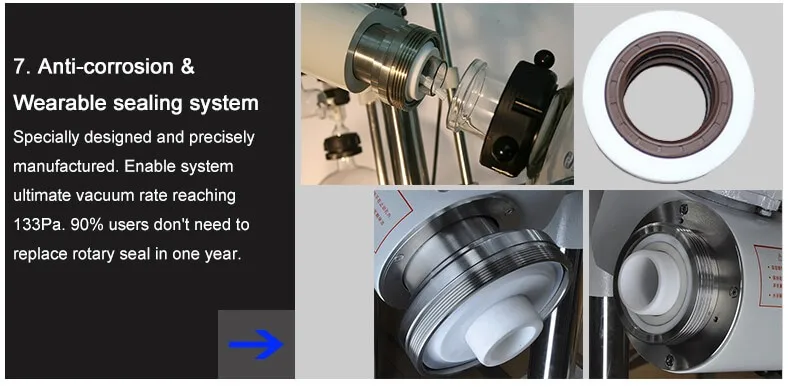

3. High temperature long- lasting sealing, dynamic sealing system,particularly good air tightness
4. Japanese technology AC induction motor, variable speed, no brush no spark.
5. Chassis, bath pot, main bar, stainless steel shaft made of high quality, attractive appearance corrosion;

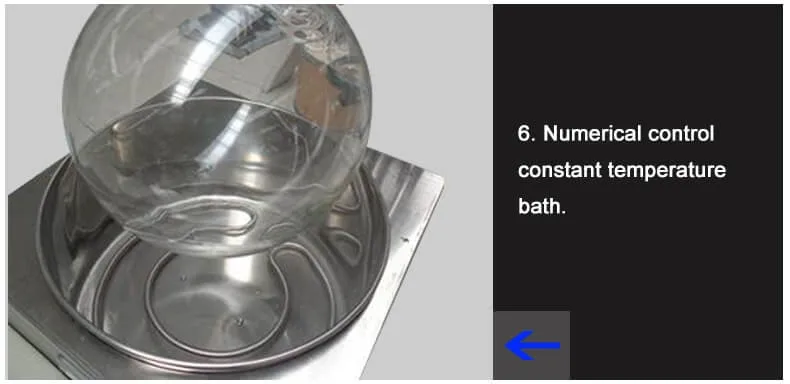

6. Intelligent temperature control, water and oil bath dual-use, more widely used.
7. Whole series modular design, scalability, easy instabllation and maintenance;

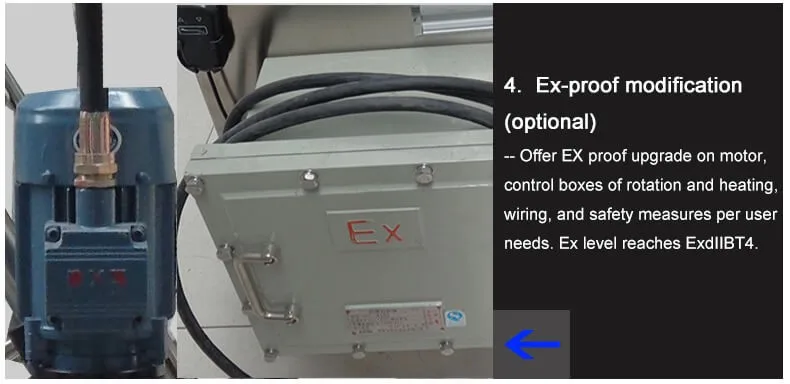

8. Explosion-proof configuration(optional)
