TOPTION 5L lab mechanical stirring glass fermenter tank

FOB Reference Price:Get Latest Price
US $14,500-16,000 / Sets | 1 Set/Sets fermenter tank (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
TOPTION
Model Number:
TPF-SJ5L
Processing Types:
Alcohol
Voltage:
220V/380V
Power(W):
Fermenting Equipment
Dimension(L*W*H):
fermenter tank
Weight:
fermenter price
Certification:
ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
TOPTION 5L lab mechanical stirring glass fermenter tank
Application:
fermenter
volume:
5L
working pressure:
0.2Mpa
Mixing patterns:
Six flat leaf
Tank material:
borosilicate glass and 316L stainless steel
Control method:
LCD
Structure type:
table, frame structure
temperature range:
RT-50 ℃
Sterilization system:
Manually
Supply Ability
Supply Ability:
3000 Set/Sets per Year fermenter tank
Packaging & Delivery
Packaging Details
wooden box
Port
zhejiang, shanghai, tianjin port, China
Lead Time :
within 10 working days after payment
Product Description

.Description for TOPTION  5L lab mechanical stirring glass fermenter tank

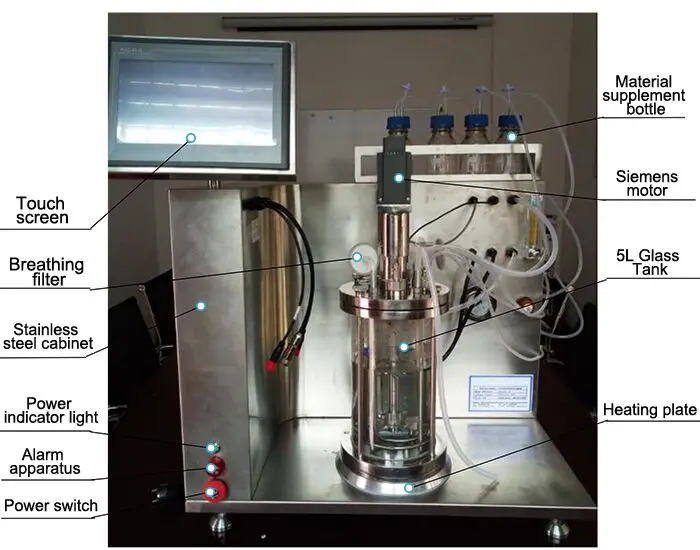

toption fermenter lab.jpg

fermenter tank.jpg







Key Features



1. Tank material adopt borosilicate glass and 316L stainless steel conbination.

2. Liquid loading coefficient: 70% - 80%.

3. Blade form: flat paddle / inclined paddle / bend paddle / arrow paddle ( support customize based on

your actual request ).

4. Structure type: table, frame structure.

5. Stirring drive mode: speed governing plate control, rotate speed 50rpm/min - 1000rpm/min, range adjustable.
6. Sterilization method: in sterilization.

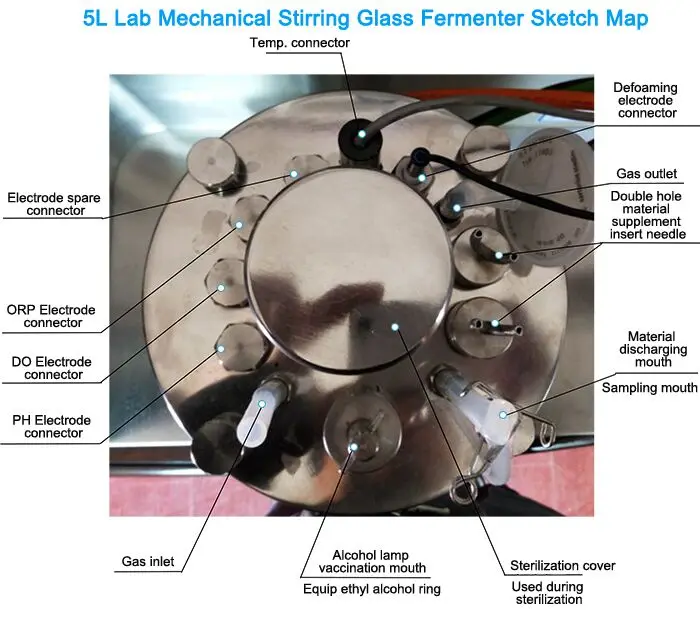

7. Standard interface: PH / DO / temperature probe port / inoculation port / foaming alarm port / acid / supplement, etc.

8. Control method: LCD touch screen operation interface.

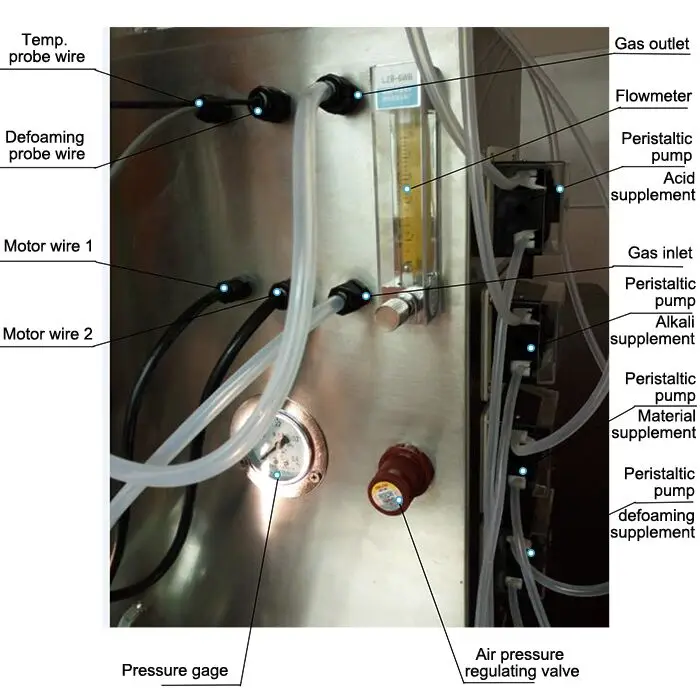

9. PLC controller: temperature, mixing speed, PH value, DO value, vacuuming, multiplexing, acid, alkali,

pressure, air volume parameters are measured in real time and automatic control.

10. Digital setting, rapid correction, measurement data display storage and printing, password management,

ect. And the communication interface can be connected with the upper machine.

11. Equipment basic characteristic: disinfection, safe and reliable. The method of inoculation is diverse and

reliable, elegant appearance and flexible operation, easy to remove and install.


fermenter lab reactor.jpgfermenter lab 01.jpg

Packaging & Shipping

Packaging: Wooden case or base on your need

Shipping:by sea, by air, by express door to door service.

Company Information

      TOPTION is professional lab solution provider,and all devoted to provide the best solutions & products for global customers,who are work in biology, chemistry, pharmaceutical, environment analysis, food, academic research, etc.



   Main products contains chemical synthesis reactor, rotary evaporator, thin-film evaporator, photochemical reactor, high  pressure reactor, freeze dryer, spray dryer, etc.



    TOPTION brand instrument has own high reputation in more than 70 countries and regions, provide technical support for tens of thousands organizations to solve problems within their research, special foruniversity, research institutes, industries, inspection agencies, etc.
