High quality Automatic lift 20L big rotary evaporator RE-5220AEx

FOB Reference Price:Get Latest Price
US $500-10,000 / Sets | 1 Set/Sets Automatic Lift Rotary Evaporator (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Distillation
Power Source:
Electric
Process:
Rotary
Place of Origin:
China (Mainland)
Brand Name:
TOPTION
Model Number:
RE-5220AEx
Voltage:
220V 50/60HZ
Power(W):
5W
Dimension(L*W*H):
1100*600*2100mm
Weight:
100KG
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Evaporating Flask:
20L/F125
Receiving Flask:
10L + 3L, bottom discharge
Condensing Surface:
1 square meter
Rotation Speed:
3-110 rpm
Max Evaporating Speed (H2O):
5L/H
Lifting Type:
Automatic lifting
Reachable Vacuum Rate:
<133Pa (1.33mbar, 1 Torr)
Bath Power:
5 kw
Staic Temp. Control Range & Wave:
RT-99(150) ±0.2 ℃
Bath Size. Capacity Material:
45*27H, 40L, SUS304
SupplyAbility
SupplyAbility:
500 Set/Sets per Month Automatic Lift Rotary Evaporator
Packaging & Delivery
Packaging Details
1.Qualified wooden case for export
2. Base on your needs
Port
Shanghai,Shenzhen,Ningbo
Lead Time :
Shipped in 7 days after payment
Product Description

RE-5220AEx High quality Automatic lift 20L big rotary evaporator

Rotary evaporator is under normal/negative pressure, with constant heating, use the different boiling point of the liquid material to get your target solvent.

This RE-5220A rotary evaporator is professional for laboratory,it adopts Continuous receiving technology,water heating bath.It is widely used in the prosess like Concentration,Refining,Separation,Crystallization,etrc.Rotary evaporator is mainly applied in Bio-chemical,Pharmarceutical&Fine-Chemical Trades.

A:99℃Automatic lifting
AD:170℃Automatic lifting
AEx:99℃Automatic lifting,Whole ex-proof system
ADEx:170℃Automatic lifting,Whole ex-proof system

Model
RE-5220AEx
Evaporating Flask(L)
20L/F125
Receiving Flask(L)
10L + 3L, bottom discharge
Condensing Surface(㎡)
1
Rotation Speed (rpm)
3-110
Max Evaporating Speed (H2O)
5L/H
Lifting Type
Automatic lifting
Reachable Vacuum Rate
<133Pa (1.33mbar, 1 Torr)
Bath Power (kw)
5
Staic Temp. Control Range & Wave (℃)
RT-99(150) ±0.2
Bath Size. Capacity Material
¢45*27H, 40L, SUS304
Power
220V, 50/60Hz
Dimensions (mm)
1100*600*2100H

* Note: Max evaporating speed is affected by operation setting and the performances and matching levels of supporting equipment.
"A"-Automatic lifting, "AD"-Automatic Lifting 150℃ Oil Bath, "AEX"-Automatic Lifting Explosion Protection.
Our factory is professional in 50ml, 1L, 2L, 3L, 5L, 10L, 20L, 50L Rotary Evaporator. Water bath or oil bath can be produced according to customers’ requests! Customized Glass Reactor also welcome here !!!

Safety Features:


Relevant Model
RE-5210A
RE-5210AD
RE-5210AEx
RE-5210ADEx
RE-5220A
RE-5220AD
RE-5220AEx
RE-5220ADEx
RE-5230A
RE-5230AD
RE-5230AEx
RE-5230ADEx
RE-5250A
RE-5250AD
RE-5250AEx
RE-5250ADEx
Over-current Protection
Have
No-spark Electronic Control
Have
Ex-proof Upgrade
Ex-proof modification on motor, rotation & heating control, lower heating power density, equip dry heat and overheat cut-off protector

Work principle

Main Features:

1.sealing performance

-- Continuous receiving technology, solvent discharge no longer need to stop evaporation process, to release and re-pump system vacuum. The technology allows real continuous work without vacuum wave, which obviously increases productivity simplifies system receiving structure and improves sealing performance.

2.Evaporation performance

-- System vacuum does not drop during discharging shift. Sample received keeps consistent quality.

3. Structure rationality

-- Easier installation and maintenance in compact tandem type structure.

-- Leakage points reduced by 50%. Ultimate system vacuum is improved further in receiving structure

Certifications
Detailed Images

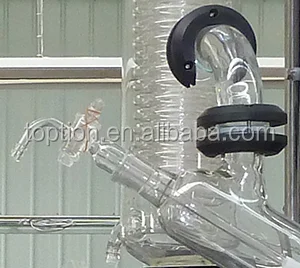

Glass charging valve

1.New structure and glass material applied, is able

to offer purely clean charging process and durable

 use experience.

2.Flange quick press ring -- One-piece quick clip design. Offer new experience on easy, reliable, and high sealing connection for flanges (no tools required).

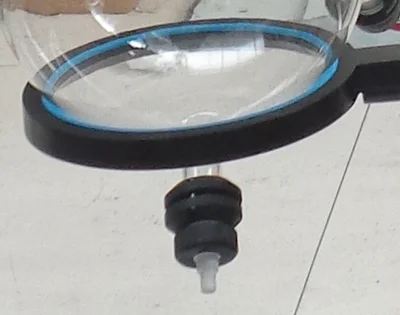

PTFE vacuum discharging valve

Cork is anti-corrosion, no vacuum degree,

 no pollution to solvent received.

Anti-corrosion & Wearable sealing system .

Specially designed and precisely manufactured. Enable system ultimate vacuum rate reaching 133Pa. 90% users don't need to replace rotary seal in one year.




Ex-proof modification (optional)

Offer EX proof upgrade on motor, control boxes of rotation and heating, wiring, and safety measures per user needs. Ex level reaches ExdIIBT4.

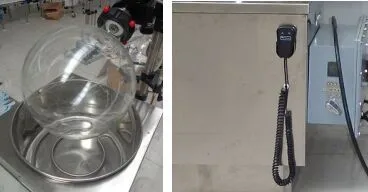

Numerical control constant temperature bath.

Automatic lifting, heating switch conveniently.

Packing & Delivery

Packing:

-Standard wooden case.
-Both neutral and customized packaging can be available.


Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own forward.

Our Service

Pre-Sales Service:

1. Inquiry and consulting support.
2. Quick response with detailed quotation
3.Confirm price, quantity, shipment, lead time and payment terms)
4.Make order and sealed PI. (Trade assuranceorder is recommend to new clients for securing payment)


After-Sales Service:
1. One year warranty for the products described here.
2. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
3.Reliable quality and thoughtful after-sale service: If you encounter problems when using our products, please contact us by telephone or e-mail, we will be ready to provide consulting, maintenance and other services immediately.

FAQ

Q: What is your MOQ?
A:1 set.

Q: How long is your delivery time?
A: Generally it is within 3 working days after receiving the payment if the goods are in stock. Or it is 5-10 working days if the goods are not in stock, depending on order quantity.

Q: How to choose suitable equipment ?
A:tell us your work flow and requirements ,then we will recommend you suitable equipment according to yourrequirements, application experience and feedback from our clients.

Q: How to solve the equipment trouble during using ?
A: Please email us about problem with pictures or a small video will be better,we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.

For more details about lab instruments, please feel free to contact us~
