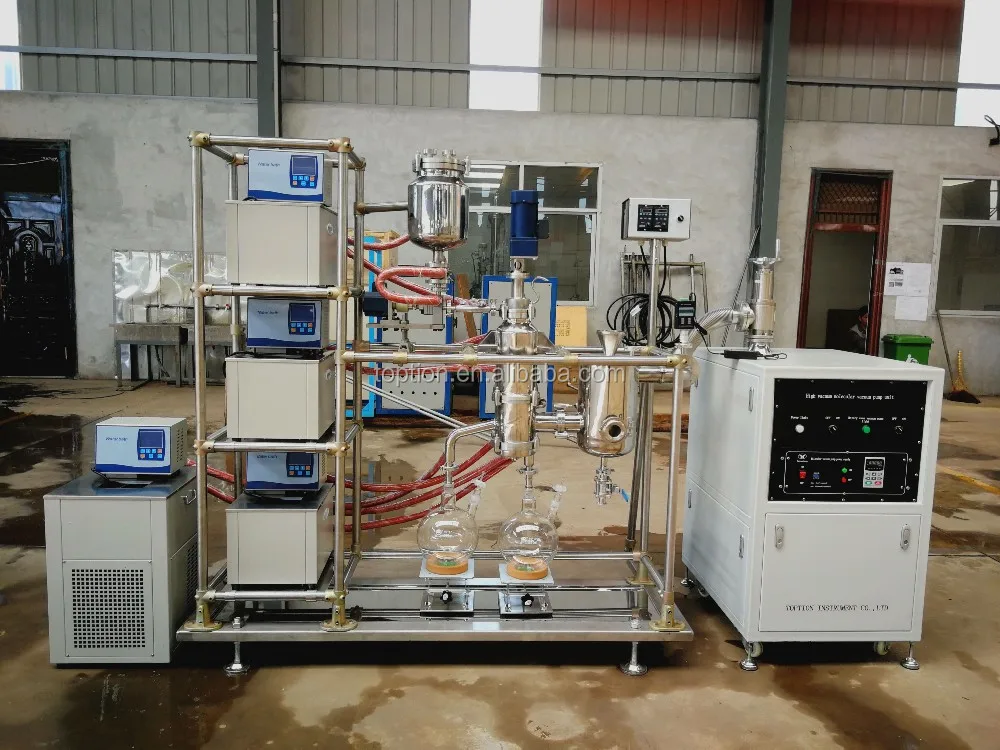

Crude Oil Extraction Short Path Molecular Distillation Equipment

  • >=1 Sets
    $33,000.00
Application:
Distillation
Model Number:
MDS-6A,B,C MDS-10A,B,C molecular distillation Short Path Molecular Distillation Equipment
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
molecular distillation (Min. Order: 1 Sets)
Essential Oil Extraction Short Path Molecular Dist (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Power Source:
Electric
Process:
Wiped Film
Place of Origin:
Shaanxi, China
Brand Name:
TOPTION
Voltage:
220V 110V 380V
Power(W):
5KW
Dimension(L*W*H):
As design
Weight:
As design
Certification:
ISO CE
Warranty:
12 month
After-sales Service Provided:
Video technical support, Engineers available to service machinery overseas
Product name:
Crude Oil Extraction Short Path Molecular Distillation Equipment
Key word:
Short Path Molecular Distillation Equipment
Type:
Essential Oil ExtractionDistillation Equipment
Evaporator area:
0.1m2
Condenser area:
0.2m2
Capacity:
3~5L/h
Vacuum degree:
10pa, 1Pa, 0.1Pa option
Charging method:
High precision gear pump
Pipeline:
jaketed pipeline
Supply Ability
Supply Ability:
50 Set/Sets per Month Essential Oil Extraction Short Path Molecular Distillation Equip
Packaging & Delivery
Packaging Details
Packing of Crude Oil Purification Machine Short Path Molecular Distillation Equipment:
1.Standard wooden packing.
2.According to customer need.
Port
Shanghai Shenzhen Ningbo Tianjin
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Video Description
Product Description

Advantages of this design:

1.All pipeline heat preservation
- All pipeline has jacket heat preservation, when the melting point of material is higher than room temperature, will not congeal in pipeline.
- Different heat preservation temperature:
Generally, the heavy and light melting point and fluidity of the material after distillation are different, the heavy melting point is high, its liquidity is poor, the light quality melting point is relatively low, and its fluidity is good.
Our equipment has two sets of heating circulating water tanks, which can control different temperatures respectively.
The heat preservation temperature of heavy is higher, to improve its liquidity. The heat preservation temperature of light is relatively lower, so that the heating temperature of the material should be as low as possible, so as to reduce the thermal effect of the heat-sensitive material.

2.Dual external cold trap design
Dual cold trap form introduction:
-Refrigerator cooling (process cold trap) + liquid nitrogen cooling (protect the cold trap, protect vacuum pump).
-Water cooling (process cold trap) + refrigerator cooling (protect the cold trap, protect vacuum pump).
-Dual cold trap configuration can be used as a thin film evaporator to concentrate the solvent.
Dual cold trap form advantages:
-Equipped external condenser which has 1 square meter heat exchange area, internal connect low temperature cooling liquid cooling, make this equipment has the function of the molecular distillation and thin film evaporation at the same time. Though only 1 set equipment to complete the multistage effect of film degassing and molecular distillation separation.
-Equipped liquid nitrogen cold trap, temperature could reach 200 degree centigrade, can full collection of the light materials. The materials you charging to do research and materials you collected can achieve the quality balance.
-After adding the liquid nitrogen cold trap and collect the light completely, no light material enters into the vacuum oil pump, and the vacuum keep stable, the replacement cycle of vacuum pump oil is greatly extended.

3 Why choose dual cold trap
-Because of the degassing during the sample pretreatment, the light components are less, so must be condensed and then distilled.
-When concentrated, due to the large evaporation capacity, the built-in condenser can not meet the requirements.

Model
Capacity L/h
Evaporator area (m2)
Charging method
Material receive method
Equipment height(mm)
MDS-6A
1-3
0.06
Pressure different needle valve adjustable
Glass receiving flask
2000
MDS-6B
1~3
0.06
precision gear pump
Glass receiving flask
2200
MDS-6C
1~3
1~3
precision gear pump
High precision gear pump
2350
MDS-10A
5~12
0.1
Pressure different needle valve adjustable
Glass receiving flask
2350
MDS-10B
5~12
0.1
High precision gear pump
Glass receiving flask
2350
MDS-10C
5~12
0.1
High precision gear pump
High precision gear pump
2350
MDS-10A
10-25
0.2
Pressure different needle valve adjustable
Glass receiving flask
2650
MDS-20B
10-25
0.2
High precision gear pump
Glass receiving flask
2650
MDS-20C
10-25
0.2
High precision gear pump
High precision gear pump
2650
MDS-30B
18-30
0.3
High precision gear pump
Stainless steel storage
3100
MDS-30C
18-30
0.3
High precision gear pump
High precision gear pump
3100
MDS-50B
20-60
0.5
High precision gear pump
Stainless steel storage
3300
MDS-50C
20-60
0.5
High precision gear pump
High precision gear pump
3300

Applied productION:

Applied industry
Examples of the species of refined products
Food
Monoglycerides, palm oil, tocopherol, fish oil, rice bran oil, fatty acids and their derivatives, dienoic acid,Vegetable oil, diglycerides, glutamate, cream, lactic acid, linseed oil, dimer acid,etc.
Pharmaceutical
Acyl chloride, amino acid ester, vitamin E, glucose derivative, terpene ester, natural or synthetic vitamin, beta-carotene, gingerol, capsicum pigment,etc.
Chemistry
Advanced alcohols, glycerides, herbicides, halogenated alkanes, pesticides, silicone oils, waxes, fatty acids, etc.
Plastic industry
Epoxy resin, epoxidated oil, isocyanate, plasticizer, stabilizer, polyether and polyether polyol,etc.
Petroleum industry
Base oil, bright oil, lubricating oil, vaseline, fir oil, residual tar, etc.
Cosmetic industry
Lanolin fatty acid, lanol, including algae, roots of plants, extract of capsicum, high fat ester, turmeric essential oil, dry ginger essential oil,etc.

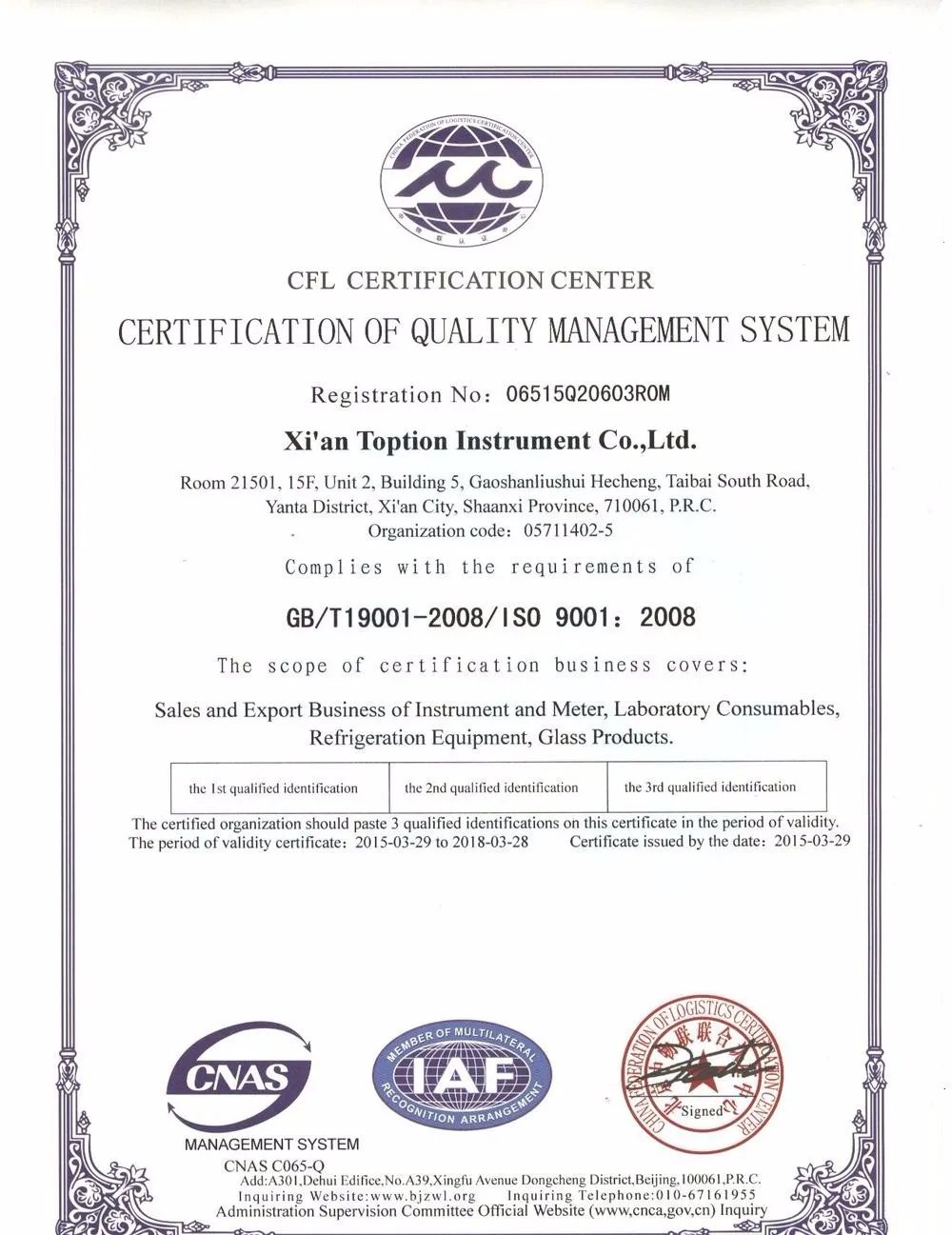

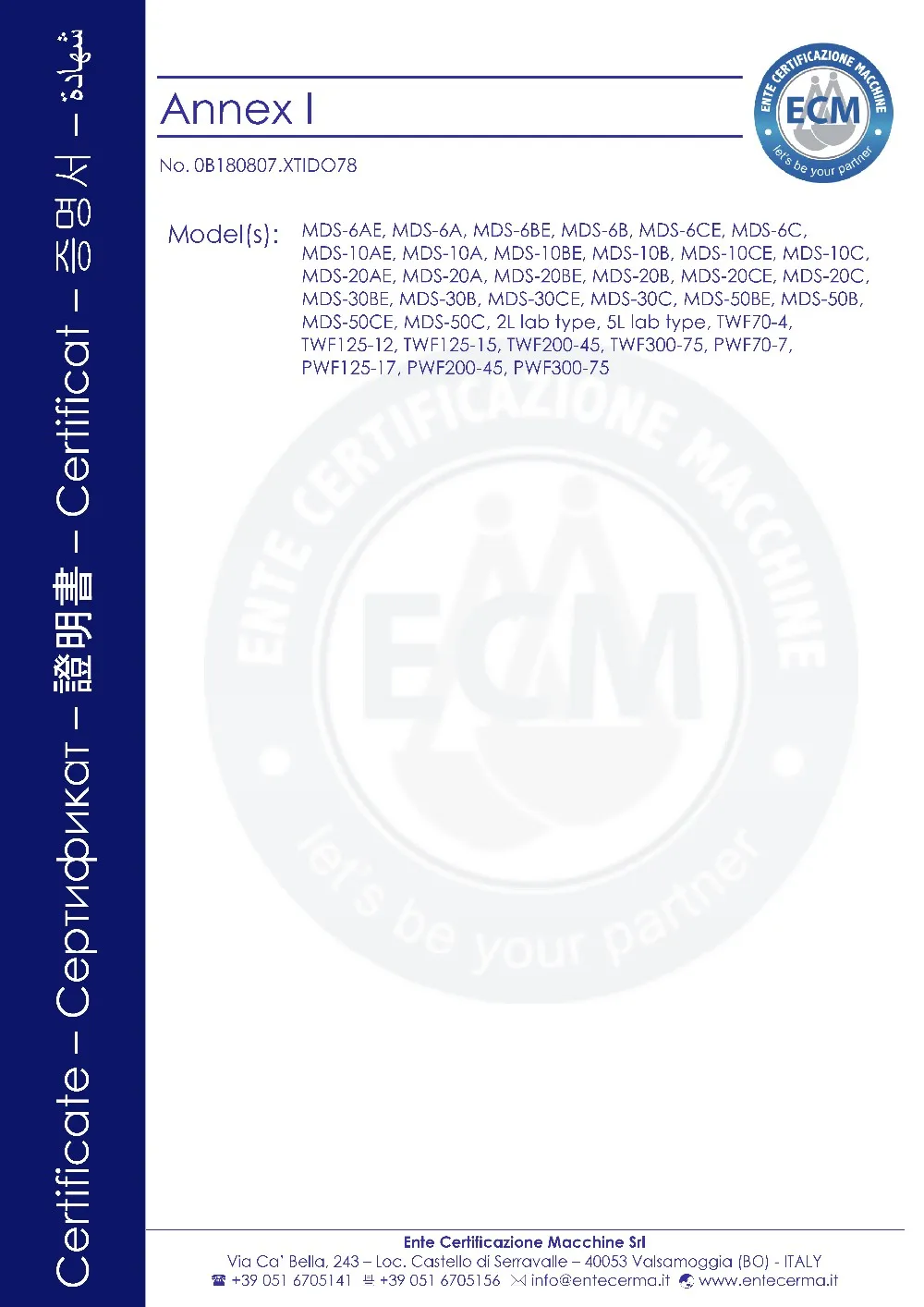

Certifications
Detailed Images

Machine Parts

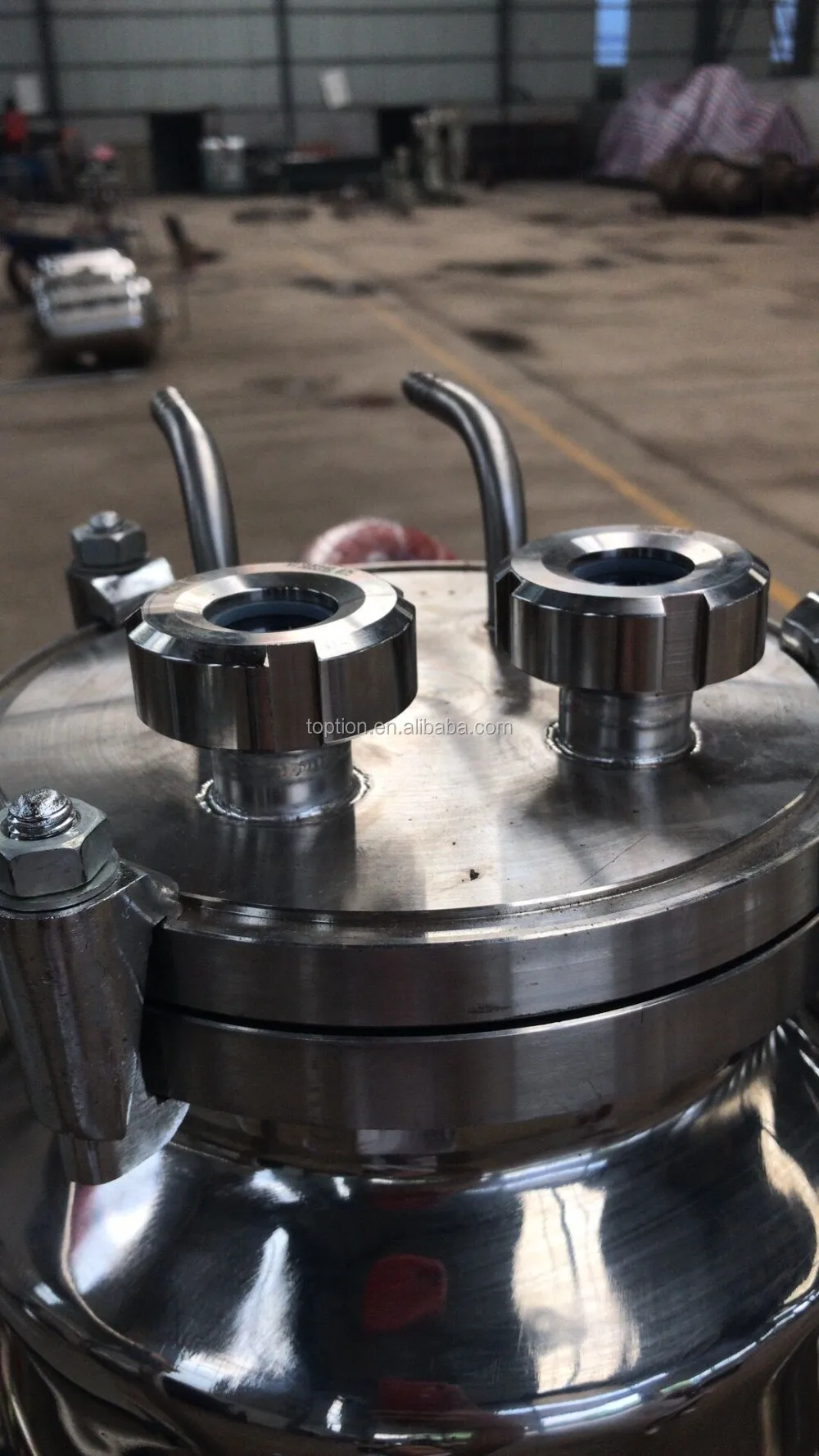

Name: Jacketed feeding tank

Brand:TOPTION

Original: China

Winndow on the feed tank  is very useful for checking the feeding material

Main Features

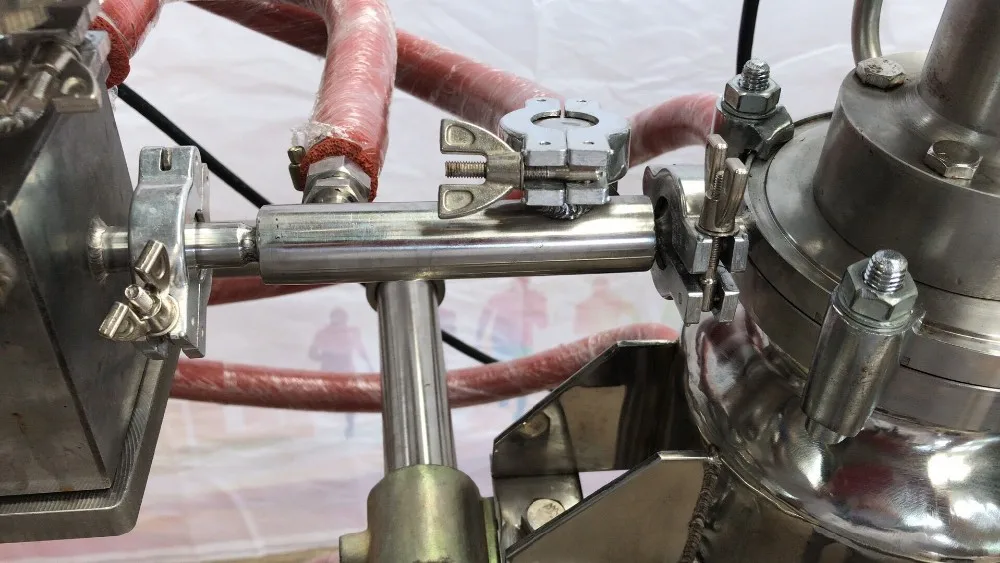

Name: Jacketed Pipeline
Brand: TOPTION
Original: China
Full jacketed pipeline with quick open flange

Machine Parts

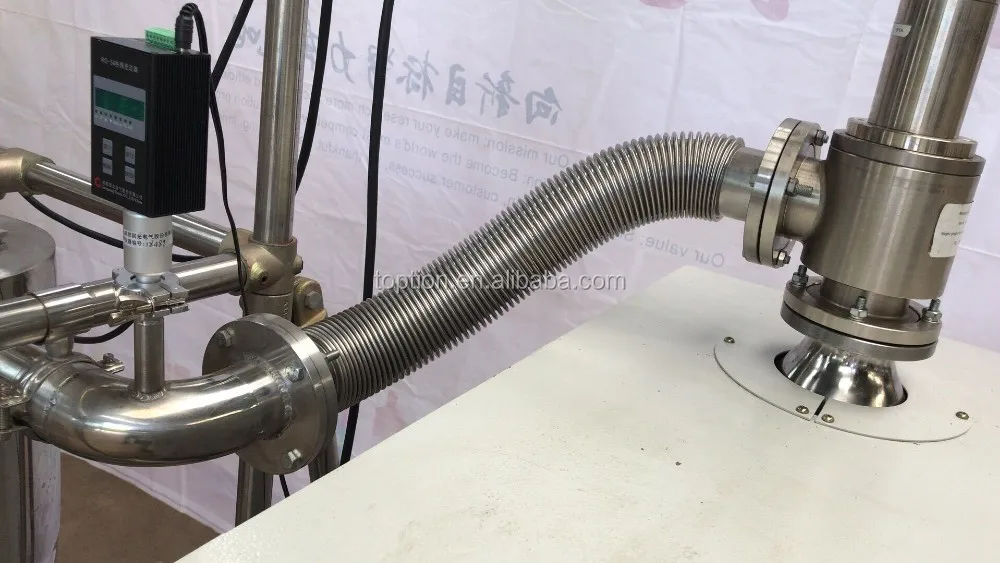

Name: Digital Vacuum meter
Brand: TOPTION
Original: China
Bendable vacuum tube with high precision vacuum meter

Main Features

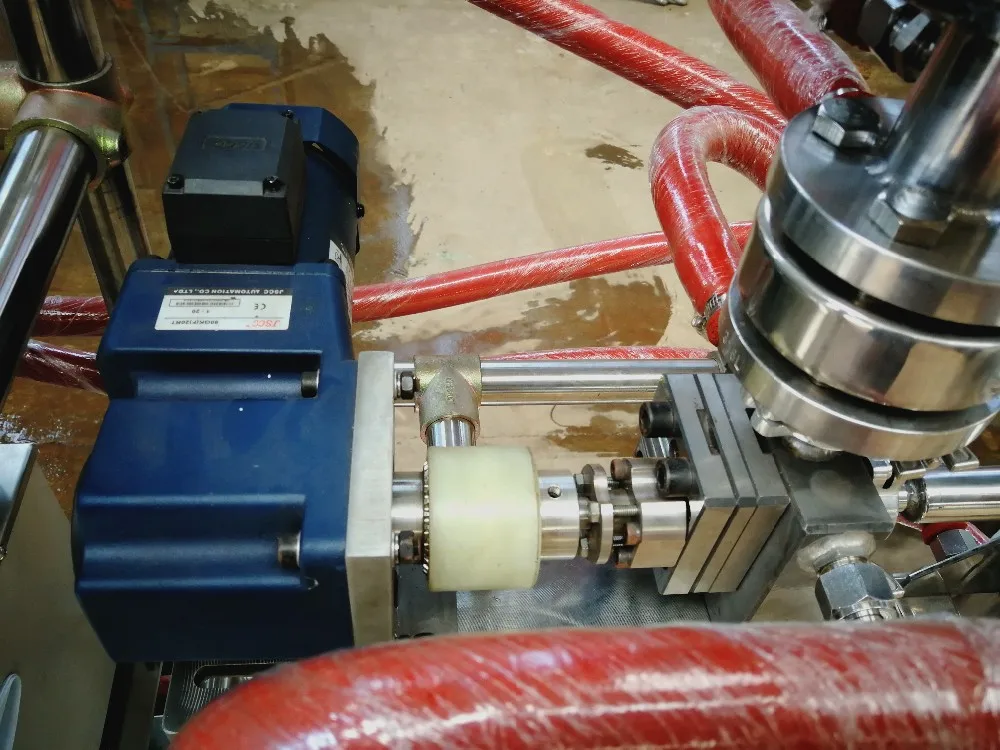

Name: Continuous discharging gear pump
Brand: TOPTION
Original: China
High precision gear pump can help feeding material

Main Feature.

Name: Integrated controller
Brand: TOPTION
Original: China
Integrated controller

Main Feature.

Name: Pipe insulation

Brand: TOPTION

Original: China

Pipe insulation

Main Feature.

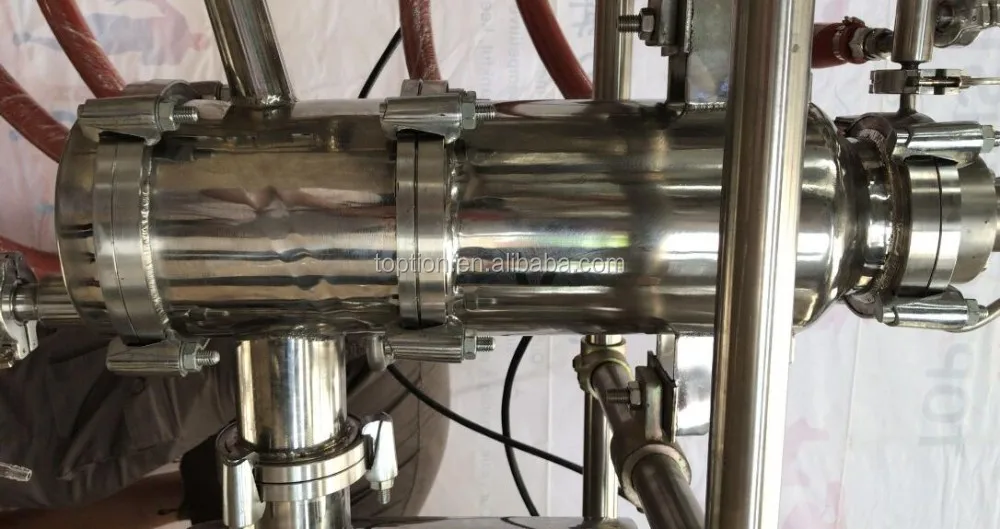

Name: Detachable evaporator

Brand: TOPTION

Original: China

Detachable evaporator is very useful for Detachable  and c cleaning , also have the windows for checking the  evaporator process

Our Service
Packing & Delivery
Packaging
Size
163 (L) * 256 (W) * 2200 (D)
Weight
1.8T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Our Company

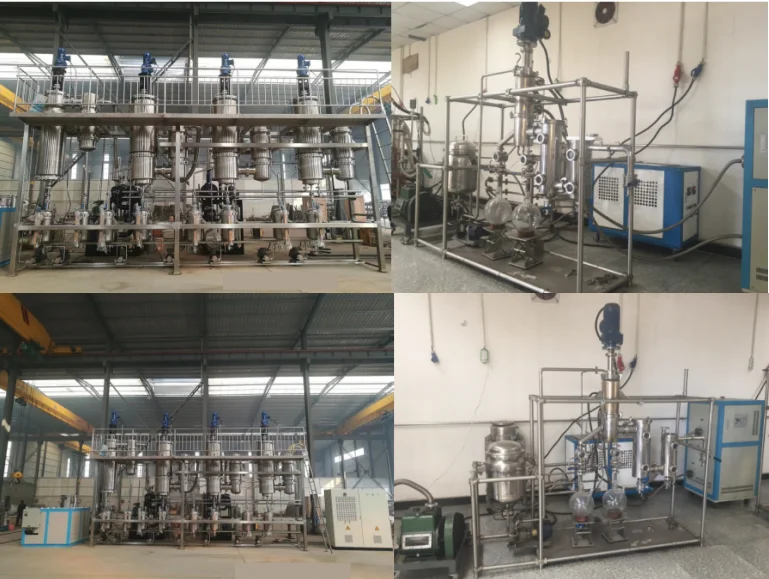

Our factory are from Xi'an Institute of Modern Chemistry, Institute of 204, China Ordnance Industry, and research the short path distillation from UIC Germany brand in 1999 year,since the equipment cost is very expensive, our engineer developed on the basis of analyzing foreign equipment and visited the UIC and VTA factory in Germany in 2004 year, then our company decide to produce this unit from 2006 year.

T
he core of the company's leadership and technical backbone consists of senior experts or professional engineers in chemical synthesis, chemical engineering and technology, and chemical machinery.

Long-term cooperation with the world's leading molecular distillation equipment manufacturer Germany VTA Germany UIC, is the German VTA, UIC supporting suppliers in China and the brothers and partners of after-sales service. A comprehensive grasp of the design and manufacturing technical requirements of the world's advanced molecular distillation equipment, in the domestic, production of laboratory and pilot equipment is in a leading position.

Approval the ISO9001 quality system certification, continuous improvement, quality first, service in place is our business purpose, and established a sound quality management and after-sales service system. Our company's products have passed CE certification and are exported to many countries in Europe and America.

FAQ

Molecular distillation from TOPTION COMPANY

1.Q:Are you trading company or manufacturer?

We are professional manufacture of lab equipment and we have our own factory. And welcome to visit our factory.


2.Q:What's the processing capacity do you have?

We can offer you 1~3L/H, 5~12L/H, 10~25L/H, 18-30L/H, 20~60L/H.


3.Q: Can you do OEM service ?

A: We can provide the specific products needed around the world at significantly lower costs.

TOPTION also offers a Private Labeling Program to provide high quality lab supplies at lower prices.

If you need further information regarding our OEM or Private Label programs, please contact us freely.


4.Q: How long is your delivery time?

A: Usually, delivery time is 30-45 days after receiving your payment.


5.Q: How about your quality warranty ?

A: Normally all TOPTION products are supplied with a warranty of 12 Months from the date of shipment.

We have very strict inspection, the instruments which you received is high-quality and reliable.

If there's any error, we'll provide you the on line solution with in 12 hours. We'll provide you the spare parts and the shipping cost totally free.

If the problem was caused by the instrument quality, and cannot be repaired, we'll ship you the new one.


6. Q:Can we visit your factory?

A: Welcome visit our factory.


7. Q:If we want to customize molecular distillation , is it available?

Sure,we are experienced at this,we have professional technical team, we can design the drawing according to your requirements and then produce it.
