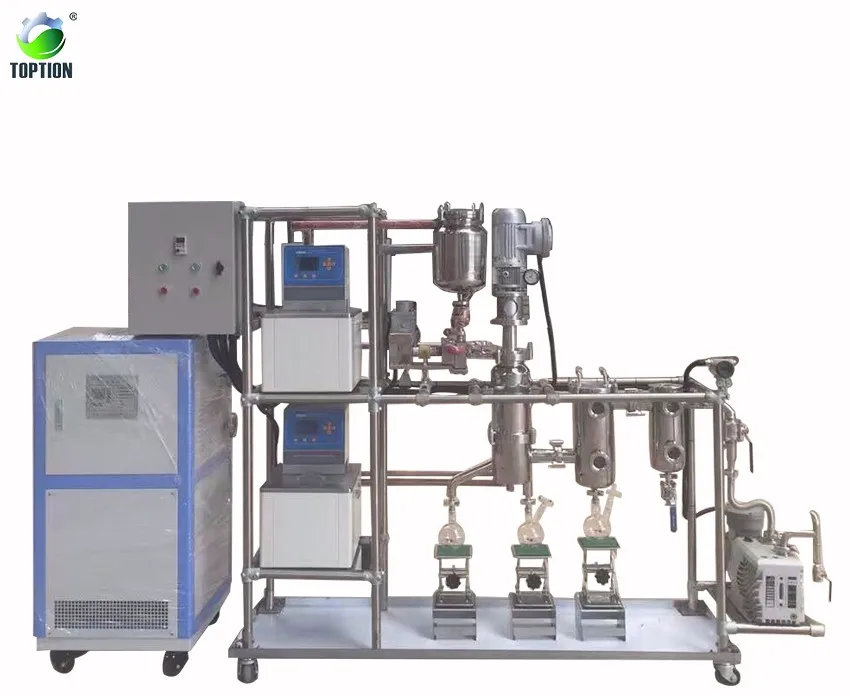

High quality Vacuum short path distillation with low vacuum supplier

FOB Reference Price:Get Latest Price
$19,000.00 - $61,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
MDS-6A
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Distillation Equipment
Product Type:
Short Path Distillation Equipment
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
TOPTION
Voltage:
220V/ 380V
Power(W):
120w
Weight:
200kg
Dimension(L*W*H):
2160*670*2150mm
Certification:
CE ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Type of molecular distillation:
MDS-6A Short-path Molecular Distillation
Capacity:
1-3L/h
Maximum distillation temperature:
300 °C
Evaporation surface:
0.06 m2
Surface of internal condenser:
0.1 m2
Minimum achievable operating pressure:
< 0.001mbar with rotary vane pump and oil
Standard feed vessel:
Standard feed vessel
Material receive method:
Glass receiving flask
Supply Ability
Supply Ability:
3000 Set/Sets per Year
Packaging & Delivery
Packaging Details
with standard wooden box or according to your requirement
Port
shanghai/ningbo/shenzhen
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Video Description
Product Description

Welcome to Our Toption Factory

Preferable alternative to short path distillation kits: much shorter residence time, lower processing temperature, capable of continuous operation, and available as a plug-and-play turnkey solution.

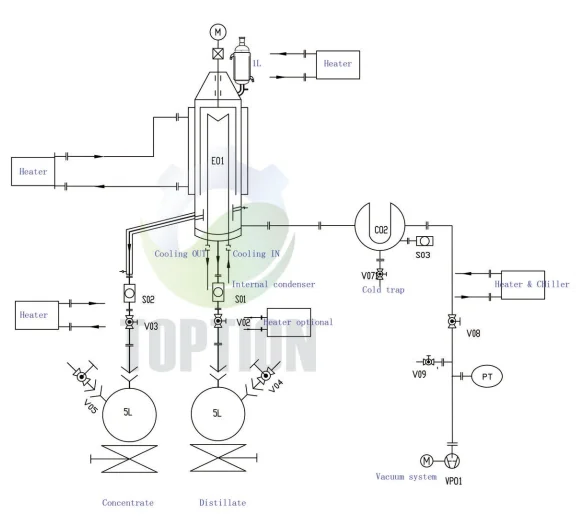

A complete short path distillation apparatus set should include:

1. Short path evaporator.                               2. Heating system.
3. Material charging system.                           4. Cooling system.
5. Vacuum system.                                        6. Material collection unit.



Application industry

1.Thermal separation of heat sensitive chemical compounds.
2.The purification of organic synthetic material.
3.The separation of effective components from the biological extracting solution.
4.The recycling of industrial waste.
5.Remove toxic substances in the food industry.
6.The organic compounds' decoloring, and eliminate the unusual smell.





Specification

Model

Evaporator area m2

Capacity L/h

Standard  feed vessel

Charge pump flow capacity

L/H

Absorption pump flow capacity L/H

Collection tank capacity

Equipment height(mm)

MDS-6A

0.06

1~3

1L Jacketed layer

0

0

5L*2

2000

MDS-6B

0.06

1~3

3L Jacketed layer

3-15

0

5L*2

2200

MDS-6C

0.06

1~3

3L Jacketed layer

3-15

3-15

0

2200

MDS-10A

0.1

5~12

10L Jacketed layer

0

0

5L*2

2350

MDS-10B

0.1

5~12

10L Jacketed layer

3-15

0

5L

2350

MDS-10C

0.1

5~12

10L Jacketed layer

3-15

3-15

0

2100

MDS-20A

0.2

10~25

20L Jacketed layer

0

0

30L Jacketed layer

2650

MDS-20B

0.2

10~25

20L Jacketed layer

5-25

0

30L Jacketed layer

2650

MDS-20C

0.2

10~25

20L Jacketed layer

5-25

5-25

30L Jacketed layer

2650

MDS30B

0.3

18-30

20L Jacketed layer

5-30

0

30L*2

3100

MDS30C

0.3

18-30

20L Jacketed layer

5-30

5-30

0

3000

MDS-50B

0.5

20~60

20L Jacketed layer

20-80

0

50L Jacketed layer

3300

MDS-50C

0.5

20~60

20L Jacketed layer

20-80

15-60

50L Jacketed layer

3100

solutions(A,B C model) for different needs



1.A model --- Standard molecular distillation advantage

1).Economical and practical.
2).No solidification,the feeding tank and all tube parts are designed as a double layer insulation.
3).Disadvantages: For redistillation separation after multiple cycles, you must stop all the work of the system, take the sample out of the collection bottle and pour it into the feed tank.



2.B model ---Top configuration molecular distillation advantage
1).Precision gear pump can precisely control the feeding amount, and it can be set in the system, so it is not necessary for people to keep an eye on the equipment.
2).Applicable in research and batch production.




Feature

1.All pipeline heat preservation

- All pipeline has jacket heat preservation
- Different heat preservation temperature



2.Can upgrade custom dual condensation cold trap design.



3.High precision gear pump

From the normal pressure to the negative pressure environment, the material is transported stably, and the flow rate does not change with the pressure difference.

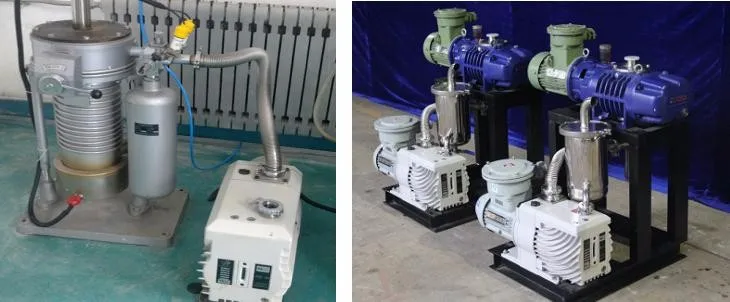

4.High quality imported vacuum pumpThe rotary vane vacuum pump used by the Korea Goodwin (Beijing) brand has low noise and stable performance.



5.Professional refrigeration heater

-Temperature range room temperature to 300 °C, accuracy 0.1 °C.

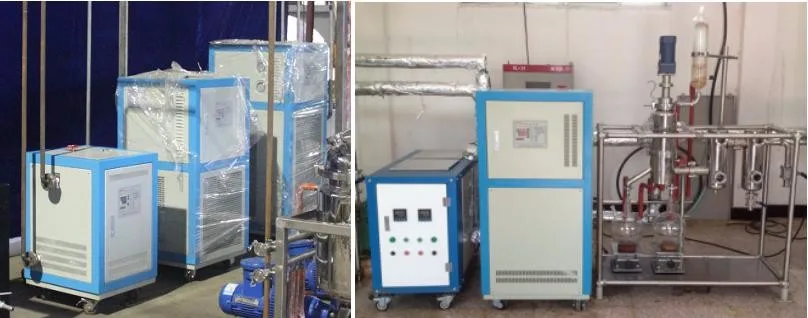

Matching Machine

This matching machine is only applicable to molecular distillation processing capacity is 1-3L/h.


Main Accessories

Packing & Delivery


1.Packing method: Standard export fumigation wooden box.



2.Shipping method: By Express door to door, or by ship, based on customer choice.

1)If delivery goods by Express, door to door service, about 5-7 working days can reach.
2)If by air, delivery goods to your airport, within 5 working days can reach destination airport.
3)If by sea, delivery goods to your local seaport, specific days and cost is based on your seaport name.



3.Warranty: Unless otherwise specified, our products are covered by a 1-year warranty from the date of purchase. We will replace any failed components at no charge to the customers for parts or shipping.



Our Company


Toption Instrument Instrument Co., Ltd is a famous manufacturer of lab equipment, located in the central china. We specialized in rotary evaporator,  glass reactor, short path distiller,  and so on.



Related Products




               Glass Reactor                       Glass Vacuum Filter            Ultrasonic Homogenizer

FAQ

1.Q:What's the processing capacity do you have?
We can offer you 1~200L/H
2. Q:If we want to customize molecular distillation, is it available?
Sure,we are experienced at this,we have professional technical team, we can design the drawing according to your requirements and then produce it.

3.Q: How long is your delivery time?
A: Usually, delivery time is 30-45 days after receiving your payment.
4.Q: How about your quality warranty ?
A: 1)Normally all TOPTION products are supplied with a warranty of 12 Months from the date of shipment.
2)We have very strict inspection, the instruments which you received is high-quality and reliable.
