5L Chemical Jacketed Glass Reactor Equipment

FOB Reference Price:Get Latest Price
US $800-6,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
3000 Set/Sets per Year
Port:
Zhejiang / Shanghai /Tianjin Port
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Automatic Grade:
Semi-Automatic
Type:
Reaction Kettle
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
TOPTION
Model Number:
TOPT-5L
Voltage:
220V
Power(W):
90W
Weight:
20kG
Certification:
ISO9001
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
5L Chemical Jacketed Glass Reactor Equipment
Model:
TOPT-5L
Motor power:
90W
speed:
100-1300 r/min
stirring torque:
5000g.cm
opening:
4 standard opening
customized mode:
can design and produce base on your needs
MOQ:
1 sets
Delivery:
by sea or by air
Packing:
standard safe wooden packing or base on your needs
Packaging & Delivery
Packaging Details
standard packing as export requests
Delivery Time
within 7 working days

                                                      5L Chemical Jacketed Glass Reactor Equipment



description of 5L Chemical Jacketed Glass Reactor Equipment
Double glass reactor main sealing parts pure PTFE material, guarantee absolute vacuum system.
Double glass reactor double glass design, inner into reaction menstruum do stirring reaction, interlayer can pass different cold sources (cryoprotectants, hot water or hot oil) do cycle heating or cooling reaction. Setting thermostat conditions, in confined glass reactor, can use require atmospheric or negative pressure conditions conducted stirring response and do reaction solution reflux and distillation is modern Fine Chemical Factory, biopharmaceuticals
and new materials synthesized ideal test production equipment.



Key Features of 5L Chemical Jacketed Glass Reactor Equipment:

1. Double glass reactor using VVVF, AC Induction Motor. Speed constant, no brush, no sparks, security staTPe, continuous working.
2. Complete glass reactor adopts GG17 high borosilicate glass production good chemical, physical properties.
3. Glass interlayer Interface communication on hot oil through cycle do Heating Reaction, Tung on cryoprotectants can be hypothermia reaction.
4. Can normal temperature reaction, pass last tap namely quickly will reflect heat away.
5. Decentralization material mouth with flange mouth and PTFE valve, container no dead corner detachaTPe easy solid materials outfeed.
6. 5 reactor lid, large mouth design easy clean standard mouth socket selectaTPe assemTPy reflux, distillation synthesis device



Technical parameters of Hot Chemical Jacketed Glass Reactor Equipment

type



volume

(L)

Motor power

(W)

Speed

(r/min)



Stirring torque(1300r/min)

Inside/outside tube diameter

(mm)

Reactor vessel cover relevant opening size

center

left

right

later

before

TOPT-5L

5

90

100-1300



5000g.cm

200*230

50#

29#

24#

24#

19#

TOPT -3L

3

90

5000g.cm

200*230

50#

29#

24#

----

19#

TOPT -2L

2

90

5000g.cm

150*180

50#

29#

24#

----

14#

TOPT -1L

1

40

2400.g.cm

150*180

50#

29#

24#

----

14#







Welcome to Toption Instrument Co.,Ltd !

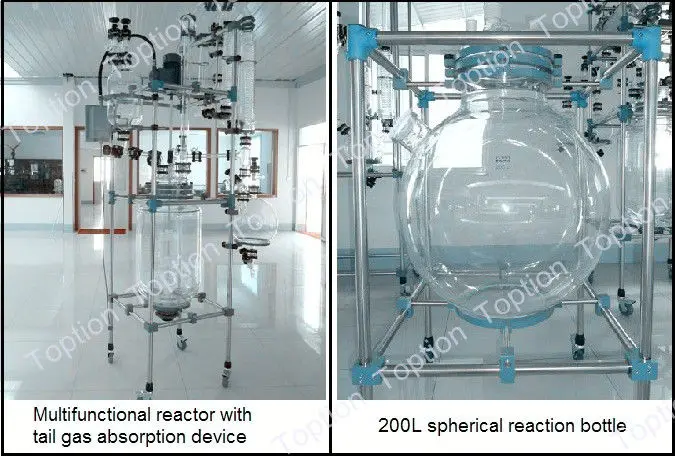

We are professional in 1L, 2L, 3L, 5L, 10L, 20L, 30L, 50L, 100L, 150L, 200L Glass Reactor for several years.



Customized products are also welcome, thank you !
